Seltech BOX1-18082-2B100
- Part No.:
- BOX1-18082-2B100
- Manufacturer:
- Seltech
- Category:
- Speakers
- Package:
- Datasheet:
-
BOX1-18082-2B100.pdf
- Description:
- SPEAKER 8OHM 800MW TOP PORT 72DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BOX1-18082-2B100 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Seltech
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- Technology:
- Magnetic
- Type:
- General Purpose, Enclosure Included
- Frequency Range:
- 900 Hz ~ 10 kHz
- Frequency - Self Resonant:
- 900Hz
- Impedance:
- 8 Ohms
- Efficiency - dBA:
- 72.00
- Efficiency - Testing:
- 1W/1M
- Efficiency - Type:
- Sensitivity
- Power - Rated:
- 800 mW
- Power - Max:
- 1 W
- Port Location:
- Top
- Shape:
- Rectangular
- Material - Cone:
- Polyetheretherketone (PEEK)
- Material - Magnet:
- Nd-Fe-B
- Ingress Protection:
- -
- Ratings:
- -
- Termination:
- Wire Leads
- Size / Dimension:
- 1.575" L x 0.472" W (40.00mm x 12.00mm)
| Image |  |
 |
 |
|
 |

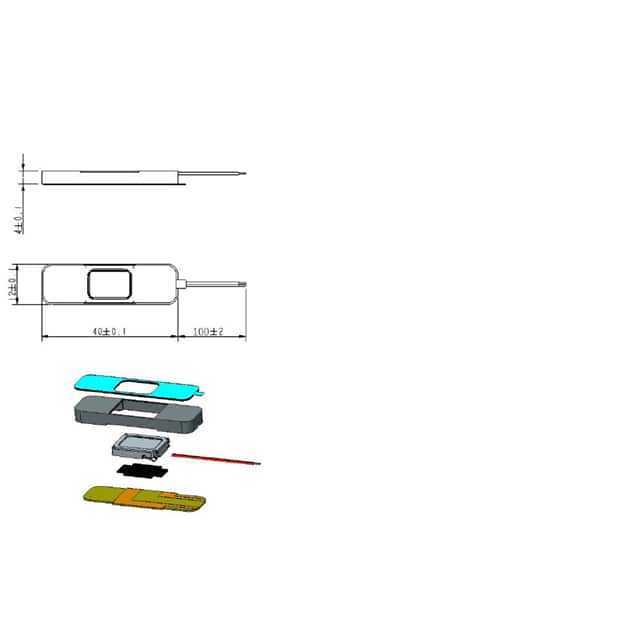

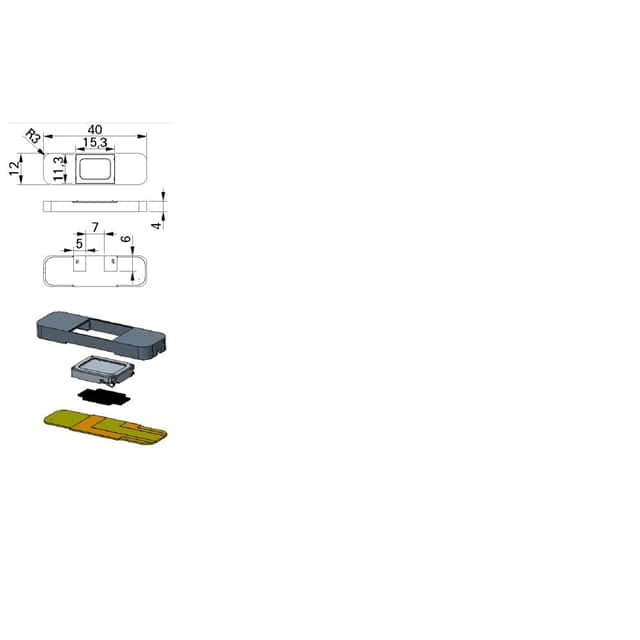

| Part Number | BOX1-15121-L | BOX1-18082-7SP | BOX1-18082-2B100GDA | BOX1-18082-10C | BOX1-18082-2B100 |
| Manufacturer | Seltech | Seltech | Seltech | Seltech | Seltech |
| Series | - | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Technology | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
| Type | General Purpose | General Purpose, Enclosure Included | General Purpose, Enclosure Included | General Purpose | General Purpose, Enclosure Included |
| Frequency Range | 750 Hz ~ 20 kHz | 900 Hz ~ 10 kHz | 900 Hz ~ 10 kHz | 900 Hz ~ 15000 Hz | 900 Hz ~ 10 kHz |
| Frequency - Self Resonant | 750Hz | 900Hz | 900Hz | 900Hz | 900Hz |
| Impedance | 8 Ohms | 8 Ohms | 8 Ohms | 6 Ohms | 8 Ohms |
| Efficiency - dBA | 73.00 | 72.00 | 72.00 | 72.00 | 72.00 |
| Efficiency - Testing | 1W/1m | 1W/1M | 1W/1M | 1W/1m | 1W/1M |
| Efficiency - Type | Sensitivity | Sensitivity | Sensitivity | Sensitivity | Sensitivity |
| Power - Rated | 600 mW | 800 mW | 800 mW | 700 mW | 800 mW |
| Power - Max | 1 W | 1 W | 1 W | 1.2 W | 1 W |
| Port Location | Top | Top | Top | Top | Top |
| Shape | Rectangular | Rectangular | Rectangular | Rectangular | Rectangular |
| Material - Cone | - | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) | - | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B | Nd-Fe-B | Nd-Fe-B | Nd-Fe-B | Nd-Fe-B |
| Ingress Protection | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Termination | Wire Leads with Connector | Solder Pads | Wire Leads | Wire Leads with Connector | Wire Leads |
| Size / Dimension | 0.787" L x 0.591" W (20.00mm x 15.00mm) | 1.575" L x 0.472" W (40.00mm x 12.00mm) | 1.575" L x 0.472" W (40.00mm x 12.00mm) | 1.575" L x 0.472" W (40.00mm x 12.00mm) | 1.575" L x 0.472" W (40.00mm x 12.00mm) |
