Visaton GmbH & Co. KG BF 32 - 8 OHM

Name: BF 32 - 8 OHM
Brand: Visaton GmbH & Co. KG
SKU: BF 32 - 8 OHM
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: BF 32 - 8 OHM

Manufacturer:: Visaton GmbH & Co. KG

Category:: Speakers

Package:

Datasheet:: BF 32 - 8 OHM.pdf

Description:: SPEAKER 8OHM 2W TOP PORT 78DB

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

BF 32 - 8 OHM Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Visaton GmbH & Co. KG

Series:: Miniature Speaker

Packaging:: Bulk

Product Status:: Active

Technology:: -

Type:: General Purpose

Frequency Range:: 150 Hz ~ 20 kHz

Frequency - Self Resonant:: 220Hz

Impedance:: 8 Ohms

Efficiency - dBA:: 78.00

Efficiency - Testing:: 1W/1M

Efficiency - Type:: Sound Pressure Level (SPL)

Power - Rated:: 2 W

Power - Max:: 5 W

Port Location:: Top

Shape:: Round, Square Frame

Material - Cone:: -

Material - Magnet:: Nd

Ingress Protection:: -

Ratings:: -

Termination:: Quick Connect

Size / Dimension:: 1.260" L x 1.260" W (32.00mm x 32.00mm)

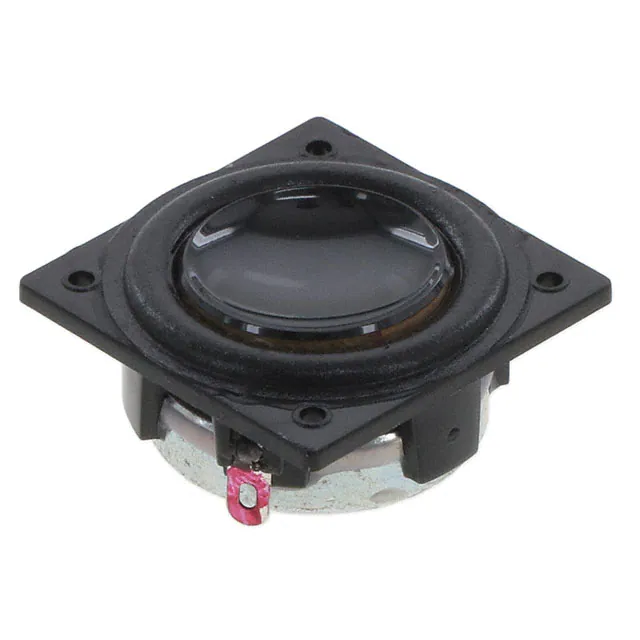

Part Number	BF 32 - 8 OHM	BF 32 S - 8 OHM	BF 32 S - 4 OHM	BF 32 - 4 OHM	BF 32 S WP - 8 OHM
Manufacturer	Visaton GmbH & Co. KG	Visaton GmbH & Co. KG	Visaton GmbH & Co. KG	Visaton GmbH & Co. KG	Visaton GmbH & Co. KG
Series	Miniature Speaker	Miniature Speaker	Miniature Speaker	Miniature Speaker	-
Packaging	Bulk	Bulk	Bulk	Bulk	Box
Product Status	Active	Active	Active	Active	Active
Technology	-	-	-	-	Magnetic
Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Frequency Range	150 Hz ~ 20 kHz	150 Hz ~ 20 kHz	150 Hz ~ 20 kHz	150 Hz ~ 20 kHz	145 Hz ~ 20 kHz
Frequency - Self Resonant	220Hz	220Hz	220Hz	220Hz	280Hz
Impedance	8 Ohms	8 Ohms	4 Ohms	4 Ohms	8 Ohms
Efficiency - dBA	78.00	78.00	78.00	78.00	88.00
Efficiency - Testing	1W/1M	1W/1M	1W/1M	1W/1M	100mW/1m
Efficiency - Type	Sound Pressure Level (SPL)	Sound Pressure Level (SPL)	Sound Pressure Level (SPL)	Sound Pressure Level (SPL)	Sound Pressure Level (SPL)
Power - Rated	2 W	2 W	2 W	2 W	2 W
Power - Max	5 W	5 W	5 W	5 W	-
Port Location	Top	Top	Top	Top	Top
Shape	Round, Square Frame	Round, Square Frame	Round, Square Frame	Round, Square Frame	Round, Square Frame
Material - Cone	-	-	-	-	-
Material - Magnet	Nd	Nd	Nd	Nd	Nd
Ingress Protection	-	-	-	-	Waterproof
Ratings	-	-	-	-	-
Termination	Quick Connect	Quick Connect	Quick Connect	Quick Connect	Solder Pads
Size / Dimension	1.260" L x 1.260" W (32.00mm x 32.00mm)	1.260" L x 1.260" W (32.00mm x 32.00mm)	1.260" L x 1.260" W (32.00mm x 32.00mm)	1.260" L x 1.260" W (32.00mm x 32.00mm)	1.260" L x 1.260" W (32.00mm x 32.00mm)
