AUO B160UAK01.9
- Part No.:
- B160UAK01.9
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 16" IPS LCM 1920×1200 400nits WLED eDP 40pins On-Cell Touch AUO32B6
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
B160UAK01.9 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 16"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1200
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 85/85/85/85
- Colors:
- 16.7M
- Outline Size:
- 349.68(W)×225.32(H) ×5.3(D) mm
- Treatment:
- Antiglare
- Brightness:
- 400 cd/m² (Typ.)
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/85/85 (Typ.)(CR≥10)
- Response Time:
- 20 (Typ.)(Tr+Td)
- Best View on:
- Symmetry
- Work Mode:
- AHVA, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 51% NTSC
- Mass:
- Used for:
- Touch Screen:
- On-Cell Touch, I²C
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

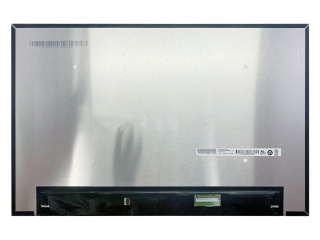

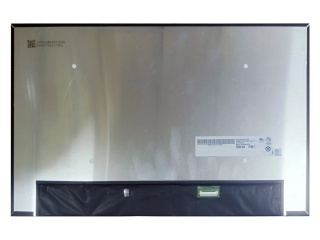

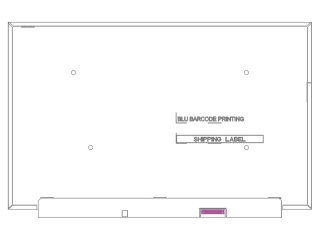

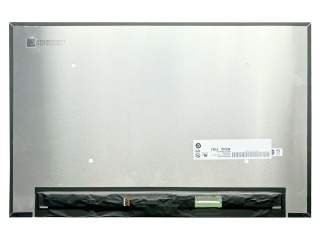

| Part Number | B160UAK01.0 | B160UAK01.2 | B160UAK01.H | B160UAK01.5 HW0A | B160UAK01.3 |
| Manufacturer | AUO | AUO | AUO | AUO | AUO |
| Panel Size | 16" | 16" | 16" | 16" | 16" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1920×1200 | 1920×1200 | 1920×1200 | 1920×1200 | 1920×1200 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 350.38(W)×226.17(H) ×5(D) mm | 349.68(W)×233.92(H) ×3.2(D) mm | 349.68(H)×225.32(V)×5(D) mm | 350.38(H)×234.57(V) ×3(D) mm | 350.38 × 226.17 × 5 (H×V×D) |
| Treatment | Antiglare | Antiglare | Antiglare | Antiglare | |
| Brightness | 250 cd/m² (Typ.) | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | |
| View Direction | Symmetry | Symmetry | |||
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 20 (Typ.)(Tr+Td) | 25 (Typ.)(Tr+Td) | 20 (Typ.)(Tr+Td) | 20 (Typ.)(Tr+Td) ms | |
| Best View on | Symmetry | Symmetry | Symmetry | ||
| Work Mode | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M 45% NTSC | 16.7M 45% NTSC | 16.7M 99% sRGB | 16.7M 45% NTSC | 16.7M 45% NTSC |
| Mass | |||||
| Used for | Laptop | Laptop | Laptop | Laptop | |
| Touch Screen | On-Cell Touch, I²C | On-Cell Touch, I²C | On-Cell Touch, I²C | On-Cell Touch, I²C/USB | |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
