AUO B160QAN02.6

Name: B160QAN02.6
Brand: AUO
SKU: B160QAN02.6
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: B160QAN02.6

Manufacturer:: AUO

Category:: TFT-LCD Panel

Package:

Description:: AUO 16" IPS LCM 2560×1600 600nits Mini LED eDP 40pins 240Hz AUOA3A6

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

B160QAN02.6 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: AUO

Panel Size:: 16"

TNVAIPS:: IPS

Resolution:: 2560×1600

CR:: 1900/2/19 0:01:00

Viewing Angle:: 89/89/89/89

Colors:: 1.06B

Outline Size:: 349.68(W)×236.58(H) mm

Treatment:: Antiglare, Hard coating (3H)

Brightness:: 600 cd/m² (Min.)

Contrast Ratio:: 1200:1 (Typ.) (TM)

View Direction:

Viewing Angle:: 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:: 8 (Typ.)(Tr+Td), 5 (Typ.)(G to G), 3 (Typ)(G to G)(OD)

Best View on:: Symmetry

Work Mode:: AHVA, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 1.06B 99% DCI-P3

Mass:

Used for:: Laptop; Gaming

Touch Screen:: Without

Refresh Rate:: 240Hz

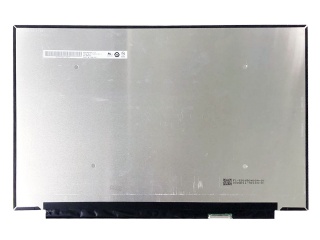

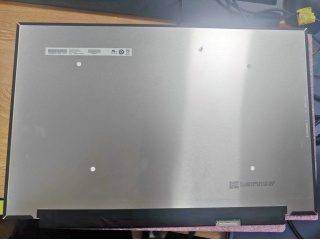

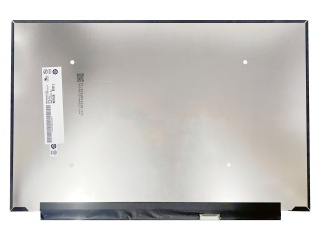

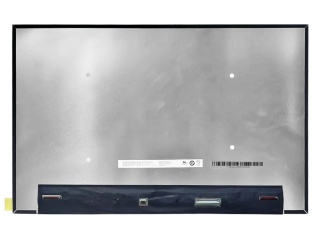

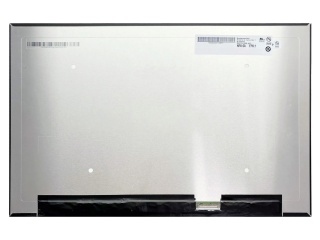

Part Number	B160QAN02.S	B160QAN02.L	B160QAN02.N	B160QAN02.7	B160QAN02.Z
Manufacturer	AUO	AUO	AUO	AUO	AUO
Panel Size	16"	16"	16"	16"	16"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	2560×1600	2560×1600	2560×1600	2560×1600	2560×1600
CR	1900/2/10 16:01:00	1900/2/19 0:01:00	1900/2/19 0:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00
Viewing Angle	89/89/89/89	85/85/85/85	85/85/85/85	85/85/85/85	85/85/85/85
Colors	1.06B	16.7M	16.7M	16.7M	16.7M
Outline Size	349.68×223.92×4.8 (H×V×D)	349.678(H)×233.924(V) ×2.6(D) mm	349.678(W)×233.924(H)×2.6(D) mm	349.68(H)×224.42(V)×5.2(D) mm	349.678(H)×234.424(V) ×2.6(D) mm
Treatment	Antiglare, Hard coating (3H)		Glare (Haze 0%)	Antiglare	Antiglare, Hard coating (3H)
Brightness	600 cd/m² (Min.)	500 cd/m² (Typ.)	400 cd/m² (Typ.)	400 cd/m² (Typ.)	300 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)		1200:1 (Typ.) (TM)	1000:1 (Typ.) (TM)	1000:1 (Typ.) (TM)
View Direction		Symmetry	Symmetry	Symmetry	Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	8 (Typ.)(Tr+Td), 5 (Typ.)(G to G), 3 (Typ.)(G to G)(OD) ms		8 (Typ.)(Tr+Td), 5 (Typ.)(G to G), 3 (Typ.)(G to G)(OD)	8 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD)	9 (Typ.)(Tr+Td), 7 (Typ.)(G to G), 3 (Typ.)(G to G)(OD)
Best View on	Symmetry
Work Mode	AHVA, Normally Black, Transmissive		AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	1.06B 96% DCI-P3	16.7M 99% DCI-P3	16.7M 100% DCI-P3	16.7M 100% DCI-P3	16.7M 99% DCI-P3
Mass
Used for	Laptop; Gaming			Laptop; Gaming	Laptop; Gaming
Touch Screen	Without		Without	Without	Without
Refresh Rate	165Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	120Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	165Hz	165Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	240Hz
