AUO B156HAN02.2 HWFA
- Part No.:
- B156HAN02.2 HWFA
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 15.6" IPS LCM 1920×1080 WLED eDP 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
B156HAN02.2 HWFA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 15.6"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1080
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 85/85/85/85
- Colors:
- 262K
- Outline Size:
- Treatment:
- Brightness:
- -
- Contrast Ratio:
- 800:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/85/85 (Typ.)(CR≥10)
- Response Time:
- 25 (Typ.)(Tr+Td)
- Best View on:
- Symmetry
- Work Mode:
- AHVA, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K
- Mass:
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

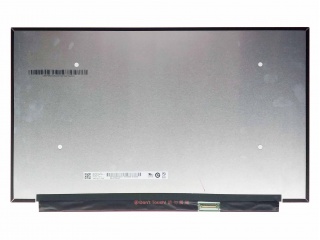

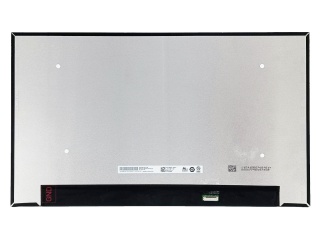

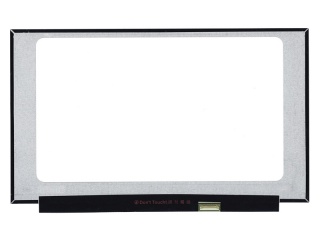

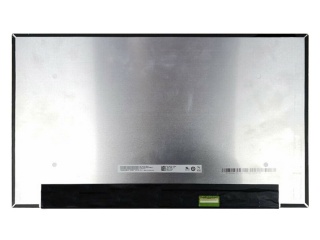

| Part Number | B156HAN02.1 HW0A | B156HAN02.5 HW0A | B156HAN02.0 HW0A | B156HAN02.4 | B156HAN02.9 |
| Manufacturer | AUO | AUO | AUO | AUO | AUO |
| Panel Size | 15.6" | 15.6" | 15.6" | 15.6" | 15.6" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 |
| Colors | 262K | 262K | 262K | 262K | 16.7M |
| Outline Size | 350.66(W)×216.15(H)×3.2(D) mm | 350.66(W)×205.24(H) ×5.4(D) mm | 350.66(W)×216.15(H) ×2.6(D) mm | 350.66(H)×216.15(V)×3.2(D) mm | 350.66(W)×205.24(H) ×5(D) mm |
| Treatment | Antiglare | Antiglare | Antiglare | Antiglare | |
| Brightness | 250 cd/m² (Typ.) | 220 cd/m² (Typ.) | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | |
| View Direction | Symmetry | ||||
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 25 (Typ.)(Tr+Td) | 25 (Typ.)(Tr+Td) | 25 (Typ.)(Tr+Td) | 25 (Typ.)(Tr+Td) | |
| Best View on | Symmetry | Symmetry | Symmetry | Symmetry | |
| Work Mode | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive | AHVA, Normally Black, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 262K 46% NTSC | 262K 46% NTSC | 262K 72% NTSC | 262K 72% NTSC | 16.7M |
| Mass | |||||
| Used for | Laptop | Laptop | Laptop | ||
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
