AUO B133XTN01.6 HW7A

Name: B133XTN01.6 HW7A
Brand: AUO
SKU: B133XTN01.6 HW7A
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: B133XTN01.6 HW7A

Manufacturer:: AUO

Category:: TFT-LCD Panel

Package:

Description:: AUO 13.3" TN LCM 1366×768 220nits WLED eDP

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

B133XTN01.6 HW7A Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: AUO

Panel Size:: 13.3"

TNVAIPS:: TN

Resolution:: 1366×768

CR:: 1900/1/16 16:01:00

Viewing Angle:: 45/45/15/35

Colors:: 262K

Outline Size:: 306.3(W)×195.2(H) ×3(D) mm

Treatment:: Hard coating (3H)

Brightness:: 220 cd/m² (Typ.)

Contrast Ratio:: 400:1 (Typ.) (TM)

View Direction:

Viewing Angle:: 45/45/15/35 (Typ.)(CR≥10)

Response Time:: 8 (Typ.)(Tr+Td)

Best View on:: 6 o'clock

Work Mode:: TN, Normally White, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 262K

Mass:

Used for:

Touch Screen:: Without

Refresh Rate:: 60Hz

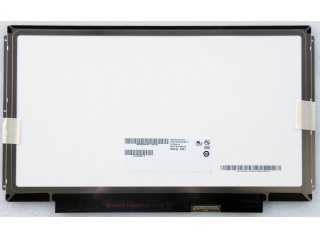

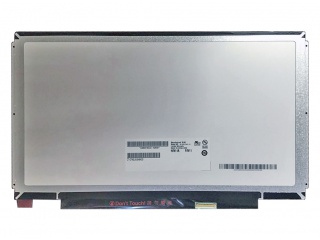

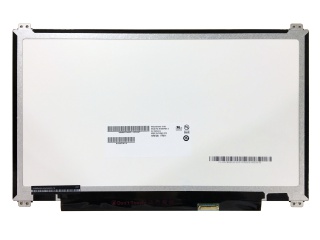

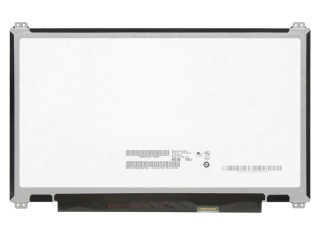

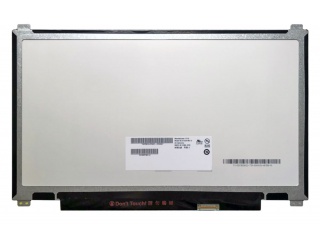

Part Number	B133XTN01.6 HW1A	B133XTN01.6 HW0A	B133XTN01.6 HW2A	B133XTN01.6 HW9A	B133XTN01.0
Manufacturer	AUO	AUO	AUO	AUO	AUO
Panel Size	13.3"	13.3"	13.3"	13.3"	13.3"
TNVAIPS	TN	TN	TN	TN	TN
Resolution	1366×768	1366×768	1366×768	1366×768	1366×768
CR	1900/1/16 16:01:00	1900/1/16 16:01:00	1900/1/16 16:01:00	1900/1/20 20:01:00	1900/1/20 20:01:00
Viewing Angle	45/45/15/35	45/45/15/35	45/45/15/35	45/45/15/35	45/45/15/35
Colors	262K	262K	262K	262K	262K
Outline Size	314.1(H)×188.7(V) ×3(D) mm	306.3(H)×195.2(V) ×3(D) mm	306.3(W)×195.2(H)×3(D) mm	306.3(H)×195.2(V) ×3(D) mm	314.1(W)×188.7(H)×3.2(D)
Treatment				Antiglare, Hard coating (3H)	Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.)
Brightness	220 cd/m² (Typ.)	220 cd/m² (Typ.)	220 cd/m² (Typ.)	220 cd/m² (Typ.)	200 (Typ.)(cd/m²)
Contrast Ratio				500:1 (Typ.) (TM)	500 : 1 (Typ.) (TM)
View Direction	6 o'clock	6 o'clock		6 o'clock
Viewing Angle	45/45/15/35 (Typ.)(CR≥10) (Left / Right / Up / Down)	45/45/15/35 (Typ.)(CR≥10) (Left / Right / Up / Down)	45/45/15/35 (Typ.)(CR≥10) (Left / Right / Up / Down)	45/45/15/35 (Typ.)(CR≥10) (Left / Right / Up / Down)	45/45/15/35 (Typ.)(CR≥10)
Response Time				8 (Typ.)(Tr+Td)	3/5 (Typ.)(Tr/Td) ms
Best View on			6 o'clock		6 o'clock
Work Mode				TN, Normally White, Transmissive	TN, Normally White, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K 45% NTSC	262K 45% NTSC	262K 45% NTSC	262K 45% NTSC	262K 45% NTSC
Mass
Used for				Laptop
Touch Screen				Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz
