Home > Products > Lcd Display > TFT-LCD Panel

AUO B133HAN05.H HW2A

Name: B133HAN05.H HW2A
Brand: AUO
SKU: B133HAN05.H HW2A
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: B133HAN05.H HW2A

Manufacturer:: AUO

Category:: TFT-LCD Panel

Package:

Description:: AUO 13.3" IPS LCM 1920×1080 400nits WLED eDP 30pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

B133HAN05.H HW2A Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: AUO

Panel Size:: 13.3"

TNVAIPS:: IPS

Resolution:: 1920×1080

CR:: 1900/3/2 12:01:00

Viewing Angle:: 85/85/85/85

Colors:: 16.7M

Outline Size:: 298.76×176.24×4.1 (H×V×D)

Treatment:: Antiglare

Brightness:: 400 cd/m² (Typ.)

Contrast Ratio:: 1500 : 1 (Typ.) (TM)

View Direction:

Viewing Angle:: 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:: 27 (Typ.)(Tr+Td) ms

Best View on:: Symmetry

Work Mode:: AHVA, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 16.7M 100% sRGB

Mass:

Used for:: Laptop

Touch Screen:: Without

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

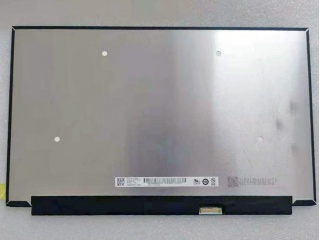

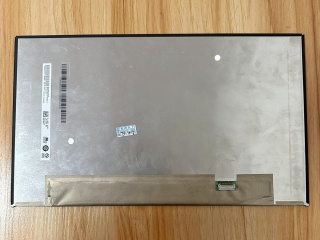

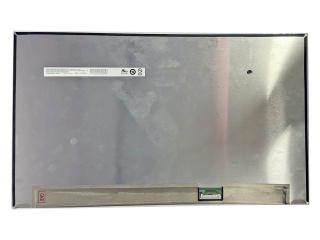

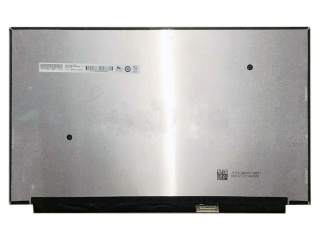

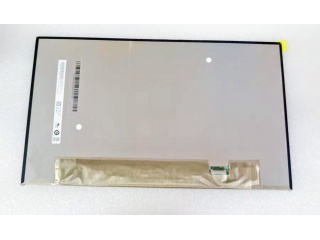

Part Number	B133HAN05.A	B133HAN05.K	B133HAN05.H HW1A	B133HAN05.6	B133HAN05.7
Manufacturer	AUO	AUO	AUO	AUO	AUO
Panel Size	13.3"	13.3"	13.3"	13.3"	13.3"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080
CR	1900/2/27 8:01:00	1900/3/2 12:01:00	1900/3/2 12:01:00	1900/3/2 12:01:00	1900/3/2 12:01:00
Viewing Angle	85/85/85/85	85/85/85/85	85/85/85/85	85/85/85/85	85/85/85/85
Colors	16.7M	16.7M	16.7M	16.7M	16.7M
Outline Size	300.26(W)×185.55(H)×2.4(D) mm	300.26(W)×177.38(H) ×4.4(D) mm	298.76(H)×176.24(V) ×3.8(D) mm	300.26×177.38×4.4 (H×V×D)	298.76(W)×185.04(H) ×2.2(D) mm
Treatment	Antiglare	Antiglare	Antiglare	Antiglare	Glare (Haze 0%)
Brightness	300 cd/m² (Typ.)	400 cd/m² (Typ.)	400 cd/m² (Typ.)	300 cd/m² (Typ.)	400 cd/m² (Typ.)
Contrast Ratio	1400:1 (Typ.) (TM)	1500:1 (Typ.) (TM)	1500:1 (Typ.) (TM)	1500 : 1 (Typ.) (TM)	1500:1 (Typ.) (TM)
View Direction	Symmetry		Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	85/85/85/85 (Typ.)(CR≥10)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	27 (Typ.)(Tr+Td)	27 (Typ.)(Tr+Td)	27 (Typ.)(Tr+Td)	27/35 (Typ./Max.)(Tr+Td) ms	35 (Max.)(Tr+Td)
Best View on		Symmetry		Symmetry	Symmetry
Work Mode	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	16.7M 72% NTSC	16.7M 100% sRGB	16.7M 100% sRGB	16.7M 100% sRGB	16.7M 100% sRGB
Mass
Used for			Laptop	Laptop	Laptop
Touch Screen	Without	Without	Without	Without	Without
Refresh Rate	60Hz	60Hz	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
