Home > Products > Lcd Display > TFT-LCD Panel

AUO B133HAN04.0 HW4A

Name: B133HAN04.0 HW4A
Brand: AUO
SKU: B133HAN04.0 HW4A
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: B133HAN04.0 HW4A

Manufacturer:: AUO

Category:: TFT-LCD Panel

Package:

Description:: AUO 13.3" IPS LCM 1920×1080 220nits WLED eDP 40pins AUO102D

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

B133HAN04.0 HW4A Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: AUO

Panel Size:: 13.3"

TNVAIPS:: IPS

Resolution:: 1920×1080

CR:: 1900/2/2 8:01:00

Viewing Angle:: 85/85/85/85

Colors:: 262K

Outline Size:: 305.35(W)×193.6(H)×3.2(D) mm

Treatment:

Brightness:: 220 cd/m² (Typ.)

Contrast Ratio:

View Direction:

Viewing Angle:: 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

Best View on:: Symmetry

Work Mode:

Glass Thickness:

Transmissivity:

Color Depth:: 262K 45% NTSC

Mass:

Used for:

Touch Screen:

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

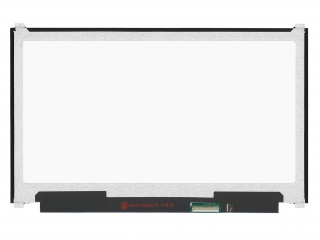

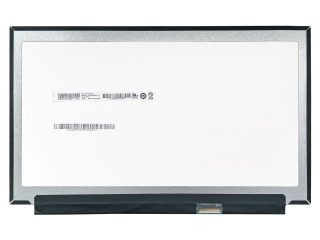

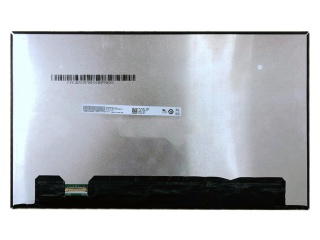

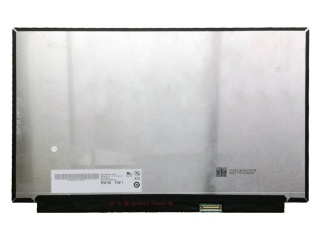

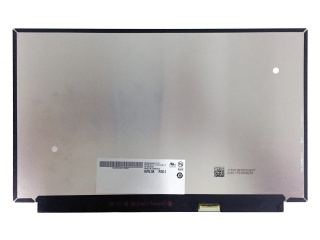

Part Number	B133HAN04.0 HW3A	B133HAN04.6	B133HAN04.B	B133HAN04.9	B133HAN04.2
Manufacturer	AUO	AUO	AUO	AUO	AUO
Panel Size	13.3"	13.3"	13.3"	13.3"	13.3"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080
CR	1900/2/2 8:01:00	1900/2/2 8:01:00	1900/1/25 0:01:00	1900/2/2 8:01:00	1900/2/2 8:01:00
Viewing Angle	85/85/85/85	80/80/80/80	85/85/85/85	85/85/85/85	85/85/85/85
Colors	262K	262K	262K	262K	262K
Outline Size	305.35(W)×193.6(H) ×3.2(D) mm	299.972(W)×177.48(H) ×4.35(D) mm	300.26(W)×187.63(H)×3(D) mm	299.872(W)×186.92(H) ×2.2(D) mm	299.872(W)×186.92(H)×2.2(D) mm
Treatment	Hard coating	Antiglare	Antiglare	Antiglare	Glare (Haze 0%)
Brightness	220 cd/m² (Typ.)	300 cd/m² (Typ.)	250 cd/m² (Typ.)	300 cd/m² (Typ.)	300 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)	800:1 (Typ.) (TM)	600:1 (Typ.) (TM)	800:1 (Typ.) (TM)	800:1 (Typ.) (TM)
View Direction			Symmetry		Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10)
Response Time	25 (Typ.)(Tr+Td)	27 (Typ.)(Tr+Td)	27 (Typ.)(Tr+Td)	27 (Typ.)(Tr+Td)	27 (Typ.)(Tr+Td)
Best View on	Symmetry	Symmetry		Symmetry
Work Mode	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive	AHVA, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K 45% NTSC	262K 72% NTSC	262K 45% NTSC	262K 72% NTSC	262K 72% NTSC
Mass
Used for		Laptop		Laptop
Touch Screen	Without	Without	Without	Without	Without
Refresh Rate	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz
