American Zettler AZ983-1C-24D
- Part No.:
- AZ983-1C-24D
- Manufacturer:
- American Zettler
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
AZ983-1C-24D.pdf
- Description:
- RELAY AUTOMOTIVE SPDT 60A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AZ983-1C-24D Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- American Zettler
- Series:
- AZ983
- Packaging:
- Box
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 75 mA
- Coil Voltage:
- 24VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 60 A
- Switching Voltage:
- 75VDC - Max
- Must Operate Voltage:
- 15.6 VDC
- Must Release Voltage:
- 2.4 VDC
- Operate Time:
- 7 ms
- Release Time:
- 5 ms
- Features:
- -
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Operating Temperature:
- -40°C ~ 85°C

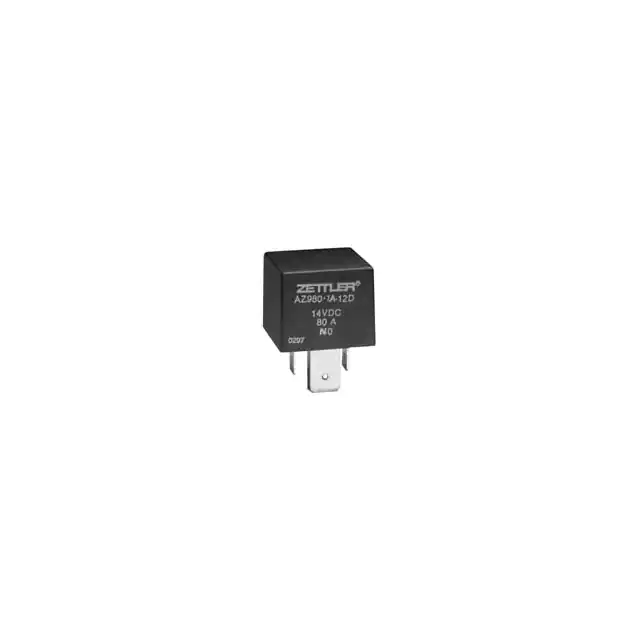

| Image |  |
 |
|
|
|
| Part Number | AZ983-1A-12DE | AZ983-1A-24DE | AZ983-1C-12DE | AZ983-1C-12D | AZ983-1A-12D |
| Manufacturer | American Zettler | American Zettler | American Zettler | American Zettler | American Zettler |
| Series | AZ983 | AZ983 | AZ983 | AZ983 | AZ983 |
| Packaging | Tray | Box | Tray | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 150 mA | 75 mA | 150 mA | 150 mA | 150 mA |
| Coil Voltage | 12VDC | 24VDC | 12VDC | 12VDC | 12VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPDT (1 Form C) | SPDT (1 Form C) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 80 A | 80 A | 60 A | 60 A | 80 A |
| Switching Voltage | 75VDC - Max | 75VDC - Max | 75VDC - Max | 75VDC - Max | 75VDC - Max |
| Must Operate Voltage | 7.8 VDC | 15.6 VDC | 7.8 VDC | 7.8 VDC | 7.8 VDC |
| Must Release Voltage | 1.2 VDC | 2.4 VDC | 1.2 VDC | 1.2 VDC | 1.2 VDC |
| Operate Time | 7 ms | 7 ms | 7 ms | 7 ms | 7 ms |
| Release Time | 5 ms | 5 ms | 5 ms | 5 ms | 5 ms |
| Features | Sealed - Epoxy | Sealed - Epoxy | Sealed - Epoxy | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
