Mallory Sonalert Products Inc. AST0827MW-03TRQ
- Part No.:
- AST0827MW-03TRQ
- Manufacturer:
- Mallory Sonalert Products Inc.
- Category:
- Alarms, Buzzers, and Sirens
- Package:
- Datasheet:
-
AST0827MW-03TRQ.pdf
- Description:
- BUZZER MAGNETIC 3V 0.34X0.34 SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AST0827MW-03TRQ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Mallory Sonalert Products Inc.
- Series:
- AST
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Driver Circuitry:
- Transducer, Externally Driven
- Input Type:
- Peak-Peak Signal
- Voltage - Rated:
- 3 V
- Voltage Range:
- 2 ~ 4V
- Frequency:
- 2.731kHz
- Technology:
- Magnetic
- Operating Mode:
- Single Tone
- Duration:
- -
- Sound Pressure Level (SPL):
- 85dB @ 3V, 10cm
- Current - Supply:
- 80mA
- Port Location:
- Side
- Operating Temperature:
- -20°C ~ 70°C
- Approval Agency:
- -
- Ratings:
- -
- Ingress Protection:
- -
- Mounting Type:
- Surface Mount
- Termination:
- Solder Pads
- Size / Dimension:
- 0.335" L x 0.335" W (8.50mm x 8.50mm)

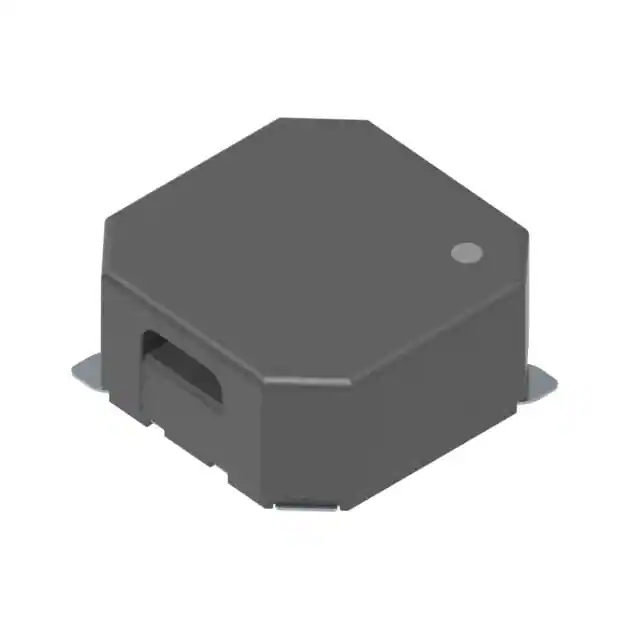

| Image | .JPG) |
.JPG) |
 |
|
|
| Part Number | AST0827MW-03TRQ | AST0827MW-03ATRQ | AST0827MW-03BTRQ | AST0827MW-03Q | AST0827MW-03AQ |
| Manufacturer | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. |
| Series | AST | AST | AST | AST | AST |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Strip | Strip |
| Product Status | Active | Active | Active | Active | Active |
| Driver Circuitry | Transducer, Externally Driven | Transducer, Externally Driven | Transducer, Externally Driven | Transducer, Externally Driven | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal | Peak-Peak Signal | Peak-Peak Signal | Peak-Peak Signal | Peak-Peak Signal |
| Voltage - Rated | 3 V | 3 V | 3 V | 3 V | 3 V |
| Voltage Range | 2 ~ 4V | 2 ~ 4V | 2 ~ 4V | 2 ~ 4V | 2 ~ 4V |
| Frequency | 2.731kHz | 2.731kHz | 2.7kHz | 2.731kHz | 2.731kHz |
| Technology | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
| Operating Mode | Single Tone | Single Tone | Single Tone | Single Tone | Single Tone |
| Duration | - | - | - | - | - |
| Sound Pressure Level (SPL) | 85dB @ 3V, 10cm | 85dB @ 3V, 10cm | 80dB @ 3V, 10cm | 85dB @ 3V, 10cm | 85dB @ 3V, 10cm |
| Current - Supply | 80mA | 80mA | 100mA | 80mA | 80mA |
| Port Location | Side | Side | Top | Side | Side |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Approval Agency | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination | Solder Pads | Solder Pads | Solder Pads | Solder Pads | Solder Pads |
| Size / Dimension | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
