PUI Audio, Inc. AS07004PO-R
- Part No.:
- AS07004PO-R
- Manufacturer:
- PUI Audio, Inc.
- Category:
- Speakers
- Package:
- Datasheet:
-
AS07004PO-R.pdf
- Description:
- SPEAKER 4OHM 2W TOP PORT 86DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AS07004PO-R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- PUI Audio, Inc.
- Series:
- AS
- Packaging:
- Tray
- Product Status:
- Active
- Technology:
- Magnetic
- Type:
- General Purpose
- Frequency Range:
- 100 Hz ~ 20 kHz
- Frequency - Self Resonant:
- 300Hz
- Impedance:
- 4 Ohms
- Efficiency - dBA:
- 86.00
- Efficiency - Testing:
- 1W/500mm
- Efficiency - Type:
- Sound Pressure Level (SPL)
- Power - Rated:
- 2 W
- Power - Max:
- 5 W
- Port Location:
- Top
- Shape:
- Oval, Rectangular Frame
- Material - Cone:
- Paper
- Material - Magnet:
- Nd-Fe-B
- Ingress Protection:
- -
- Ratings:
- -
- Termination:
- Solder Eyelet(s)
- Size / Dimension:
- 2.756" L x 1.201" W (70.00mm x 30.50mm)

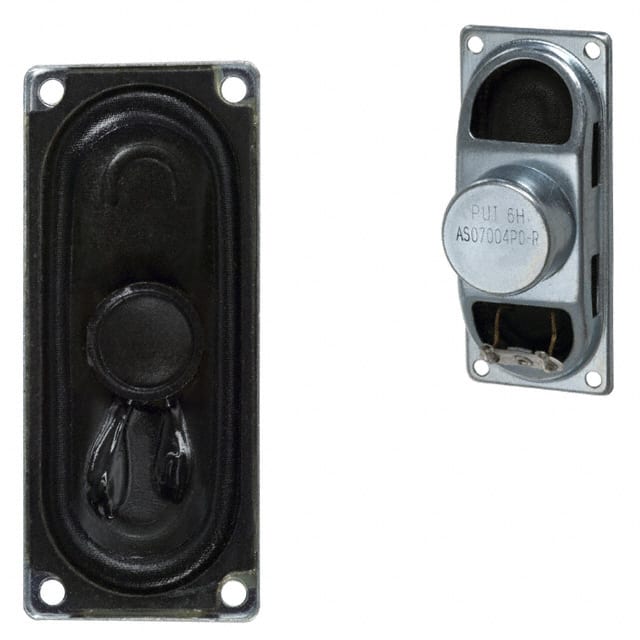

| Image |  |
 |
| Part Number | AS07004PO-R | AS07004PO-WR-R |
| Manufacturer | PUI Audio, Inc. | PUI Audio, Inc. |
| Series | AS | AS |
| Packaging | Tray | Bulk |
| Product Status | Active | Active |
| Technology | Magnetic | Magnetic |
| Type | General Purpose | General Purpose |
| Frequency Range | 100 Hz ~ 20 kHz | 100 Hz ~ 20 kHz |
| Frequency - Self Resonant | 300Hz | 300Hz |
| Impedance | 4 Ohms | 4 Ohms |
| Efficiency - dBA | 86.00 | 86.00 |
| Efficiency - Testing | 1W/500mm | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) |
| Power - Rated | 2 W | 2 W |
| Power - Max | 5 W | 5 W |
| Port Location | Top | Top |
| Shape | Oval, Rectangular Frame | Oval, Rectangular Frame |
| Material - Cone | Paper | Paper, Coated |
| Material - Magnet | Nd-Fe-B | Nd-Fe-B |
| Ingress Protection | - | Water Resistant |
| Ratings | - | - |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) |
| Size / Dimension | 2.756" L x 1.201" W (70.00mm x 30.50mm) | 2.756" L x 1.201" W (70.00mm x 30.50mm) |
