PUI Audio, Inc. AS06608MR
- Part No.:
- AS06608MR
- Manufacturer:
- PUI Audio, Inc.
- Category:
- Speakers
- Package:
- Datasheet:
-
AS06608MR.pdf
- Description:
- SPEAKER 8OHM 500MW TOP PORT 84DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AS06608MR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- PUI Audio, Inc.
- Series:
- AS
- Packaging:
- Tray
- Product Status:
- Obsolete
- Technology:
- Magnetic
- Type:
- General Purpose
- Frequency Range:
- 380 Hz ~ 7.5 kHz
- Frequency - Self Resonant:
- 380Hz
- Impedance:
- 8 Ohms
- Efficiency - dBA:
- 84.00
- Efficiency - Testing:
- 1W/1M
- Efficiency - Type:
- Sound Pressure Level (SPL)
- Power - Rated:
- 500 mW
- Power - Max:
- 800 mW
- Port Location:
- Top
- Shape:
- Round
- Material - Cone:
- Polyester, Polyethylene Terephthalate (PET)
- Material - Magnet:
- Ferrite
- Ingress Protection:
- -
- Ratings:
- -
- Termination:
- Solder Eyelet(s)
- Size / Dimension:
- 2.598" Dia (66.00mm)
| Image |  |
 |
 |

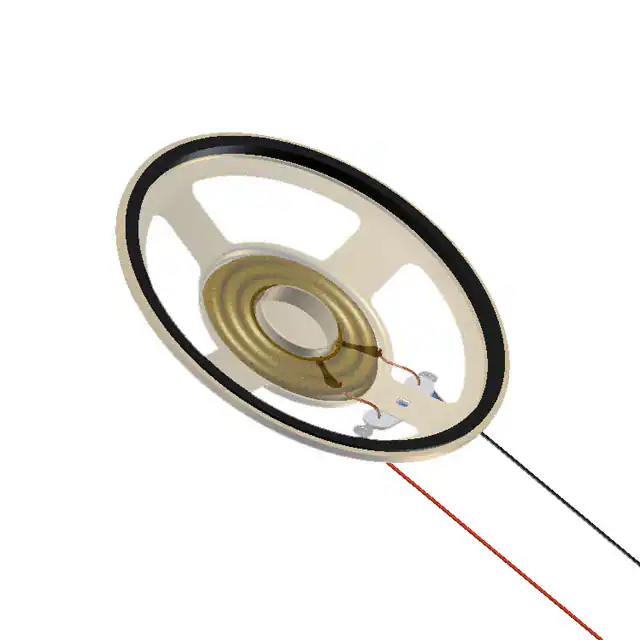

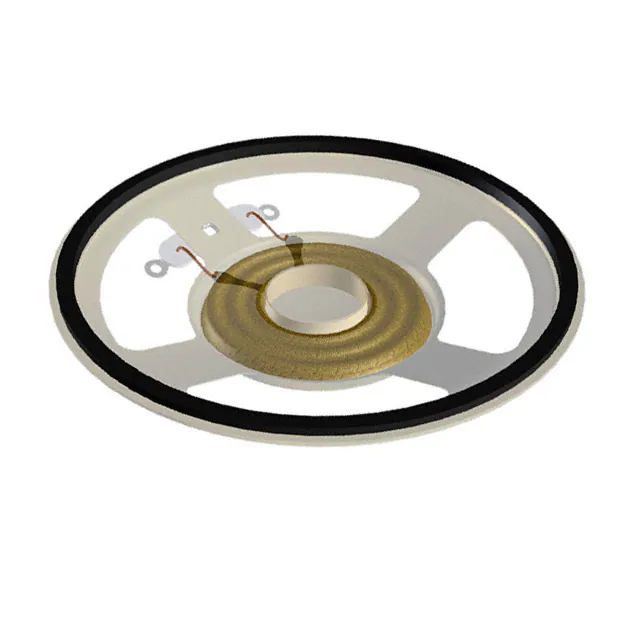

| Part Number | AS06608MR-R | AS06608MR-LW152-R | AS06608MR |
| Manufacturer | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. |
| Series | AS | AS | AS |
| Packaging | Tray | Bulk | Tray |
| Product Status | Active | Active | Obsolete |
| Technology | Magnetic | Magnetic | Magnetic |
| Type | General Purpose | General Purpose | General Purpose |
| Frequency Range | 380 Hz ~ 7.5 kHz | 380 Hz ~ 7.5 kHz | 380 Hz ~ 7.5 kHz |
| Frequency - Self Resonant | 380Hz | 380Hz | 380Hz |
| Impedance | 8 Ohms | 8 Ohms | 8 Ohms |
| Efficiency - dBA | 84.00 | 84.00 | 84.00 |
| Efficiency - Testing | 1W/1M | 1W/1M | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW | 500 mW | 500 mW |
| Power - Max | 800 mW | 1 W | 800 mW |
| Port Location | Top | Top | Top |
| Shape | Round | Round | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) | Polyester, Polyethylene Terephthalate (PET) | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Ferrite | Nd-Fe-B | Ferrite |
| Ingress Protection | - | - | - |
| Ratings | - | IEC 60601-1-8 | - |
| Termination | Solder Eyelet(s) | Wire Leads | Solder Eyelet(s) |
| Size / Dimension | 2.598" Dia (66.00mm) | 2.598" Dia (66.00mm) | 2.598" Dia (66.00mm) |
