PUI Audio, Inc. AS05008MR-3
- Part No.:
- AS05008MR-3
- Manufacturer:
- PUI Audio, Inc.
- Category:
- Speakers
- Package:
- Datasheet:
-
AS05008MR-3.pdf
- Description:
- SPEAKER 8OHM 200MW TOP PORT 80DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AS05008MR-3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- PUI Audio, Inc.
- Series:
- AS
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Technology:
- Magnetic
- Type:
- General Purpose
- Frequency Range:
- 550 Hz ~ 4.5 kHz
- Frequency - Self Resonant:
- 550Hz
- Impedance:
- 8 Ohms
- Efficiency - dBA:
- 80.00
- Efficiency - Testing:
- 1W/500mm
- Efficiency - Type:
- Sound Pressure Level (SPL)
- Power - Rated:
- 200 mW
- Power - Max:
- 400 mW
- Port Location:
- Top
- Shape:
- Round
- Material - Cone:
- Polyester, Polyethylene Terephthalate (PET)
- Material - Magnet:
- Nd-Fe-B
- Ingress Protection:
- -
- Ratings:
- -
- Termination:
- Solder Eyelet(s)
- Size / Dimension:
- 1.969" Dia (50.00mm)
| Image |  |
 |
 |
|

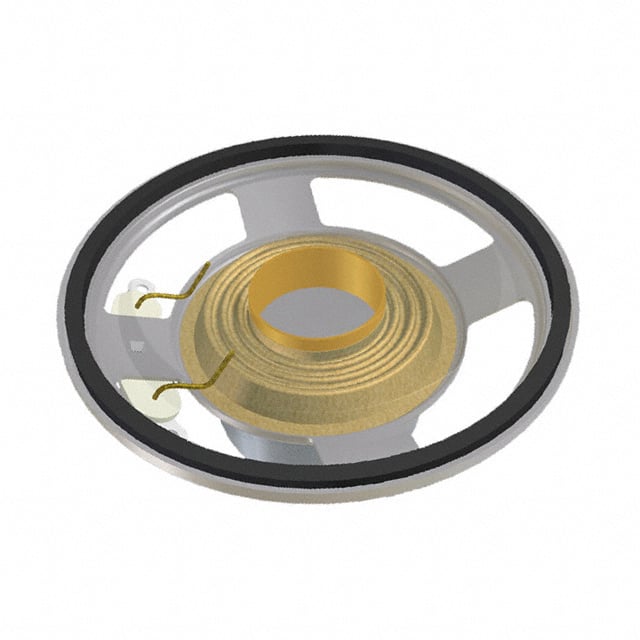

| Part Number | AS05008MR-4-R | AS05008MR-R | AS05008MR-15 | AS05008MR-3 |
| Manufacturer | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. |
| Series | AS | AS | AS | AS |
| Packaging | Tray | Tray | Tray | Bulk |
| Product Status | Active | Active | Active | Obsolete |
| Technology | Magnetic | Magnetic | Magnetic | Magnetic |
| Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Frequency Range | 350 Hz ~ 20 kHz | 550 Hz ~ 4.5 kHz | 650 Hz ~ 10 kHz | 550 Hz ~ 4.5 kHz |
| Frequency - Self Resonant | 350Hz | 550Hz | 650Hz | 550Hz |
| Impedance | 8 Ohms | 8 Ohms | 8 Ohms | 8 Ohms |
| Efficiency - dBA | 92.00 | 80.00 | 85.00 | 80.00 |
| Efficiency - Testing | 100mW/100mm | 1W/500mm | 1W/1M | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) |
| Power - Rated | 1.5 W | 200 mW | 2.5 W | 200 mW |
| Power - Max | 2 W | 400 mW | 3 W | 400 mW |
| Port Location | Top | Top | Top | Top |
| Shape | Round | Round | Round | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) | Polyester, Polyethylene Terephthalate (PET) | Polyethylene Naphthalate (PEN) | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | N35 | Nd-Fe-B | Ferrite | Nd-Fe-B |
| Ingress Protection | - | - | IP65 - Dust Tight, Water Resistant | - |
| Ratings | - | - | - | - |
| Termination | Solder Pads | Solder Eyelet(s) | Solder Eyelet(s) | Solder Eyelet(s) |
| Size / Dimension | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) | 1.969" Dia (50.00mm) |
