PUI Audio, Inc. AS03604MR-R
- Part No.:
- AS03604MR-R
- Manufacturer:
- PUI Audio, Inc.
- Category:
- Speakers
- Package:
- Description:
- SPEAKER 4OHM 1W TOP PORT 83DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AS03604MR-R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- PUI Audio, Inc.
- Series:
- AS
- Packaging:
- Tray
- Product Status:
- Obsolete
- Technology:
- Magnetic
- Type:
- General Purpose
- Frequency Range:
- 600 Hz ~ 4.5 kHz
- Frequency - Self Resonant:
- 600Hz
- Impedance:
- 4 Ohms
- Efficiency - dBA:
- 83.00
- Efficiency - Testing:
- 1W/500mm
- Efficiency - Type:
- Sound Pressure Level (SPL)
- Power - Rated:
- 1 W
- Power - Max:
- 1.5 W
- Port Location:
- Top
- Shape:
- Round
- Material - Cone:
- Polyester, Polyethylene Terephthalate (PET)
- Material - Magnet:
- Nd-Fe-B
- Ingress Protection:
- -
- Ratings:
- -
- Termination:
- Solder Pads
- Size / Dimension:
- 1.417" Dia (36.00mm)
| Image |  |
 |
 |
|

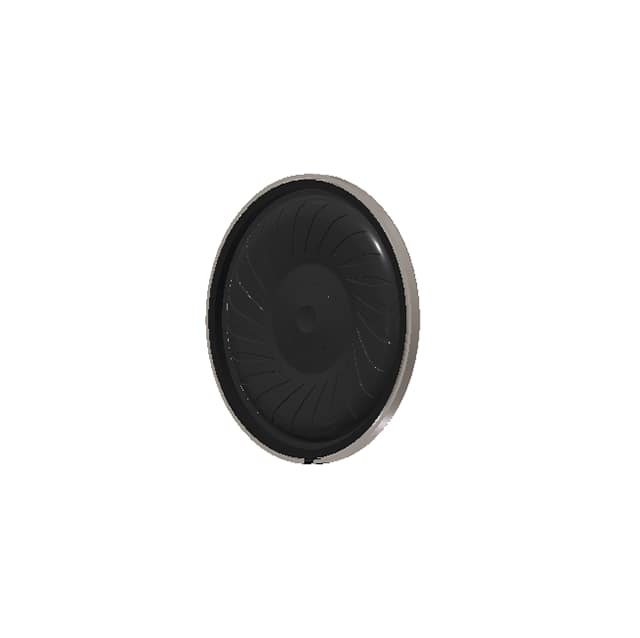

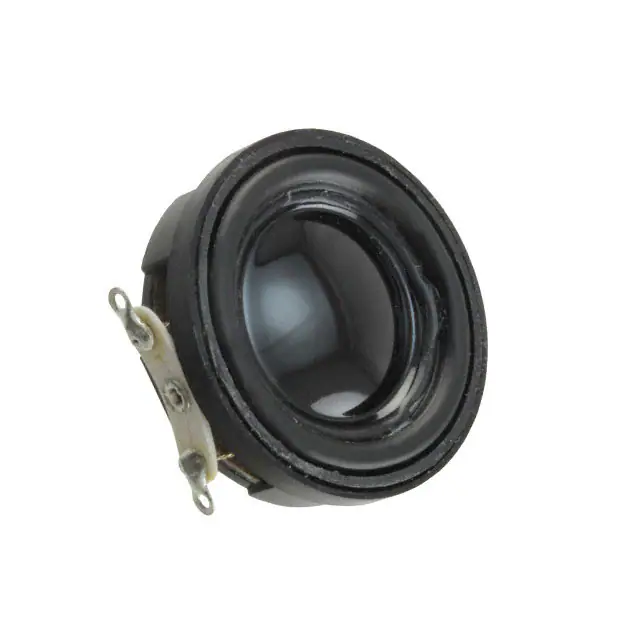

| Part Number | AS03604MR-N50-HT-R | AS03604MR-N50-R | AS03604MR-2-R | AS03604MR-R |
| Manufacturer | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. |
| Series | N50 Mini Speaker | N50 Mini Speaker | AS | AS |
| Packaging | Bulk | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Obsolete |
| Technology | Magnetic | Magnetic | Magnetic | Magnetic |
| Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Frequency Range | 150 Hz ~ 20 kHz | 150 Hz ~ 20 kHz | 550 Hz ~ 11 kHz | 600 Hz ~ 4.5 kHz |
| Frequency - Self Resonant | 200Hz | 200Hz | 550Hz | 600Hz |
| Impedance | 4 Ohms | 4 Ohms | 4 Ohms | 4 Ohms |
| Efficiency - dBA | 85.00 | 85.00 | 82.00 | 83.00 |
| Efficiency - Testing | 1W/500mm | 1W/500mm | 1W/1M | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) |
| Power - Rated | 3 W | 3 W | 1.5 W | 1 W |
| Power - Max | 5 W | 5 W | 2 W | 1.5 W |
| Port Location | Top | Top | Top | Top |
| Shape | Round | Round | Round | Round |
| Material - Cone | Polyethylenimine (PEI) | Polyethylenimine (PEI) | Polyester, Polyethylene Terephthalate (PET) | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B | Nd-Fe-B | Nd-Fe-B | Nd-Fe-B |
| Ingress Protection | - | - | - | - |
| Ratings | - | IEC 60601-1-8 | - | - |
| Termination | Quick Connect | Quick Connect | Solder Pads | Solder Pads |
| Size / Dimension | 1.417" Dia (36.00mm) | 1.417" Dia (36.00mm) | 1.417" Dia (36.00mm) | 1.417" Dia (36.00mm) |
