PUI Audio, Inc. AS02708CO-WR-R
- Part No.:
- AS02708CO-WR-R
- Manufacturer:
- PUI Audio, Inc.
- Category:
- Speakers
- Package:
- Description:
- SPEAKER 8OHM 1W TOP PORT 80DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AS02708CO-WR-R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- PUI Audio, Inc.
- Series:
- AS
- Packaging:
- Tray
- Product Status:
- Active
- Technology:
- Magnetic
- Type:
- General Purpose
- Frequency Range:
- 250 Hz ~ 20 kHz
- Frequency - Self Resonant:
- 750Hz
- Impedance:
- 8 Ohms
- Efficiency - dBA:
- 80.00
- Efficiency - Testing:
- 1W/500mm
- Efficiency - Type:
- Sound Pressure Level (SPL)
- Power - Rated:
- 1 W
- Power - Max:
- 3 W
- Port Location:
- Top
- Shape:
- Oval, Rectangular Frame
- Material - Cone:
- Cloth
- Material - Magnet:
- Nd-Fe-B
- Ingress Protection:
- Water Resistant
- Ratings:
- -
- Termination:
- Solder Eyelet(s)
- Size / Dimension:
- 1.063" L x 0.787" W (27.00mm x 20.00mm)
| Image |  |
 |
 |
 |
 |

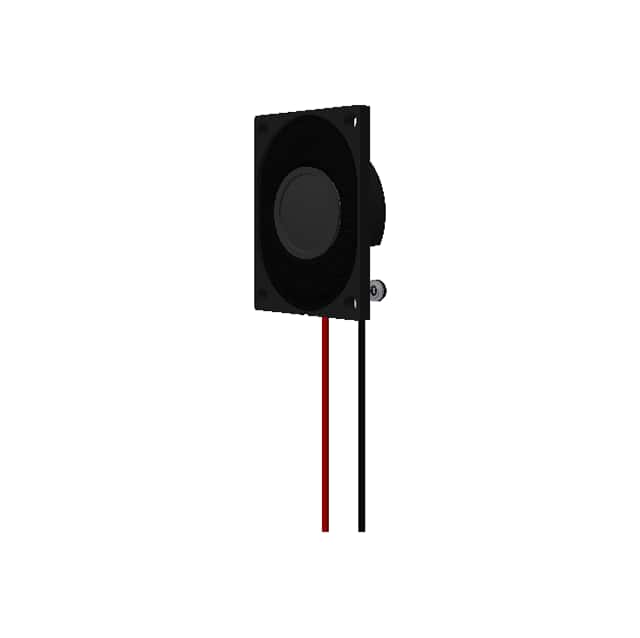

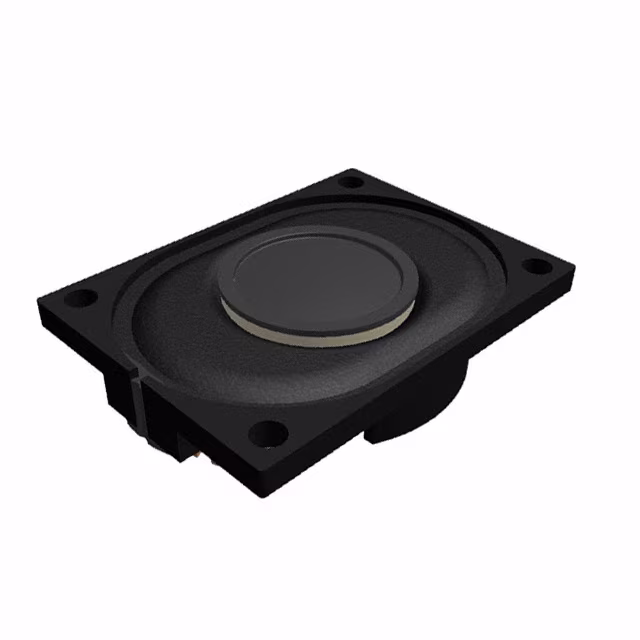

| Part Number | AS02708CO-WR-R | AS02708CO-R | AS02708CO-LW100-R | AS02708CO-2-R | AS02708CO-WR |
| Manufacturer | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. |
| Series | AS | AS | AS | AS | AS |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Obsolete | Obsolete |
| Technology | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
| Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Frequency Range | 250 Hz ~ 20 kHz | 250 Hz ~ 20 kHz | 500 Hz ~ 20 kHz | 550 Hz ~ 20 kHz | 250 Hz ~ 20 kHz |
| Frequency - Self Resonant | 750Hz | 750Hz | 650Hz | 550Hz | 750Hz |
| Impedance | 8 Ohms | 8 Ohms | 8 Ohms | 8 Ohms | 8 Ohms |
| Efficiency - dBA | 80.00 | 80.00 | 80.00 | 80.00 | 80.00 |
| Efficiency - Testing | 1W/500mm | 1W/500mm | 1W/500mm | 1W/500mm | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) | Sound Pressure Level (SPL) |
| Power - Rated | 1 W | 1 W | 1 W | 1 W | 1 W |
| Power - Max | 3 W | 3 W | 3 W | 3 W | 3 W |
| Port Location | Top | Top | Top | Top | Top |
| Shape | Oval, Rectangular Frame | Oval, Rectangular Frame | Rectangular | Oval, Rectangular Frame | Oval, Rectangular Frame |
| Material - Cone | Cloth | Cloth | Cloth | Cloth | Cloth |
| Material - Magnet | Nd-Fe-B | Nd-Fe-B | Nd-Fe-B | Nd-Fe-B | Nd-Fe-B |
| Ingress Protection | Water Resistant | - | - | - | Water Resistant |
| Ratings | - | - | - | - | - |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) | Wire Leads | Solder Pads | Solder Eyelet(s) |
| Size / Dimension | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
