PUI Audio, Inc. AS01508AO-SC-WP-R

Name: AS01508AO-SC-WP-R
Brand: PUI Audio, Inc.
SKU: AS01508AO-SC-WP-R
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: AS01508AO-SC-WP-R

Manufacturer:: PUI Audio, Inc.

Category:: Speakers

Package:

Description:: SPEAKER 8OHM 700MW TOP PORT 94DB

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

AS01508AO-SC-WP-R Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: PUI Audio, Inc.

Series:: Slim Line Micro

Packaging:: Tray

Product Status:: Active

Technology:: Magnetic

Type:: General Purpose

Frequency Range:: 500 Hz ~ 14 kHz

Frequency - Self Resonant:: 500Hz

Impedance:: 8 Ohms

Efficiency - dBA:: 94.00

Efficiency - Testing:: 700mW/100mm

Efficiency - Type:: Sound Pressure Level (SPL)

Power - Rated:: 700 mW

Power - Max:: 1 W

Port Location:: Top

Shape:: Rectangular

Material - Cone:: Polyester, Polyethylene Terephthalate (PET)

Material - Magnet:: Nd-Fe-B

Ingress Protection:: IP65 - Dust Tight, Water Resistant

Ratings:: -

Termination:: Spring Type

Size / Dimension:: 0.591" L x 0.433" W (15.00mm x 11.00mm)

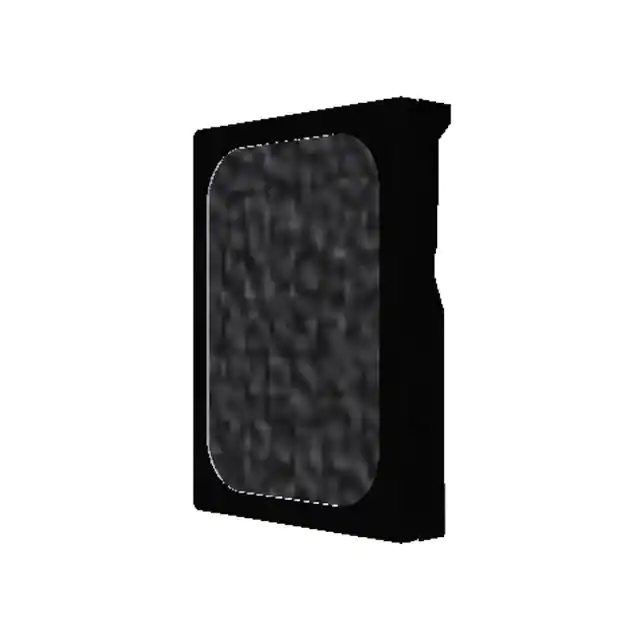

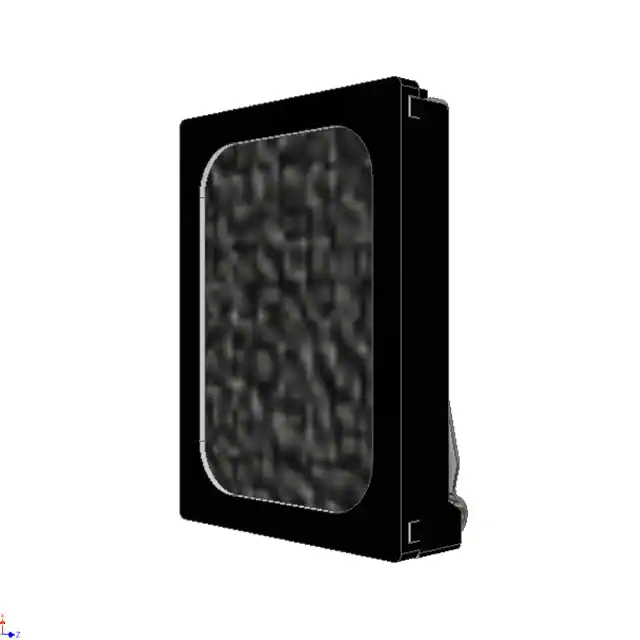

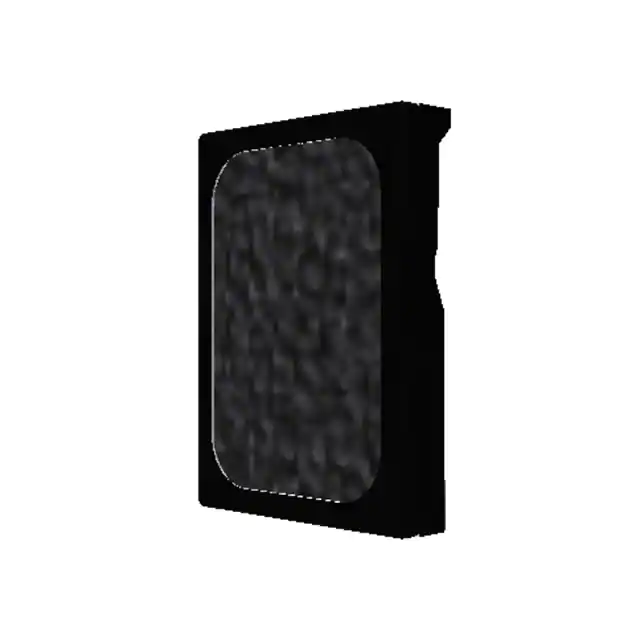

Part Number	AS01508AO-SC-WP-R	AS01508AO-WP-R	AS01508AO-3-SC-R	AS01508AO-3-R
Manufacturer	PUI Audio, Inc.	PUI Audio, Inc.	PUI Audio, Inc.	PUI Audio, Inc.
Series	Slim Line Micro	Slim Line Micro	Slim Line Micro	Slim Line Micro
Packaging	Tray	Tray	Tray	Tray
Product Status	Active	Active	Active	Active
Technology	Magnetic	Magnetic	Magnetic	Magnetic
Type	General Purpose	General Purpose	General Purpose	General Purpose
Frequency Range	500 Hz ~ 14 kHz	500 Hz ~ 14 kHz	500 Hz ~ 14 kHz	500 Hz ~ 14 kHz
Frequency - Self Resonant	500Hz	500Hz	500Hz	500Hz
Impedance	8 Ohms	8 Ohms	8 Ohms	8 Ohms
Efficiency - dBA	94.00	94.00	94.00	94.00
Efficiency - Testing	700mW/100mm	700mW/100mm	700mW/100mm	700mW/100mm
Efficiency - Type	Sound Pressure Level (SPL)	Sound Pressure Level (SPL)	Sound Pressure Level (SPL)	Sound Pressure Level (SPL)
Power - Rated	700 mW	700 mW	700 mW	700 mW
Power - Max	1 W	1 W	1 W	1 W
Port Location	Top	Top	Top	Top
Shape	Rectangular	Rectangular	Rectangular	Rectangular
Material - Cone	Polyester, Polyethylene Terephthalate (PET)	Polyester, Polyethylene Terephthalate (PET)	Polyester, Polyethylene Terephthalate (PET)	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B	Nd-Fe-B	Nd-Fe-B	Nd-Fe-B
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant	-	-
Ratings	-	-	-	-
Termination	Spring Type	Solder Pads	Spring Type	Solder Pads
Size / Dimension	0.591" L x 0.433" W (15.00mm x 11.00mm)	0.591" L x 0.433" W (15.00mm x 11.00mm)	0.591" L x 0.433" W (15.00mm x 11.00mm)	0.591" L x 0.433" W (15.00mm x 11.00mm)
