Panasonic Electric Works ARD10024
- Part No.:
- ARD10024
- Manufacturer:
- Panasonic Electric Works
- Category:
- RF Switches
- Package:
- Module, Pin Contacts
- Datasheet:
-
ARD10024.pdf
- Description:
- IC RF SWITCH SPDT 18GHZ
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ARD10024 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- ARD
- Package/Case:
- Module, Pin Contacts
- Packaging:
- Bulk
- Product Status:
- Active
- RF Type:
- General Purpose
- Topology:
- Reflective
- Circuit:
- SPDT
- Frequency Range:
- 0Hz ~ 18GHz
- Isolation:
- 60dB (min)
- Insertion Loss:
- 0.5dB (max)
- Test Frequency:
- 18GHz
- P1dB:
- -
- IIP3:
- -
- Features:
- -
- Impedance:
- 50Ohm
- Voltage - Supply:
- 24V
- Operating Temperature:
- -55°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- -
- Supplier Device Package:
- -
| Image |  |
|
 |
|

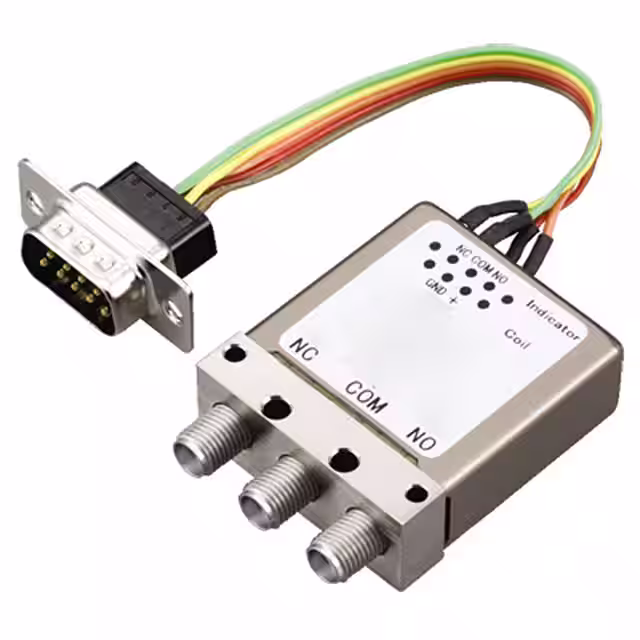

| Part Number | ARD10024 | ARD10024Q | ARD10024C | ARD10024CQ |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | ARD | - | ARD | ARD |
| Package/Case | Module, Pin Contacts | Module, Pin Contacts | Module, Pin Contacts | Module, Pin Contacts |
| Packaging | Bulk | Bulk | Box | Box |
| Product Status | Active | Active | Active | Active |
| RF Type | General Purpose | General Purpose | Cellular | Cellular |
| Topology | Reflective | Reflective | - | - |
| Circuit | SPDT | SPDT | SPDT | SPDT |
| Frequency Range | 0Hz ~ 18GHz | - | 18GHz | 18GHz |
| Isolation | 60dB (min) | - | 60dB (min) | 60dB (min) |
| Insertion Loss | 0.5dB (max) | - | 0.5dB (max) | 0.5dB (max) |
| Test Frequency | 18GHz | - | 18GHz | 18GHz |
| P1dB | - | - | - | - |
| IIP3 | - | - | - | - |
| Features | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | 24V | 24V | 24V | 24V |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C (TA) | -55°C ~ 85°C (TA) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | - | - | - | - |
| Supplier Device Package | - | Module | - | - |
