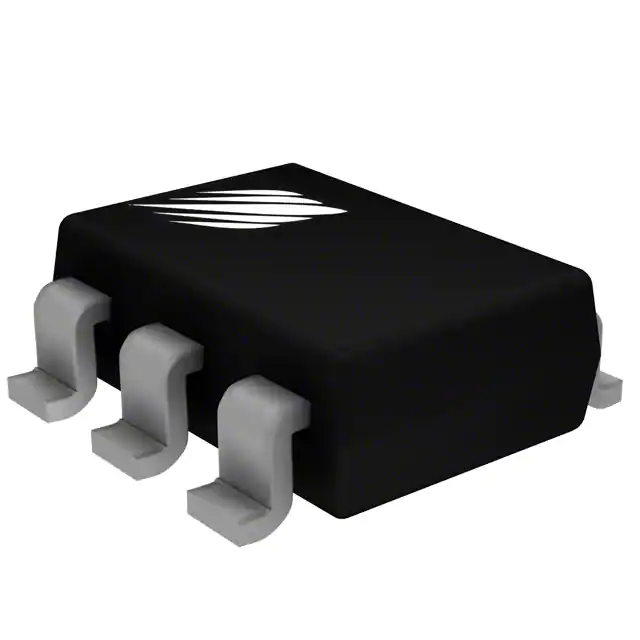

pSemi PE42421SCAA-Z
- Part No.:
- PE42421SCAA-Z
- Manufacturer:
- pSemi
- Category:
- RF Switches
- Package:
- 6-TSSOP, SC-88, SOT-363
- Datasheet:
-
PE42421SCAA-Z.pdf
- Description:
- IC RF SWITCH SPDT 3GHZ SC70-6
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PE42421SCAA-Z Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- pSemi
- Series:
- UltraCMOS®
- Package/Case:
- 6-TSSOP, SC-88, SOT-363
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- RF Type:
- General Purpose
- Topology:
- Reflective
- Circuit:
- SPDT
- Frequency Range:
- 10MHz ~ 3GHz
- Isolation:
- 20dB
- Insertion Loss:
- 0.5dB
- Test Frequency:
- 2GHz
- P1dB:
- 30.5dBm
- IIP3:
- 55dBm
- Features:
- Single/Dual Line Control
- Impedance:
- 50Ohm
- Voltage - Supply:
- 1.8V ~ 3.3V
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SC-70-6
| Image |  |
| Part Number | PE42421SCAA-Z |
| Manufacturer | pSemi |
| Series | UltraCMOS® |
| Package/Case | 6-TSSOP, SC-88, SOT-363 |
| Packaging | Tape & Reel (TR) |
| Product Status | Active |
| RF Type | General Purpose |
| Topology | Reflective |
| Circuit | SPDT |
| Frequency Range | 10MHz ~ 3GHz |
| Isolation | 20dB |
| Insertion Loss | 0.5dB |
| Test Frequency | 2GHz |
| P1dB | 30.5dBm |
| IIP3 | 55dBm |
| Features | Single/Dual Line Control |
| Impedance | 50Ohm |
| Voltage - Supply | 1.8V ~ 3.3V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-6 |
