Chemi-Con APS-100ETD271MHB5S
- Part No.:
- APS-100ETD271MHB5S
- Manufacturer:
- Chemi-Con
- Category:
- Aluminum - Polymer Capacitors
- Package:
- Description:
- CAP ALUM POLY 270UF 20% 10V TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
APS-100ETD271MHB5S Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Chemi-Con
- Series:
- NPCAP™-PS
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Polymer
- Capacitance:
- 270 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 10 V
- ESR (Equivalent Series Resistance):
- 14mOhm
- Lifetime @ Temp.:
- 2000 Hrs @ 105°C
- Operating Temperature:
- -55°C ~ 105°C
- Ratings:
- -
- Applications:
- General Purpose
- Features:
- -
- Ripple Current @ Low Frequency:
- -
- Ripple Current @ High Frequency:
- 4.42 A @ 100 kHz
- Impedance:
- -
- Lead Spacing:
- 0.138" (3.50mm)
- Size / Dimension:
- 0.315" Dia (8.00mm)
- Height - Seated (Max):
- 0.512" (13.00mm)
- Surface Mount Land Size:
- -
- Mounting Type:
- Through Hole
| Image |  |
 |
|
|
 |

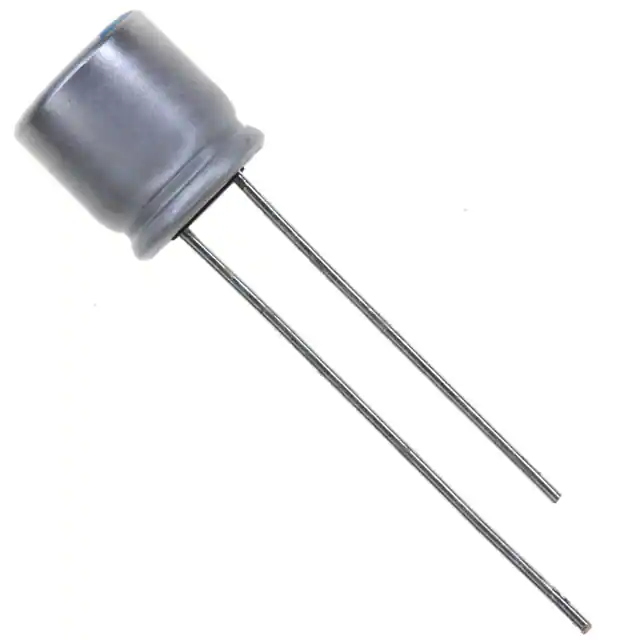

| Part Number | APSG160ELL222MJ20S | APSE6R3ELL471MF08S | APSG160ELL271MF08S | APSG250ELL560MF05S | APSC6R3ELL471MH08S |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Series | NPCAP™-PSG | NPCAP™-PSE | NPCAP™-PSG | NPCAP™-PSG | NPCAP™-PSC |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 2200 µF | 470 µF | 270 µF | 56 µF | 470 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 6.3 V | 16 V | 25 V | 6.3 V |
| ESR (Equivalent Series Resistance) | 8mOhm | 8mOhm | 15mOhm | 30mOhm | 8mOhm |
| Lifetime @ Temp. | 20000 Hrs @ 105°C | 5000 Hrs @ 105°C | 20000 Hrs @ 105°C | 15000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - |
| Ripple Current @ Low Frequency | - | - | - | - | - |
| Ripple Current @ High Frequency | 8.1 A @ 100 kHz | 4.7 A @ 100 kHz | 3.8 A @ 100 kHz | 2.6 A @ 100 kHz | 5.7 A @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.236" (6.00mm) | 0.315" (8.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
