Analog Devices Inc. AD9960BSTZ

The AD9960 MxFE integrates simultaneous I/Q receive sample-and-hold circuits feeding a multiplexed 14-bit ADC and dual 12-bit transmit DACs. Programmable CIC and FIR filters reduce external DSP processing. A shared clock architecture and bidirectional 16-bit data bus support half-duplex operation; the actual clock plan and framing must be designed from the controlled data sheet.

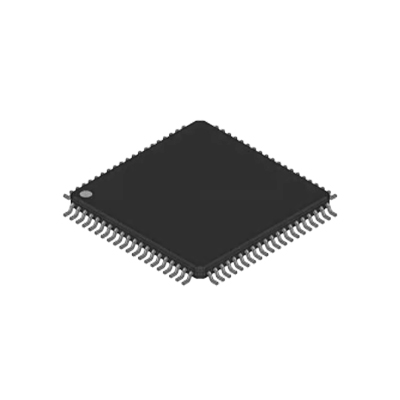

ADI lists AD9960BSTZ as the 80-lead low-profile quad flat package, option ST-80-1. The drawing specifies a nominal 12 mm square body, 14 mm nominal lead span and 0.50 mm lead pitch. Use the controlled outline and pin-one marking for PCB layout; the local 80-LQFP artwork and register entry still require confirmation.

Layout checks

• Match ST-80-1 pin assignment and 0.50 mm pitch.
• Verify pin-one orientation and analog/digital supply segregation.
• Confirm the actual orderable package and assembly finish.

The expected local JPG is missing; this page must remain unpublished.

Pin groups below come from ADI's AD9960 Rev. 0 pin-function table; use the full pin table and drawing for schematic capture.

AVDD/AVSS, DVDD/DVSS, DRVDD/DRVSS and clock rails have separate pins; follow the manufacturer decoupling and return-path guidance.

Limits and typical performance depend on clocking, filters, load and data-sheet test conditions; consult the controlled tables before design release.

No LCDChip alternative is qualified here. A related MxFE device is not automatically interchangeable: compare Rx/Tx resolution and rates, filter architecture, SPI register map, 16-bit bus timing, supply rails, thermal range and exact ST-80-1 pinout. Add an internal product link only after an exact catalog match and engineering comparison.

Analog Devices identifies AD9960BSTZ as a production part and provides the AD9960 Rev. 0 controlled data sheet and ST-80-1 outline. The manufacturer's ordering guide specifies the full BSTZ code for the 80-lead LQFP, −40°C to +85°C version. Verify the current manufacturer ordering status and lot documents before purchase.

Check the manufacturer mark, complete order code, date and lot code, moisture handling and traceable supply chain. The site's inventory and price are maintained in separate catalog fields, not in this engineering description. Obtain a dated authorized distributor quote and verify tier prices before any pricing change or publication.

Use the Analog Devices AD9960 controlled data sheet for electrical and pin-level design. Before publication, confirm the local 80-LQFP package register entry and JPG, reconcile dated authorized stock and tier pricing, inspect the rendered page and complete human review. No substitute or release approval is implied.
