TE Connectivity AMP Connectors 6-1393302-3
- Part No.:
- 6-1393302-3
- Manufacturer:
- TE Connectivity AMP Connectors
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
6-1393302-3.pdf
- Description:
- RELAY AUTOMOTIVE SPDT 60A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
6-1393302-3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity AMP Connectors
- Series:
- F4
- Packaging:
- Bulk
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- -
- Coil Voltage:
- 24VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 60 A
- Switching Voltage:
- 24VDC - Nom
- Must Operate Voltage:
- 14.4 VDC
- Must Release Voltage:
- 3.2 VDC
- Operate Time:
- 7 ms
- Release Time:
- 2 ms
- Features:
- -
- Mounting Type:
- Socketable
- Termination Style:
- Plug In, Quick Connect - 0.250" (6.3mm)
- Operating Temperature:
- -40°C ~ 125°C
| Image |  |
 |
 |
 |
|

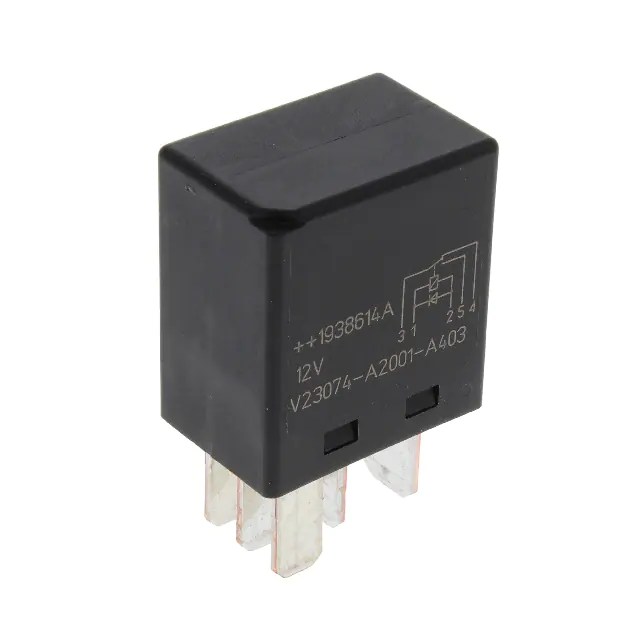

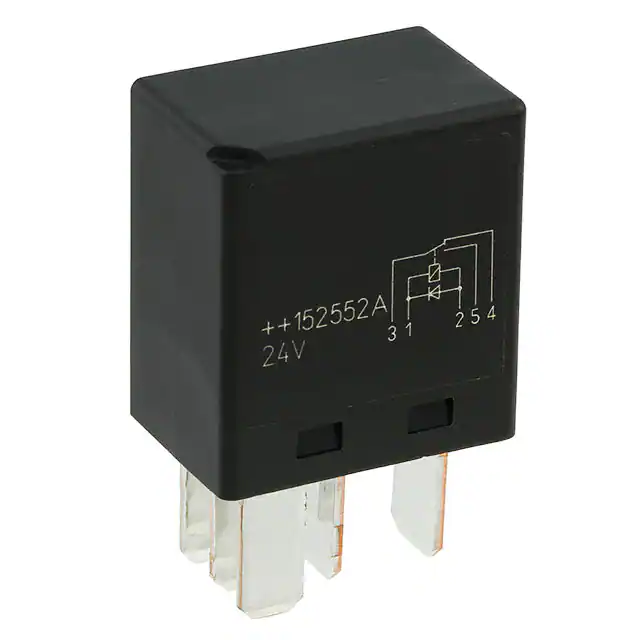

| Part Number | 6-1393302-3 | 6-1419137-4 | 6-1393292-3 | 6-1393302-4 | 6-1393302-1 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Series | F4 | - | Micro Relay A | F4 | V23134, AXICOM |
| Packaging | Bulk | Bulk | Bulk | Bulk | Box |
| Product Status | Active | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | - | 100.8 mA | - | - | 133.3 mA |
| Coil Voltage | 24VDC | 12VDC | 24VDC | 24VDC | 12VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | - |
| Contact Rating (Current) | 60 A | 25 A | 30 A | 60 A | - |
| Switching Voltage | 24VDC - Nom | 14VDC - Nom | 24VDC - Nom | 24VDC - Nom | - |
| Must Operate Voltage | 14.4 VDC | 7.2 VDC | 14.4 VDC | 14.4 VDC | 7.2 VDC |
| Must Release Voltage | 3.2 VDC | 1.6 VDC | 3.6 VDC | 3.2 VDC | 1.6 VDC |
| Operate Time | 7 ms | 6 ms | - | 7 ms | 7 ms |
| Release Time | 2 ms | 3 ms | - | 2 ms | 2 ms |
| Features | - | Diode | Diode | Resistor | - |
| Mounting Type | Socketable | Socketable | Socketable | Socketable | - |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) | Plug In | Plug In, Quick Connect - Multiple Sizes | Plug In, Quick Connect - 0.250" (6.3mm) | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
