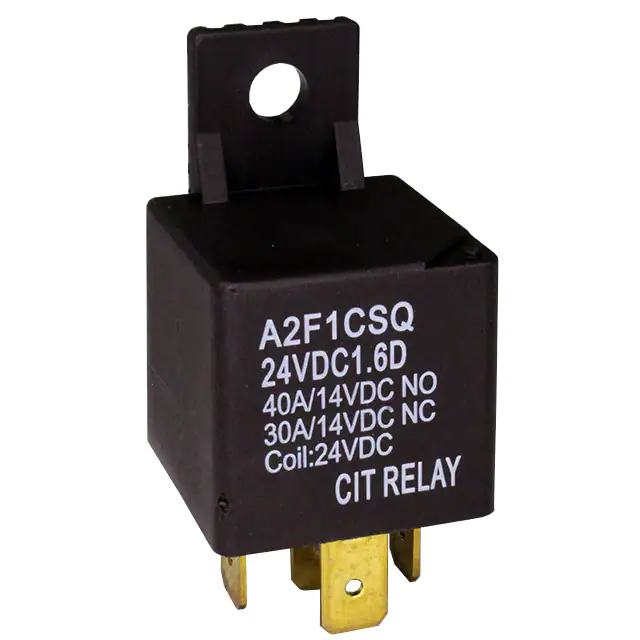

CIT Relay and Switch A2F1CSQ24VDC1.6D
- Part No.:
- A2F1CSQ24VDC1.6D
- Manufacturer:
- CIT Relay and Switch
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
A2F1CSQ24VDC1.6D.pdf
- Description:
- RELAY AUTOMOTIVE SPDT 40A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
A2F1CSQ24VDC1.6D Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CIT Relay and Switch
- Series:
- A2
- Packaging:
- Tray
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 66.7 mA
- Coil Voltage:
- 24VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 40 A
- Switching Voltage:
- 75VDC - Max
- Must Operate Voltage:
- 16.8 VDC
- Must Release Voltage:
- 2.4 VDC
- Operate Time:
- 7 ms
- Release Time:
- 5 ms
- Features:
- Diode, Sealed - Fully
- Mounting Type:
- Chassis Mount
- Termination Style:
- Quick Connect - 0.250" (6.3mm)
- Operating Temperature:
- -40°C ~ 125°C
| Image |  |
 |
 |
 |
|

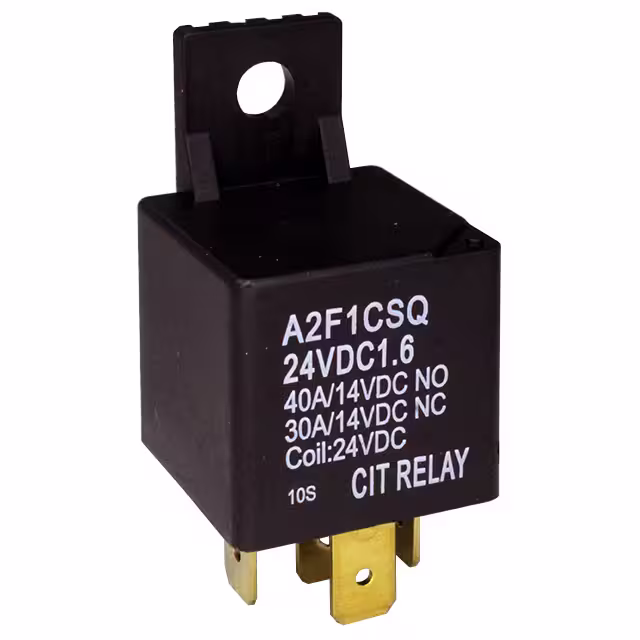

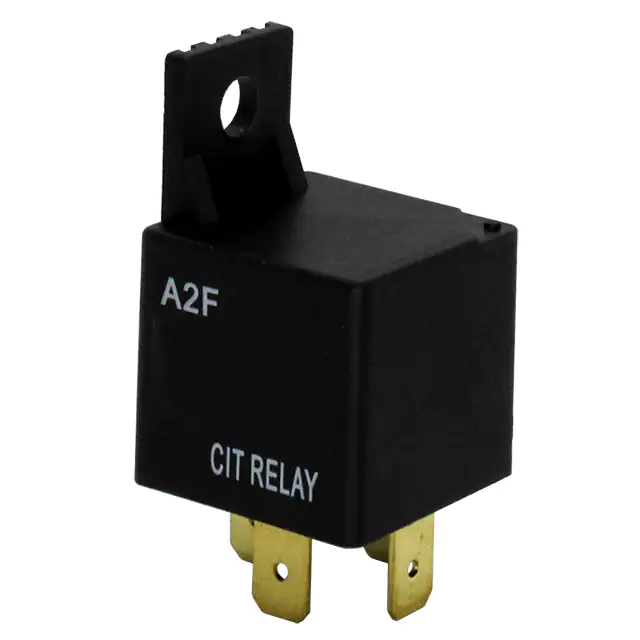

| Part Number | A2F1CSQ24VDC1.6D | A2F1CSQ24VDC1.6 | A2F1CSQ24VDC1.6R | A2F1CSQ24VDC1.9R | A2F1CSQ24VDC1.9 |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| Series | A2 | A2 | A2 | A2 | A2 |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 66.7 mA | 66.7 mA | 66.7 mA | 79.2 mA | 79.2 mA |
| Coil Voltage | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 40 A | 40 A | 40 A | 40 A | 40 A |
| Switching Voltage | 75VDC - Max | 75VDC - Max | 75VDC - Max | 75VDC - Max | 75VDC - Max |
| Must Operate Voltage | 16.8 VDC | 16.8 VDC | 16.8 VDC | 16.8 VDC | 16.8 VDC |
| Must Release Voltage | 2.4 VDC | 2.4 VDC | 2.4 VDC | 2.4 VDC | 2.4 VDC |
| Operate Time | 7 ms | 7 ms | 7 ms | 7 ms | 7 ms |
| Release Time | 5 ms | 5 ms | 5 ms | 5 ms | 5 ms |
| Features | Diode, Sealed - Fully | Sealed - Fully | Resistor, Sealed - Fully | Resistor, Sealed - Fully | Sealed - Fully |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
