Omron Electronics Inc-EMC Div G8N-1L-AS DC12
- Part No.:
- G8N-1L-AS DC12
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
G8N-1L-AS DC12.pdf
- Description:
- RELAY AUTOMOTIVE SPDT 30A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G8N-1L-AS DC12 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Series:
- G8N-1
- Packaging:
- Bulk
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 53.3 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 30 A
- Switching Voltage:
- 16VDC - Max
- Must Operate Voltage:
- 7.2 VDC
- Must Release Voltage:
- 1 VDC
- Operate Time:
- 10 ms
- Release Time:
- 10 ms
- Features:
- -
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Operating Temperature:
- -40°C ~ 105°C
| Image |  |
|
|
 |
|

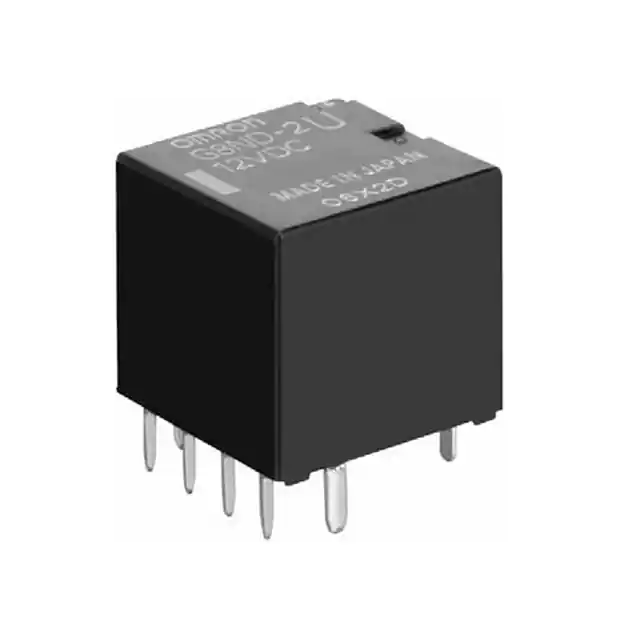

| Part Number | G8N-1L-AS DC12 | G8N-1H-AS DC12 | G8NW-2H DC12 | G8ND-2S-DC12 | G8ND-2-DC12 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Series | G8N-1 | G8N-1 | G8NW-2 | G8ND-2 | G8ND-2 |
| Packaging | Bulk | Tray | Tray | Tube | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 53.3 mA | 66.7 mA | 66.7 mA | 66.7 mA | 53.3 mA |
| Coil Voltage | 12VDC | 12VDC | 12VDC | 12VDC | 12VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) x 2 | SPDT (1 Form C) x 2 | SPDT (1 Form C) x 2 |
| Contact Rating (Current) | 30 A | 30 A | 30 A | 30 A | 30 A |
| Switching Voltage | 16VDC - Max | 16VDC - Max | 16VDC - Max | 16VDC - Max | 16VDC - Max |
| Must Operate Voltage | 7.2 VDC | 6.5 VDC | 6.5 VDC | 6.5 VDC | 7.2 VDC |
| Must Release Voltage | 1 VDC | 1 VDC | 1 VDC | 1 VDC | 1 VDC |
| Operate Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Release Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C |
