TIoT-3566X RK3566 Industrial AIoT Controller Board with 1 TOPS NPU

Industrial-Grade Construction

The TIoT-3566X uses corrosion-resistant immersion-gold processing on key PCB contacts and a secure four-point mounting design. The board has undergone multiple reliability tests and is designed to support stable continuous operation in commercial and industrial terminal equipment.

RK3566 Quad-Core Processor

The Rockchip RK3566 integrates four 64-bit ARM Cortex-A55 CPU cores with a maximum clock speed of up to 1.8 GHz. It combines low power consumption with efficient computing performance for multimedia, interactive terminal and industrial control applications.

Integrated 1 TOPS NPU

The independent neural processing unit provides up to 1 TOPS of AI computing performance. It can support compatible edge AI applications such as image recognition, intelligent analysis, visual processing and terminal-side inference.

Multiple Operating Systems

Android 11 is supported as the standard operating system. Linux and OpenHarmony adaptation can also be provided according to project requirements, offering flexible software deployment for commercial and industrial applications.

Multiple LCD Display Interfaces

The board supports compatible LCD panels through LVDS, eDP and MIPI display interfaces. It can directly drive Full HD LCD panels, helping simplify the integration of advertising screens, interactive displays and embedded intelligent terminals.

Full HD LVDS and eDP Output

One single-channel or dual-channel LVDS interface supports compatible LCD panels with resolutions up to 1920 × 1080. The eDP interface can also directly drive compatible Full HD eDP LCD panels.

Broad Touch-Screen Compatibility

The TIoT-3566X supports infrared, optical, capacitive, resistive and touch-film solutions. Compatible HID touch-screen devices support driver-free plug-and-play operation without complicated installation or debugging.

Powerful Graphics and Video Processing

The integrated dual-core ARM Mali-G52 GPU, high-performance VPU and 2D acceleration engine provide efficient image rendering and video processing. The platform supports H.265 and H.264 video encoding at up to 1080p and 60 frames per second.

USB and MIPI Camera Support

The board supports compatible USB monocular and binocular cameras as well as MIPI cameras. The MIPI camera interface supports 1 × 4-lane or 2 × 2-lane configurations at up to 2.5 Gbps per lane, with camera resolutions up to 8 megapixels.

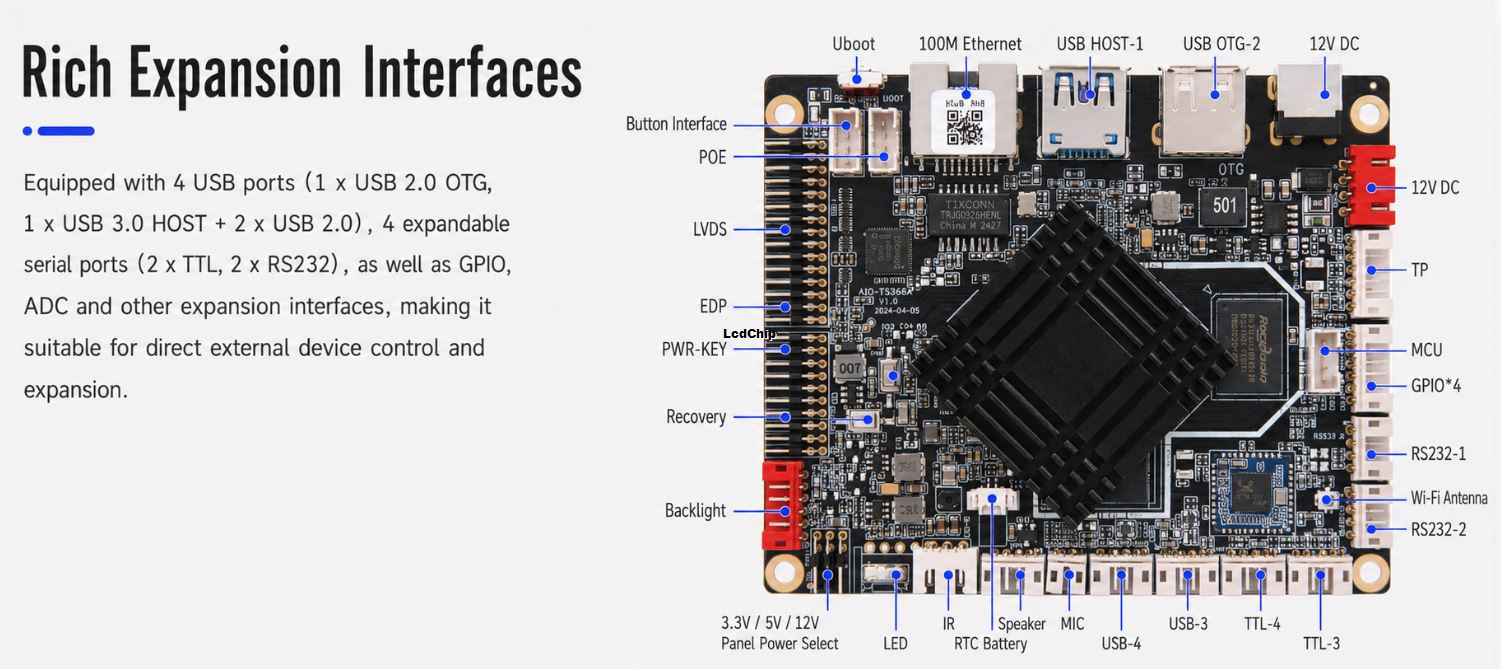

Rich USB Expansion

• 1 × USB 3.0 HOST interface
• 1 × USB 2.0 OTG interface
• 2 × USB 2.0 HOST interfaces
• High-speed storage device support
• USB camera and peripheral support

Industrial Serial Interfaces

• 2 × RS232 serial ports
• 2 × TTL serial ports
• 1 × DEBUG interface
• 4 × GPIO interfaces
• 1 × ADC interface
• 1 × infrared interface

Flexible Network Connectivity

The TIoT-3566X supports 10/100 Mbps auto-negotiation Ethernet, built-in Wi-Fi and Bluetooth 4.2. The standard wireless configuration supports 2.4 GHz Wi-Fi, while a 5 GHz-compatible configuration may be available depending on the wireless module.

Compact Embedded Design

With compact dimensions of 100 × 80 mm, the board integrates AI computing, display control, camera access, industrial communication and network connectivity in a space-efficient platform suitable for embedded intelligent equipment.

Android System Customization

Android system customization, hardware control APIs and reference code can be provided to support upper-layer APP development, external device control, function integration and customized project deployment.
