ToT-3568CR RK3568 Dual-Screen AI POS Controller Board with 1 TOPS NPU

Compact Board Design

The ToT-3568CR uses an ultra-thin compact board design measuring only 120 × 90 mm. It is well suited for space-limited dual-screen POS terminals, smart weighing scales and integrated retail equipment.

RK3568 Quad-Core Processor

The Rockchip RK3568 integrates four 64-bit ARM Cortex-A55 CPU cores with a maximum clock speed of up to 2.0 GHz. Its advanced 22 nm process delivers a balance of high performance and low power consumption.

Integrated 1 TOPS NPU

The integrated neural processing unit provides up to 1 TOPS of AI computing performance, supporting compatible intelligent recognition, image analysis and AI checkout applications.

Dual-Screen Independent Display

The board provides two eDP display interfaces and one MIPI display interface. Multiple screen combinations can be configured to support independent content on two displays for operator and customer screens.

Independent Dual-Touch Support

The ToT-3568CR supports dual-screen, dual-display and dual-touch applications. Compatible HID touch panels can operate without additional drivers or complicated debugging.

Broad Touch-Screen Compatibility

Compatible touch solutions include capacitive, infrared, optical, resistive and touch-film technologies, making the board suitable for a wide range of retail and self-service equipment.

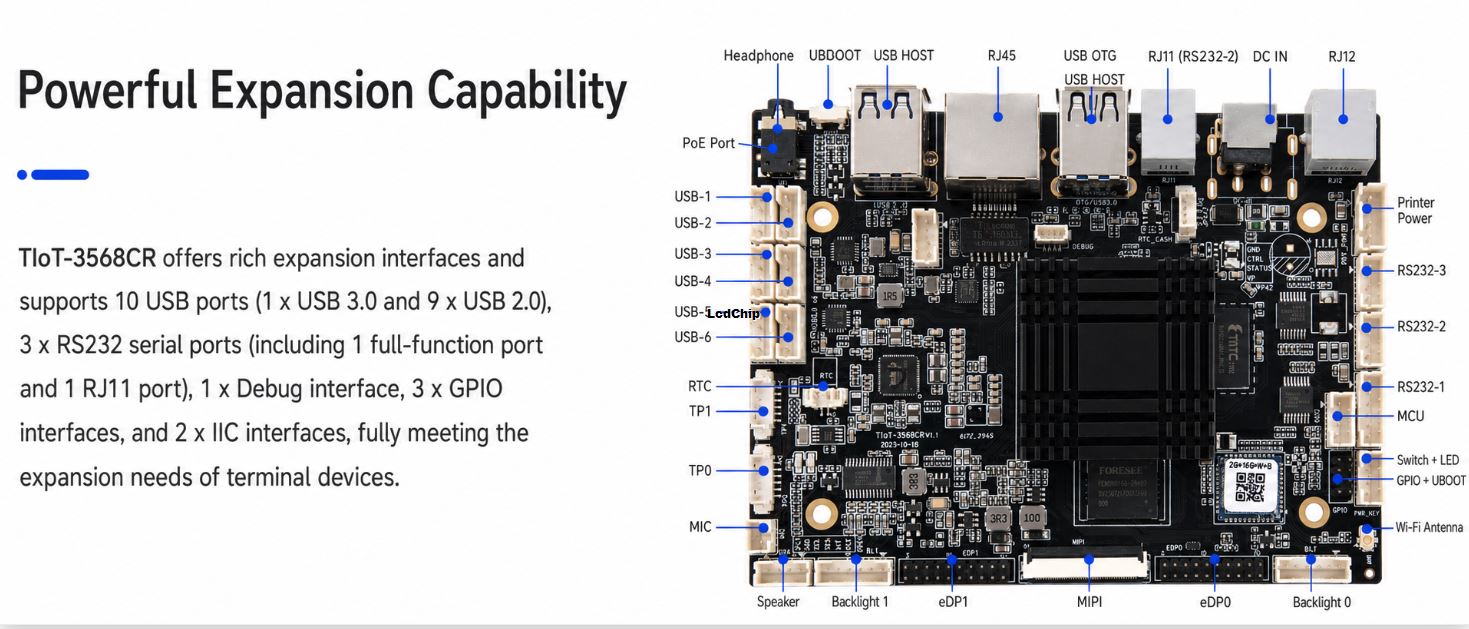

Ten USB Interfaces

• 1 × USB 3.0 interface
• 9 × USB 2.0 interfaces
• Barcode scanner support
• Camera and weighing module support
• Keyboard, printer and payment peripheral support

Rich Industrial Expansion

• 3 × RS232 serial interfaces
• 1 × full-function RS232 interface
• 1 × RJ11 interface
• 1 × DEBUG interface
• 3 × GPIO interfaces
• 2 × I²C interfaces

Integrated Printer Power Supply

Printer power circuitry is integrated on the board, allowing a compatible thermal printer mechanism to be installed directly. This helps simplify POS terminal design and reduce external wiring.

Optional PoE Power Expansion

The board supports connection to an external PoE power module and provides a 12 V / 1 A output for compatible peripheral equipment, subject to the selected PoE and power configuration.

Flexible Network Communication

The ToT-3568CR supports 10/100 Mbps auto-negotiation Ethernet, built-in Wi-Fi and Bluetooth 4.2, providing flexible wired and wireless communication for retail and payment terminal deployment.

Multiple Operating System Options

Android 11 is provided as the standard operating system. Linux and multiple domestic operating systems can be adapted according to project requirements.

System Customization and APIs

Customized operating-system functions, system APIs and reference code can be provided to support upper-layer APP development, peripheral control and project-specific function integration.

ShiMetaOS Customization Platform

ShiMetaOS is preinstalled with industry APIs and commonly used terminal functions. Customers can configure, remotely debug, back up and clone devices through a clear and easy-to-use system.

Low-Code and No-Code Development

Integrated industry functions and configurable system services help customers develop and deploy retail terminal products using low-code or no-code methods, shortening project delivery time.

Designed for Smart Retail

The compact form factor, dual-screen support, rich USB expansion, printer integration and AI computing capability make the board suitable for POS machines, AI scales and intelligent checkout systems.
