TIoT-3588SE RK3588S Triple-Display AI Edge Controller Board with 6 TOPS NPU

Compact Board Design

The TIoT-3588SE measures only 125 × 85 mm, providing high-performance computing, AI, display and networking functions in a compact form factor suitable for space-constrained intelligent self-service terminals and embedded devices.

RK3588S Octa-Core Processor

The Rockchip RK3588S octa-core 64-bit processor uses an advanced 8 nm low-power manufacturing process and operates at frequencies up to 2.4 GHz. It provides strong multitasking performance for multimedia, AI inference and complex terminal applications.

Mali-G610 MP4 Graphics

The integrated ARM Mali-G610 MP4 quad-core GPU delivers powerful graphics rendering and multimedia performance for interactive applications, multi-screen interfaces and high-resolution commercial display systems.

Integrated 6 TOPS NPU

The integrated neural processing unit provides up to 6 TOPS of AI computing performance, supporting compatible edge AI applications such as visual recognition, image analysis, object detection and intelligent interaction.

Independent Triple-Screen Display

The board provides LVDS, eDP and MIPI display interfaces. Compatible display combinations can show different content on three screens simultaneously, supporting multi-screen commercial and industrial terminal systems.

LVDS Display Output

One LVDS interface supports single-channel or dual-channel 6-bit and 8-bit configurations and can directly drive compatible 50 Hz or 60 Hz LCD panels with resolutions up to 1920 × 1080.

High-Resolution eDP Output

One eDP interface can directly drive compatible eDP LCD panels with multiple resolutions. Depending on the panel, firmware and interface configuration, resolutions up to 3840 × 2160 may be supported.

MIPI DSI Display Output

One MIPI display interface supports compatible MIPI LCD panels. A resolution of 800 × 1280 has been validated, while additional resolutions may be supported through customized firmware and timing.

USB Camera Support

The platform supports compatible USB monocular and binocular cameras for facial recognition, identity verification, visual analysis and other intelligent terminal functions.

Up to 48MP MIPI Camera

The MIPI camera interface supports a 1 × 4-lane configuration at up to 2.5 Gbps per lane. Compatible MIPI camera modules with resolutions up to 48 megapixels, including 8064 × 6048, may be supported.

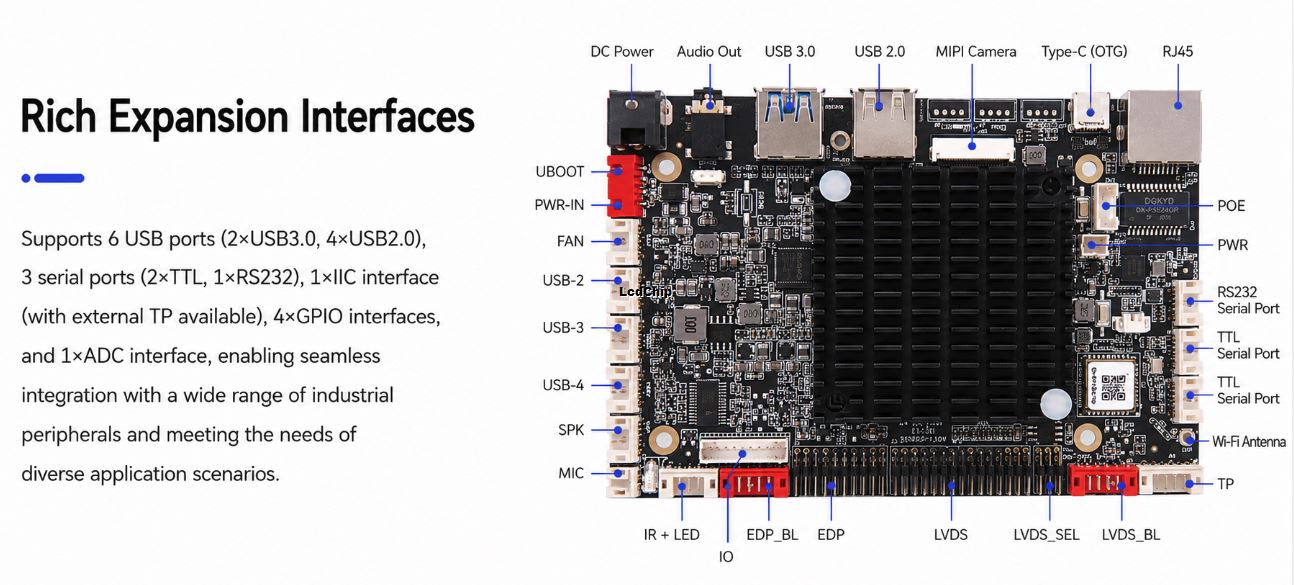

Six USB Interfaces

• 1 × USB 3.0 Type-C OTG interface
• 1 × USB 3.0 HOST interface
• 4 × USB 2.0 HOST interfaces
• Camera and scanner support
• USB storage and peripheral support

Industrial Serial Expansion

• 1 × RS232 serial interface
• 2 × TTL serial interfaces
• 4 × GPIO interfaces
• 1 × ADC interface
• 1 × I²C peripheral interface

Gigabit Ethernet

The integrated Ethernet interface supports 10/100/1000 Mbps auto-negotiation, providing stable high-speed wired networking for cloud communication, AI data transmission, remote management and multimedia content delivery.

Wi-Fi and Bluetooth 5.0

Built-in Wi-Fi and Bluetooth 5.0 provide reliable wireless network access and peripheral connectivity for intelligent terminals, industrial tablets and robotic devices.

Android, Linux and OpenHarmony

Android 12 is provided as the standard operating system. Linux and OpenHarmony adaptation may also be supported according to the selected firmware and project configuration.

Deep System Customization

Customized operating-system functions, hardware-control APIs and reference code can be provided to support upper-layer APP development, AI deployment, peripheral integration and customized terminal projects.

Flexible Audio Functions

The board provides stereo left and right speaker output with a default amplifier configuration of 2 × 6 W. It can be configured up to 2 × 10 W through customized hardware modification. Microphone and headphone interfaces are also supported.

Local USB System Upgrade

Local firmware upgrades are supported through a USB flash drive, simplifying system deployment, software maintenance and version updates for commercial terminal projects.
