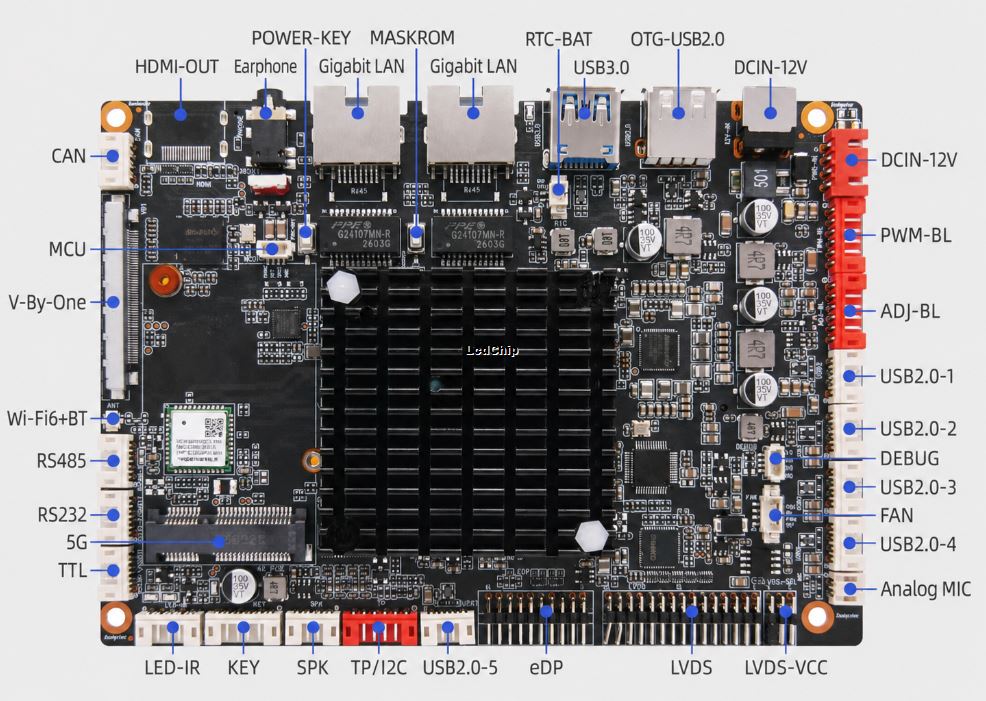

TIoT-3576EV RK3576 AI Terminal Board for 4K Interactive Large-Screen Devices
The LcdChip TIoT-3576EV is a new-generation AI terminal motherboard designed for interactive commercial large-screen equipment. Built on the Rockchip RK3576 octa-core platform, it integrates a 6 TOPS NPU, Android 14 system support, 4K @ 120Hz display output, dual Gigabit Ethernet, Wi-Fi 6 + Bluetooth, rich industrial interfaces and 7 × 24-hour commercial operation capability. It is ideal for AI digital humans, sports mirrors, smart signage, AI body measurement terminals, service robots and edge AI display controllers.
New Product Release for AI Large-Screen Terminals
With the rapid growth of commercial interactive displays, AI digital humans, smart fitness mirrors, AI health measurement terminals, service robots and intelligent signage systems require stronger edge AI computing, higher display bandwidth, stable multi-network communication, flexible I/O expansion and continuous 7 × 24-hour operation. TIoT-3576EV is developed to meet these requirements in one integrated AI terminal board.
Six Core Advantages of TIoT-3576EV
6 TOPS AI Computing
Native NPU computing power for local AI inference and real-time interaction.
Expandable AI Capability
M.2 expansion can support additional computing or storage modules according to project design.
4K@120Hz Large-Screen Output
V-By-One or optional HDMI output supports high-refresh commercial display scenarios.
Dual Gigabit Ethernet
Two independent 1000M Ethernet ports for robots, AI terminals and sensor-network systems.
Richest RK3576 I/O Design
Seven USB ports, RS232, RS485, CAN, TTL, GPIO, audio and control interfaces.
7 × 24-Hour Commercial Reliability
Designed for long-term stable operation in gyms, malls, exhibition halls and public spaces.
6 TOPS NPU + M.2 Expansion for Heavy AI Workloads
TIoT-3576EV adopts the RK3576 octa-core processor with 4 × Cortex-A72 and 4 × Cortex-A53 architecture, 8nm process and up to 2.2GHz frequency. The integrated 6 TOPS NPU supports local AI inference for AI digital human interaction, body measurement, posture correction, motion recognition, passenger-flow statistics, voice Q&A and other edge AI workloads without relying only on cloud computing.
V-By-One Display Output for Direct 4K Large-Screen Driving
TIoT-3576EV is optimized for commercial large-screen display products. The V-By-One display path can directly drive large-size 4K panels, reducing signal conversion loss and simplifying internal wiring. Optional HDMI output can also be configured for 4K @ 120Hz display requirements, depending on project design.
Complete Backlight, Touch and Panel Control Interfaces
For large-screen equipment integration, the board provides PWM-BL backlight control, ADJ-BL brightness adjustment, LVDS-VCC panel power, TP / I²C touch interface and related display-control resources. These interfaces help simplify the internal structure of AI fitness mirrors, large interactive signage, smart body measurement terminals and commercial display systems.
Dual Gigabit Ethernet for Robots and AI Equipment
Dual independent Gigabit Ethernet is a key requirement for many AI service robots, smart fitness devices and AI body measurement terminals. TIoT-3576EV supports two 1000M Ethernet ports, enabling physical separation between internal sensor data and external cloud communication. This helps improve communication stability and makes deployment easier in gyms, malls, exhibition halls, public-service locations and outdoor commercial environments.
Separate Internal and External Networks
One Ethernet port can connect body measurement sensors, robot modules or control devices, while the other port connects cloud platforms, remote maintenance systems or external networks.
Wired + Wireless + Cellular Expansion
With dual Gigabit Ethernet, Wi-Fi 6 + Bluetooth and reserved expansion for 4G / 5G modules, the board supports flexible multi-link networking.
Richest RK3576-Series Interface Design
TIoT-3576EV is designed as a highly integrated RK3576 AI large-screen motherboard with rich peripheral resources. It can connect cameras, scanners, body-sensing modules, printers, touch modules, industrial sensors, communication modules, speakers, microphones, keys, infrared control modules and cooling fans without adding multiple extra adapter boards.
Industrial Durability for 7 × 24-Hour Commercial Operation
TIoT-3576EV is designed for continuous commercial operation in demanding environments. With 12V standard power input, stable power design and protection-oriented circuit planning, it is suitable for malls, gyms, exhibition halls, government-service halls and other sites that require long-term operation under high workload.
Stable Long-Term Operation
Suitable for 7 × 24-hour display terminals, AI terminals, robots and commercial interactive equipment.
Commercial Deployment Ready
Designed for high-load operation, multi-interface connection, stable display output and reliable networking.
Typical Application Scenarios
TIoT-3576EV precisely matches the needs of interactive large-screen AI terminal products, especially devices requiring dual Gigabit Ethernet, 4K large-screen output, expandable AI computing and rich peripheral connectivity.
TIoT-3576EV Main Specifications
| Product Model | TIoT-3576EV |
|---|---|
| Processor | Rockchip RK3576 octa-core processor |
| CPU Architecture | 4 × Cortex-A72 + 4 × Cortex-A53, up to 2.2GHz, 8nm process |
| NPU | 6 TOPS AI computing power, supporting Transformer acceleration and mixed-precision AI inference |
| GPU | Mali-G52 MC3 GPU for 4K display and smooth graphics rendering |
| Operating System | Android 14, with customization support according to project requirements |
| Display Output | V-By-One direct 4K large-screen output; optional HDMI-OUT; LVDS and eDP display interface support; dual-screen different display supported according to configuration |
| Resolution | Up to 4K @ 120Hz depending on display interface and configuration |
| USB | 7 USB interfaces, including USB 3.0, OTG USB 2.0 and multiple USB 2.0 Host ports |
| Network | Dual 1000M Gigabit Ethernet, Wi-Fi 6 + Bluetooth, 4G / 5G module expansion support |
| Industrial Bus | RS232, RS485, CAN and TTL interfaces for industrial sensors and control modules |
| Audio | Stereo speaker output up to 10W by configuration, analog microphone input and earphone interface |
| Control Interfaces | LED-IR, KEY, FAN, PWM-BL, ADJ-BL, TP / I²C, LVDS-VCC, RTC battery and debug interface |
| Power Input | DC 12V |
| Target Applications | AI digital humans, AI body measurement terminals, service robots, smart fitness mirrors, interactive digital signage, AI photo kiosks, smart interactive tables and edge AI display-control terminals |
LcdChip One-Stop Customization Support
LcdChip focuses on AIoT and large-screen embedded hardware solutions. Based on the TIoT-3576EV platform, LcdChip can support hardware customization, firmware adaptation, algorithm integration, interface configuration and complete product solution cooperation for equipment manufacturers and system integrators.
