TIoT-3588A RK3588 8K Four-Screen AI Edge Controller Board with 6 TOPS NPU

Flagship RK3588 Processor

The RK3588 integrates four high-performance Cortex-A76 cores and four power-efficient Cortex-A55 cores. With a maximum frequency of 2.4 GHz, it provides strong multitasking, multimedia and edge-computing performance.

6 TOPS AI Computing Power

The integrated NPU delivers up to 6 TOPS of AI performance and supports compatible INT4, INT8 and INT16 mixed-precision operations for edge inference applications.

AI Framework Support

Compatible models based on TensorFlow, MXNet, PyTorch, Caffe, PaddlePaddle and other mainstream AI frameworks can be converted and deployed through the supported development platform.

8K HDMI Ultra-HD Output

One standard Type-A HDMI output supports resolutions up to 7680 × 4320 at 60 Hz, providing detailed ultra-high-definition output for compatible displays and intelligent terminals.

4K HDMI Video Input

One standard Type-A HDMI input supports video signals up to 4K at 60 Hz for external computers, cameras, media players and compatible video-processing applications.

Powerful Video Processing

The platform supports H.265 and VP9 decoding at up to 8K at 60 fps and H.265 or H.264 encoding at up to 8K at 30 fps, including simultaneous encoding and decoding.

Multi-Channel Video Capability

Under compatible software configurations, the multimedia engine can support up to 32 channels of 1080p at 30 fps decoding and up to 16 channels of 1080p at 30 fps encoding.

Independent Four-Screen Display

Compatible HDMI, LVDS, MIPI and V-by-One interfaces can display different content on four screens simultaneously, improving flexibility for customized multi-screen terminals.

V-by-One 4K Output

One V-by-One interface can directly drive compatible VBO LCD panels with resolutions up to 3840 × 2160.

LVDS and MIPI Display Support

One LVDS interface supports compatible single-channel or dual-channel 8-bit panels. One MIPI interface supports compatible LCD panels with multiple resolutions.

Optional eDP Display Output

An optional eDP output can directly drive compatible eDP panels. The optional eDP output and HDMI output are mutually exclusive and depend on the selected hardware configuration.

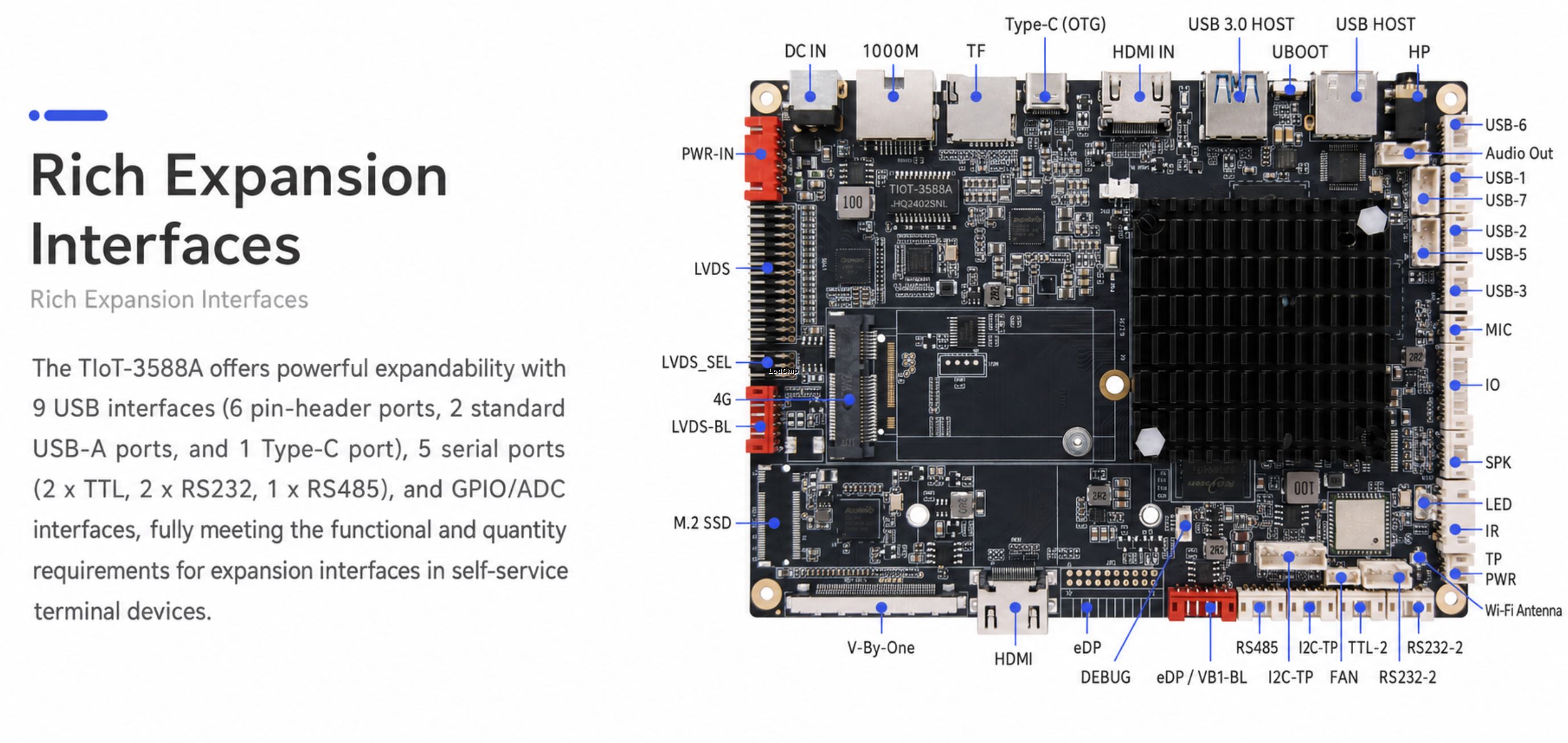

Nine USB Interfaces

• 1 × USB 3.0 Type-C interface
• 2 × standard USB-A interfaces
• 6 × internal USB pin-header interfaces
• USB camera, storage and peripheral support

Industrial Serial Expansion

• 2 × RS232 interfaces
• 2 × TTL interfaces
• 1 × RS485 interface
• GPIO and ADC interfaces
• 1 × I²C peripheral interface

Flexible Storage Expansion

The board supports USB flash drives, TF cards, M.2 SSDs and SATA storage devices, allowing large-capacity local storage for applications, video files and AI data.

USB and MIPI Cameras

Compatible USB monocular and binocular cameras are supported. The MIPI camera interface supports 1 × 2-lane or 2 × 2-lane configurations at up to 2.5 Gbps per lane.

Up to 5MP MIPI Camera

Compatible MIPI camera modules with resolutions up to 5 megapixels can be supported. Maximum resolution depends on the available lane configuration and camera module.

Advanced Network Connectivity

The TIoT-3588A supports Gigabit Ethernet, 2.4 GHz and 5 GHz dual-band Wi-Fi, Bluetooth 5.0 and compatible Mini PCI-E 4G modules.

Multiple Operating Systems

Android 12 is provided as the standard operating system. Linux, OpenHarmony, Kylin OS and UnionTech UOS adaptation may also be supported according to project requirements.

Deep System Customization

Operating-system customization, hardware-control APIs and reference code can be provided to support upper-layer application development and customized terminal integration.
