TIoT-527EH Allwinner A527 Octa-Core AIoT Controller Board with Android 13 and OpenHarmony

Octa-Core 64-Bit Processor

The TIoT-527EH uses the Allwinner A527 processor featuring eight 64-bit ARM Cortex-A55 CPU cores and a maximum clock speed of up to 1.8 GHz. It provides smooth multitasking and efficient computing performance for intelligent terminal and edge AIoT applications.

Integrated 2.0 TOPS NPU

The integrated neural processing unit provides up to 2.0 TOPS of AI computing performance. It can support compatible edge inference applications such as image recognition, intelligent analysis, face-related algorithms and visual data processing.

Android 13 and OpenHarmony

The board supports Android 13 and OpenHarmony operating systems, providing flexible software deployment and a stable development environment for commercial terminals, domestic platform projects and customized intelligent equipment.

Multi-Screen Independent Display

HDMI, LVDS, MIPI and eDP display interfaces are available. Compatible firmware and display configurations can support up to four screens with different content, meeting the requirements of multi-screen terminals and complex information display systems.

4K HDMI Display Output

One standard Type-A HDMI output supports resolutions up to 3840 × 2160 at 60 Hz, providing detailed ultra-high-definition video and image output for commercial displays and intelligent information terminals.

LVDS, MIPI and eDP Output

The board provides LVDS, MIPI and eDP display interfaces for directly driving compatible LCD panels. This broad panel compatibility simplifies integration into display equipment with different sizes, resolutions and interface standards.

Optional HDMI Input

A customized HDMI input version is available with one standard Type-A female port supporting video input up to 1080p at 60 Hz. It can be used for external video sources, signal switching and interactive display applications.

Extensive Touch-Screen Compatibility

The TIoT-527EH supports infrared, optical, capacitive, resistive and touch-film solutions. Compatible HID touch devices support driver-free plug-and-play operation without complicated installation or debugging.

USB and MIPI Camera Support

The board supports USB monocular and binocular cameras as well as MIPI cameras. The MIPI interface supports one four-lane connection at up to 1.5 Gbps per lane and camera resolutions up to 8 megapixels.

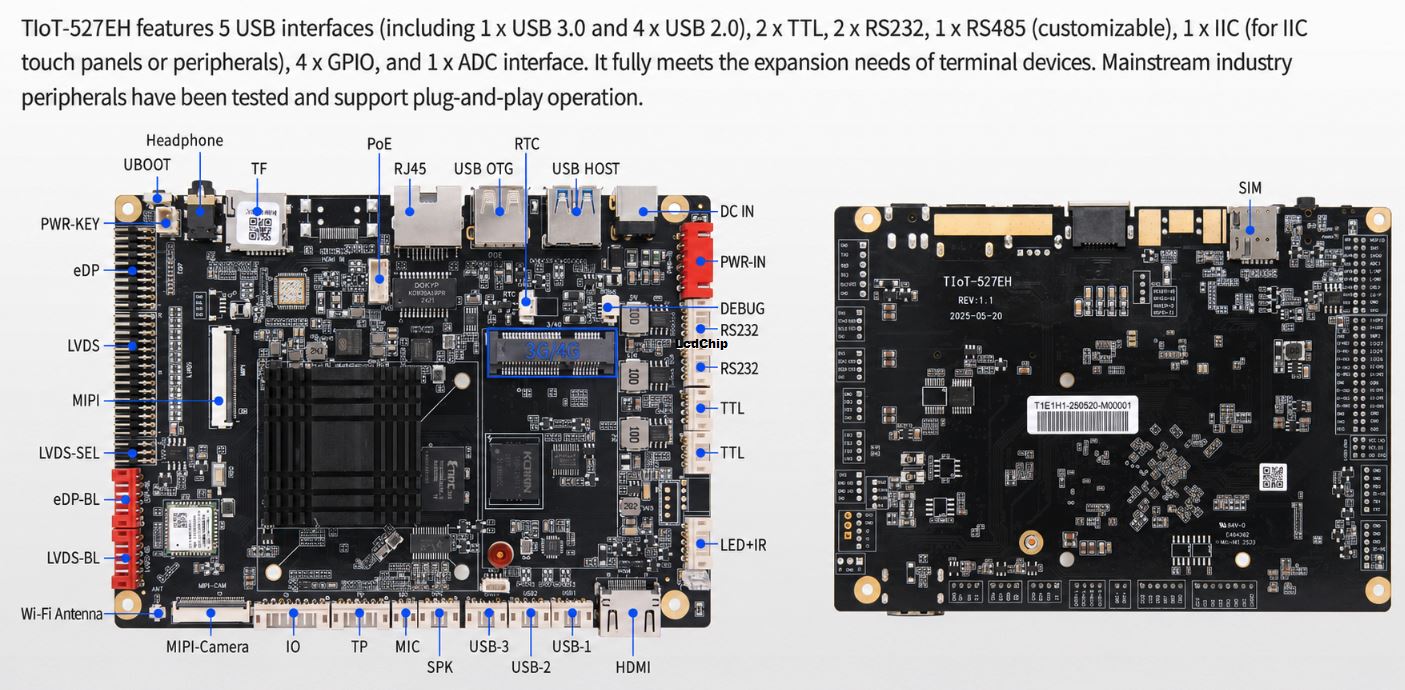

Rich Industrial Expansion

• 1 × USB 3.0 interface
• 4 × USB 2.0 interfaces
• 2 × TTL serial ports
• 2 × RS232 serial ports
• 1 × optional RS485 interface
• 4 × GPIO interfaces
• 1 × ADC interface
• 1 × I²C interface

Optional PoE Power Supply

The board includes an interface for connecting an external PoE daughterboard. A PoE module compliant with IEEE 802.3af or IEEE 802.3at is recommended for applications requiring network data and power transmission through one Ethernet cable.

Gigabit Network Communication

The integrated Ethernet interface supports 10/100/1000 Mbps auto-negotiation, providing stable high-speed wired networking for content transmission, remote device management and large data communication.

Wi-Fi, Bluetooth and 4G

The TIoT-527EH includes 2.4 GHz Wi-Fi and Bluetooth 4.2. A built-in Mini PCI-E interface supports compatible 4G modules for mobile data access and analog voice-call functions, depending on the selected communication module.

Flexible Audio Configuration

The integrated stereo amplifier provides a default speaker output of 2 × 6 W. Output up to 2 × 10 W can be configured through hardware modification. The board also provides one microphone input and a three-pole or four-pole headphone port.

Customized System Development

Android and OpenHarmony system customization, system APIs and reference code can be provided to support upper-layer APP development, peripheral control, hardware integration and project-specific software deployment.

Compact AIoT Hardware Platform

With dimensions of 146 × 104 mm, the TIoT-527EH combines AI computing, multi-screen display, camera access, industrial interfaces and multiple network options in a compact controller board suitable for intelligent embedded products.
