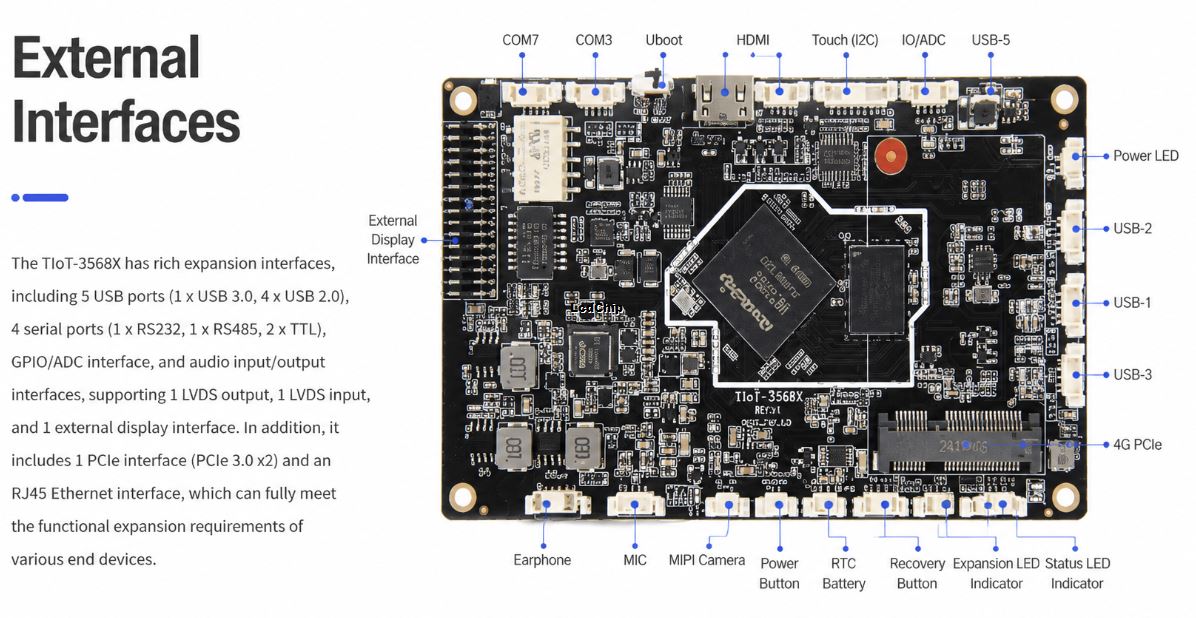

TIoT-3568X RK3568 AI Access Control Terminal Controller Board with 1 TOPS NPU

RK3568 Quad-Core Processor

The TIoT-3568X uses the Rockchip RK3568 64-bit processor featuring four ARM Cortex-A55 CPU cores and a maximum clock speed of up to 2.0 GHz. It provides a reliable balance of processing performance, power efficiency and operating stability.

Integrated 1 TOPS NPU

The integrated neural processing unit provides up to 1 TOPS of AI computing performance, supporting compatible facial recognition, identity verification and intelligent access management applications.

4K Multimedia Decoding

The platform supports multimedia decoding at resolutions up to 3840 × 2160. Actual display-output resolution depends on the selected HDMI, MIPI or eDP interface and connected screen.

HDMI Display Output

One HDMI output using a Type-C-style connector supports compatible display resolutions up to 1080p at 120 Hz, providing smooth output for access-control and attendance terminals.

MIPI and eDP Display Support

MIPI and eDP interfaces can directly drive compatible LCD panels with different sizes and resolutions. The eDP interface has been validated with resolutions up to 1920 × 1080.

Mainstream Touch-Screen Compatibility

The board supports compatible infrared, optical, capacitive, resistive and touch-film solutions. Driver-free HID touch screens provide plug-and-play operation without complex debugging.

Dual-Lens MIPI Camera

One dual-lens MIPI camera interface supports compatible camera modules with resolutions up to 10 megapixels for facial recognition, live image capture and identity verification applications.

USB Camera Support

Compatible USB cameras can also be connected for image capture, access verification and intelligent vision applications according to the selected software and peripheral configuration.

Constant-Current Fill-Light Interface

A dedicated interface can drive a compatible constant-current fill-light board, improving facial image capture and recognition performance in low-light and nighttime environments.

QR-Code Scanner Interface

The embedded QR-code scanner module interface supports compatible scanning modules for visitor registration, electronic passes, ticket verification and access-management applications.

Wiegand Access-Control Interfaces

One Wiegand input and one Wiegand output are available for compatible card readers, access controllers and gate-control equipment.

Custom 30-Pin Expansion Connector

One customizable 15 × 2 dual-row pin-header interface can integrate power input, Wiegand input and output, RJ45-related signals and other project-specific functions.

Five USB Interfaces

Five USB 2.0 interfaces support compatible cameras, QR scanners, card readers, USB storage devices, keyboards and other access terminal peripherals.

Industrial Communication Interfaces

• 1 × RS232 serial interface
• 1 × RS485 industrial interface
• 2 × TTL serial interfaces
• 4 × GPIO interfaces
• 2 × ADC interfaces
• 1 × I²C interface

Wired and Wireless Networking

The board supports 10/100 Mbps Ethernet, built-in Wi-Fi, wireless hotspot sharing and Bluetooth 4.2 for terminal networking and peripheral communication.

Optional PCI-E 4G Connectivity

A customized PCI-E interface can support compatible 4G modules, allowing access-control terminals to connect through mobile networks when wired Ethernet or Wi-Fi is unavailable.

Android System Customization

Android system customization, hardware-control APIs and reference code can be provided to support upper-layer APP development, access-control integration and customized terminal deployment.

Multiple Operating Systems

Android 11 is provided as the standard operating system. Linux and OpenHarmony adaptation may also be supported according to project requirements.
