SunLED XZCBD53W-6
- Part No.:
- XZCBD53W-6
- Manufacturer:
- SunLED
- Category:
- LED Indication - Discrete
- Package:
- 0603 (1608 Metric)
- Datasheet:
-
XZCBD53W-6.pdf
- Description:
- LED BLUE CLEAR 2SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
XZCBD53W-6 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- SunLED
- Series:
- -
- Package/Case:
- 0603 (1608 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Color:
- Blue
- Configuration:
- Standard
- Lens Color:
- Colorless
- Lens Transparency:
- Clear
- Millicandela Rating:
- 98mcd
- Lens Style:
- Rectangle with Flat Top
- Lens Size:
- 1.20mm x 0.80mm
- Voltage - Forward (Vf) (Typ):
- 3.3V
- Current - Test:
- 20mA
- Viewing Angle:
- 120°
- Mounting Type:
- Surface Mount
- Wavelength - Dominant:
- 465nm
- Wavelength - Peak:
- 460nm
- Features:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 2-SMD
- Size / Dimension:
- 1.60mm L x 0.80mm W
| Image |  |
 |
 |
 |
 |

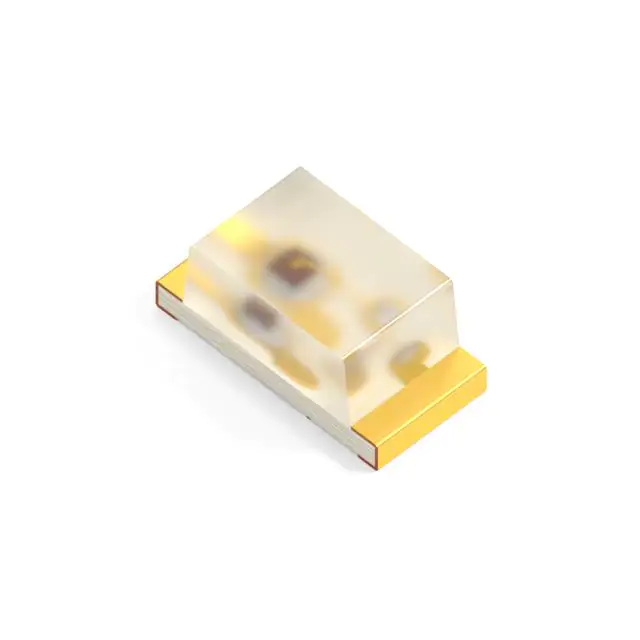

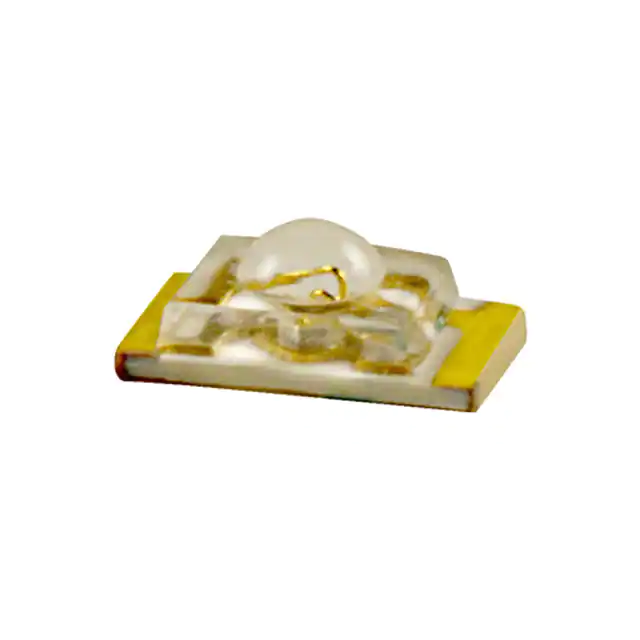

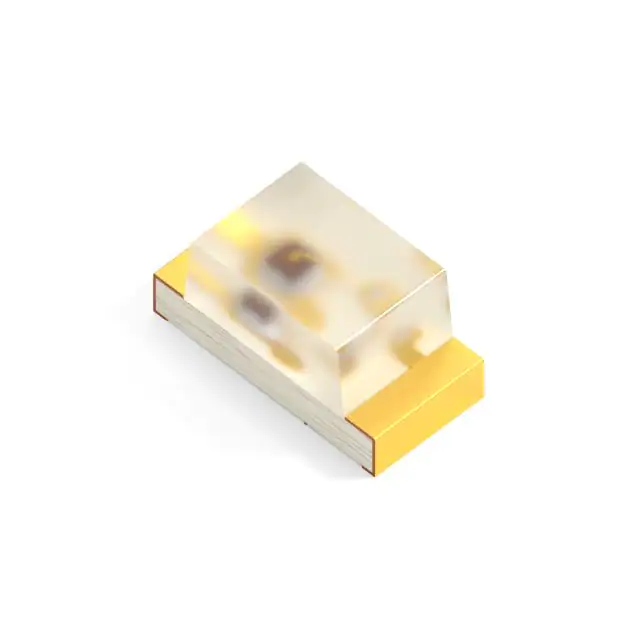

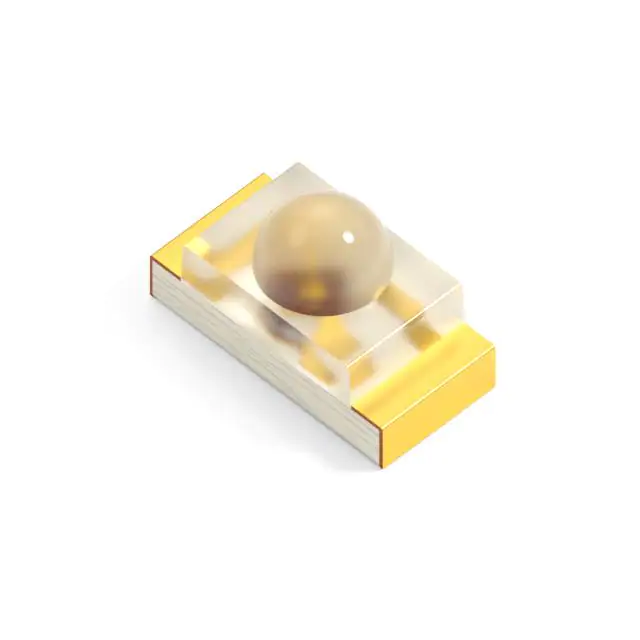

| Part Number | XZCBD53W-6 | XZCBD53W-1 | XZCBD53W-8 | XZCBD53W-3 | XZCBD53W-8ST |
| Manufacturer | SunLED | SunLED | SunLED | SunLED | SunLED |
| Series | - | - | PixsoLED | - | - |
| Package/Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 2-SMD, No Lead | 0603 (1608 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Discontinued at Digi-Key |
| Color | Blue | Blue | Blue | Blue | Blue |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 98mcd | 98mcd | 198mcd | 98mcd | 138mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Round with Domed Top | Rectangle with Flat Top | Round with Domed Top |
| Lens Size | 1.20mm x 0.80mm | 1.10mm x 0.80mm | 0.35mm Dia | 1.10mm x 0.80mm | 0.70mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | 120° | 120° | 40° | 120° | 100° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 465nm | 470nm | 470nm | 465nm | 465nm |
| Wavelength - Peak | 460nm | 468nm | 468nm | 460nm | 460nm |
| Features | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 2-SMD | Chip LED | Chip LED | 2-SMD | Chip LED |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W |
