Lite-On Inc. LTST-C281KRKT
- Part No.:
- LTST-C281KRKT
- Manufacturer:
- Lite-On Inc.
- Category:
- LED Indication - Discrete
- Package:
- 0402 (1005 Metric)
- Datasheet:
-
LTST-C281KRKT.pdf
- Description:
- LED RED CLEAR CHIP SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LTST-C281KRKT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Lite-On Inc.
- Series:
- -
- Package/Case:
- 0402 (1005 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Color:
- Red
- Configuration:
- Standard
- Lens Color:
- Colorless
- Lens Transparency:
- Clear
- Millicandela Rating:
- 54mcd
- Lens Style:
- Rectangle with Flat Top
- Lens Size:
- 0.50mm x 1.00mm
- Voltage - Forward (Vf) (Typ):
- 2V
- Current - Test:
- 20mA
- Viewing Angle:
- 130°
- Mounting Type:
- Surface Mount
- Wavelength - Dominant:
- 631nm
- Wavelength - Peak:
- 639nm
- Features:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- Chip LED
- Size / Dimension:
- 1.00mm L x 0.50mm W
| Image |  |
 |
 |
 |
 |

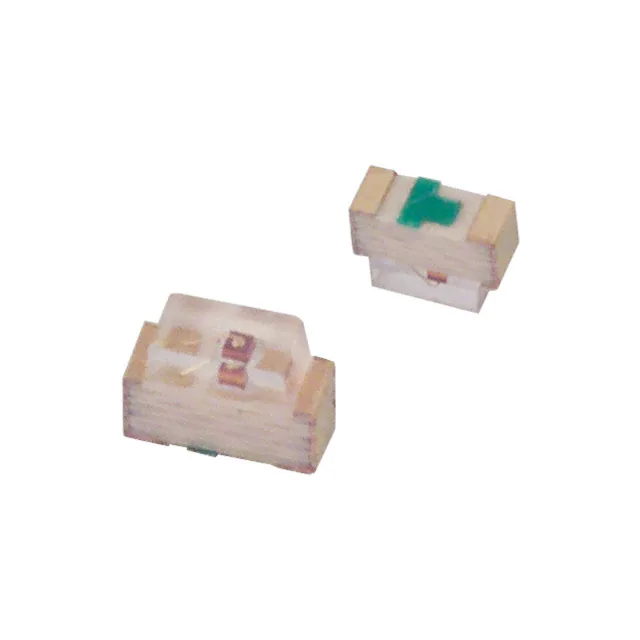

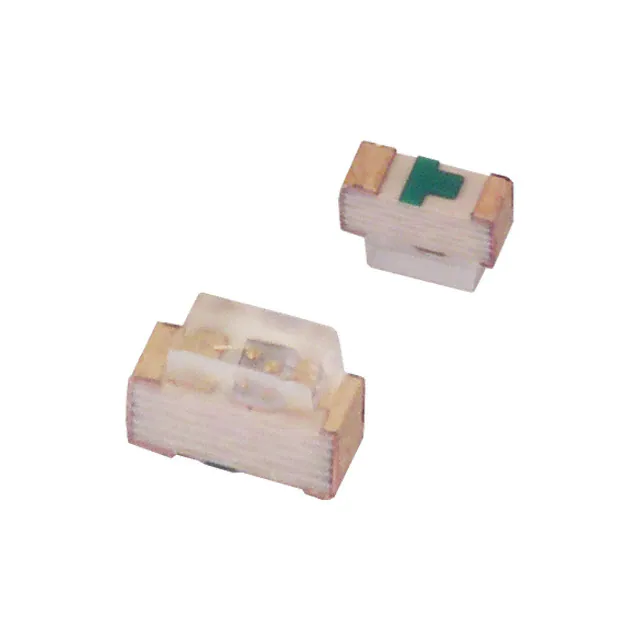

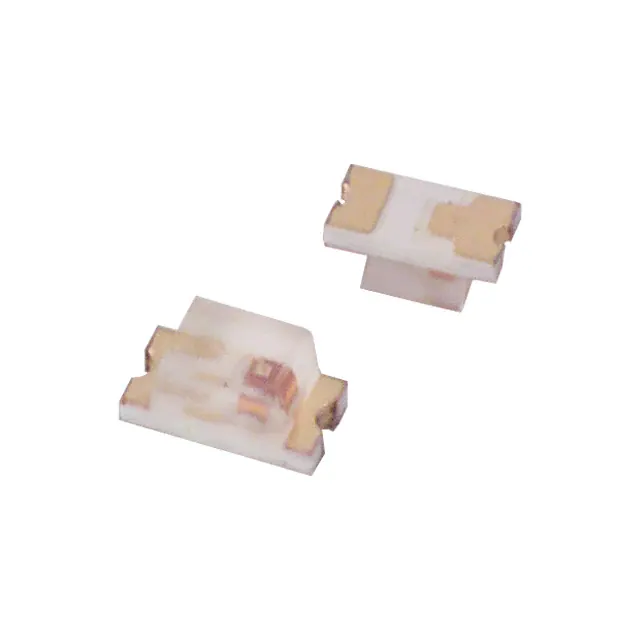

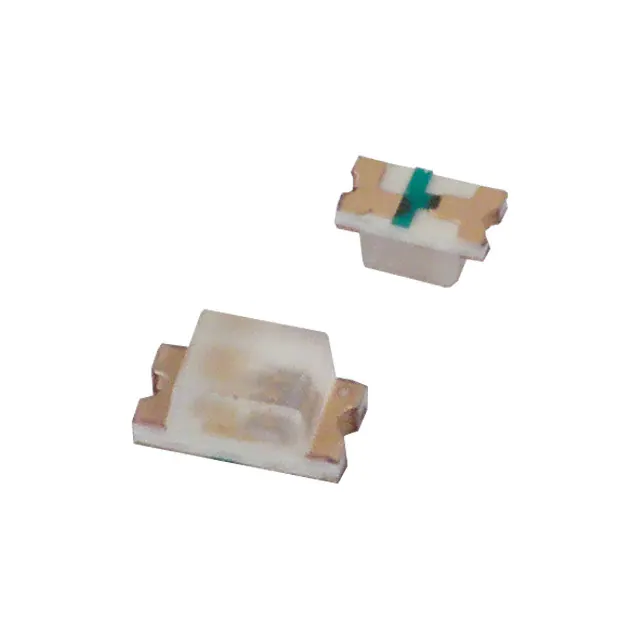

| Part Number | LTST-C281KRKT | LTST-C190KFKT | LTST-C190GKT | LTST-S270KGKT | LTST-S270GKT |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Series | - | - | - | - | - |
| Package/Case | 0402 (1005 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Color | Red | Orange | Green | Green | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | Colorless | Colorless | Colorless |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear |
| Millicandela Rating | 54mcd | 90mcd | 6mcd | 45mcd | 10mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 0.50mm x 1.00mm | 1.10mm x 0.80mm | 1.10mm x 0.80mm | 1.20mm x 0.60mm | 1.20mm x 0.60mm |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2.1V | 2V | 2.1V |
| Current - Test | 20mA | 20mA | 10mA | 20mA | 20mA |
| Viewing Angle | 130° | 130° | 130° | 130° | 130° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 631nm | 605nm | 569nm | 571nm | 569nm |
| Wavelength - Peak | 639nm | 611nm | 565nm | 574nm | 565nm |
| Features | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | Chip LED | Chip LED | Chip LED | Chip LED | - |
| Size / Dimension | 1.00mm L x 0.50mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 1.15mm W | 1.60mm L x 1.15mm W |
