SunLED XDMDK14A
- Part No.:
- XDMDK14A
- Manufacturer:
- SunLED
- Category:
- LED Character and Numeric
- Package:
- 10-DIP (0.600", 15.24mm)
- Datasheet:
-
XDMDK14A.pdf
- Description:
- DISPLAY 7SEG 0.56" SGL RED 10DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
XDMDK14A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- SunLED
- Series:
- -
- Package/Case:
- 10-DIP (0.600", 15.24mm)
- Packaging:
- Tube
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm)
- Digit/Alpha Size:
- 0.56" (14.22mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Anode
- Color:
- Red
- Voltage - Forward (Vf) (Typ):
- 1.85V
- Current - Test:
- 10mA
- Millicandela Rating:
- 27mcd
- Wavelength - Peak:
- 645nm
- Power Dissipation (Max):
- 75mW
| Image |  |
 |
 |
 |
|

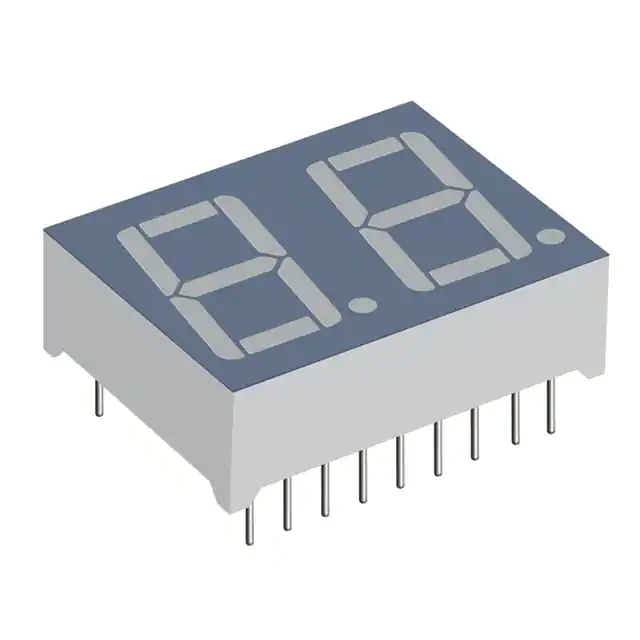

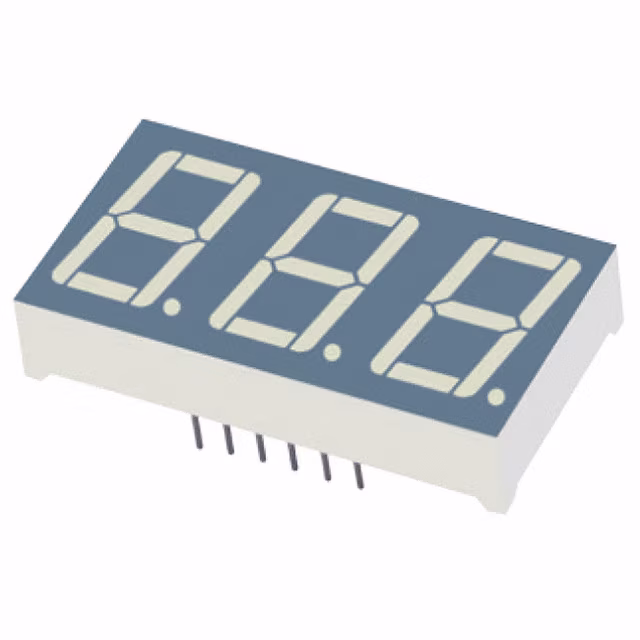

| Part Number | XDMDK14A | XDMDK14A2 | XDMDK14A3 | XDMDK14A4-1A | XDMDK14A4-A |
| Manufacturer | SunLED | SunLED | SunLED | SunLED | SunLED |
| Series | - | - | - | - | - |
| Package/Case | 10-DIP (0.600", 15.24mm) | 18-DIP (0.600", 15.24mm) | 12-DIP (0.600", 15.24mm) | 12-DIP (0.600", 15.24mm) | 12-DIP (0.600", 15.24mm) |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 1 | 2 | 3 | 4 | 4 |
| Size / Dimension | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) | 0.748" H x 1.480" W x 0.319" D (19.00mm x 37.60mm x 8.10mm) | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) |
| Digit/Alpha Size | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.20mm) | 0.56" (14.20mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment Clock | 7-Segment |
| Common Pin | Common Anode | Common Anode | Common Anode | Common Anode | Common Anode |
| Color | Red | Red | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 1.85V | 1.85V | 1.85V | 1.85V | 1.85V |
| Current - Test | 10mA | 10mA | 10mA | 10mA | 10mA |
| Millicandela Rating | 27mcd | 24mcd | 22mcd | 71.99mcd | 71.99mcd |
| Wavelength - Peak | 645nm | 645nm | 645nm | 645nm | 645nm |
| Power Dissipation (Max) | 75mW | 75mW | 75mW | 75mW | 75mW |
- Include Parts
- Popular Search
The following parts include "XDMDK14A" in Silicon Labs XDMDK14A.
- Part Number
- Manufacturer
- Package
- Description
- LSHD-5601 Lite-On Inc. 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL GRN 10DIP
- LTS-4802BJR-H1 Lite-On Inc. 10-DIP (0.300", 7.62mm) DISPLAY 7SEG 0.39" SGL RED 10DIP
- LSHD-7503 Lite-On Inc. 10-DIP (0.200", 5.08mm) DISPLAY 7-SEG 0.3" SGL RED 10DIP
- LSHD-5503 Lite-On Inc. 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
- SA56-11EWA Kingbright 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
- LTD-6940HR Lite-On Inc. 18-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" DBL RED 18DIP
- SA36-11EWA Kingbright 10-DIP (0.200", 5.08mm) DISPLAY 7SEG 0.36" SGL RED 10DIP
- SC56-11EWA Kingbright 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
- LTD-4708JR Lite-On Inc. 10-DIP (0.400", 10.16mm) DISPLAY 7SEG 0.39" DBL RED 10DIP
- SC56-11SURKWA Kingbright 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
