Lite-On Inc. LSHD-7503
- Part No.:
- LSHD-7503
- Manufacturer:
- Lite-On Inc.
- Category:
- LED Character and Numeric
- Package:
- 10-DIP (0.200", 5.08mm)
- Datasheet:
-
LSHD-7503.pdf
- Description:
- DISPLAY 7-SEG 0.3" SGL RED 10DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LSHD-7503 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Lite-On Inc.
- Series:
- -
- Package/Case:
- 10-DIP (0.200", 5.08mm)
- Packaging:
- Tube
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)
- Digit/Alpha Size:
- 0.30" (7.62mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Cathode
- Color:
- Red
- Voltage - Forward (Vf) (Typ):
- 2.1V
- Current - Test:
- 20mA
- Millicandela Rating:
- 12mcd
- Wavelength - Peak:
- 632nm
- Power Dissipation (Max):
- 70mW
| Image |  |
 |
 |
 |
|
| Part Number | LSHD-5601 | LSHD-7503 | LSHD-5503 | LSHD-A101 | LSHD-7501 |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Series | - | - | - | - | - |
| Package/Case | 10-DIP (0.600", 15.24mm) | 10-DIP (0.200", 5.08mm) | 10-DIP (0.600", 15.24mm) | 10-DIP (0.200", 5.08mm) | 10-DIP (0.200", 5.08mm) |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) |
| Digit/Alpha Size | 0.56" (14.22mm) | 0.30" (7.62mm) | 0.56" (14.22mm) | 0.30" (7.62mm) | 0.30" (7.62mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Cathode | Common Cathode | Common Anode | Common Anode |
| Color | Green | Red | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 2.1V | 2.1V | 2.1V | 2.1V | 2.1V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 2.4mcd | 12mcd | 17mcd | 9mcd | 12mcd |
| Wavelength - Peak | 565nm | 632nm | 632nm | 650nm | 632nm |
| Power Dissipation (Max) | 75mW | 70mW | 70mW | 70mW | 70mW |
- Include Parts
- Popular Search
The following parts include "LSHD-7503" in Silicon Labs LSHD-7503.
- Part Number
- Manufacturer
- Package
- Description

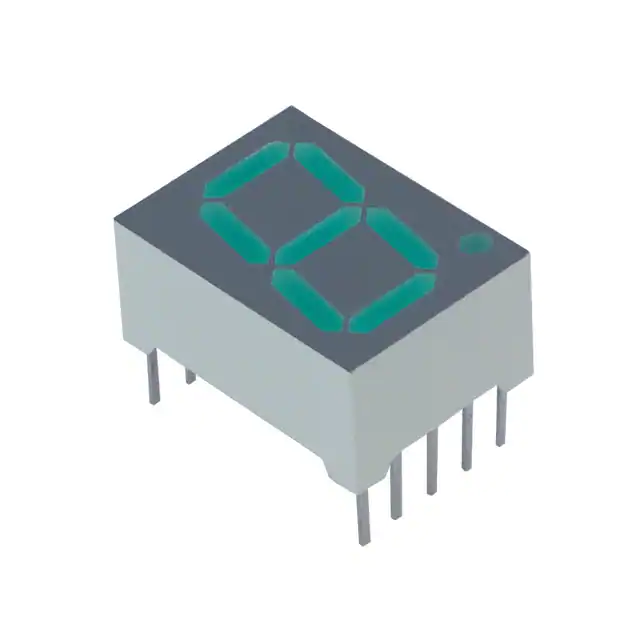

- LSHD-5601 Lite-On Inc. 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL GRN 10DIP
- LTS-4802BJR-H1 Lite-On Inc. 10-DIP (0.300", 7.62mm) DISPLAY 7SEG 0.39" SGL RED 10DIP

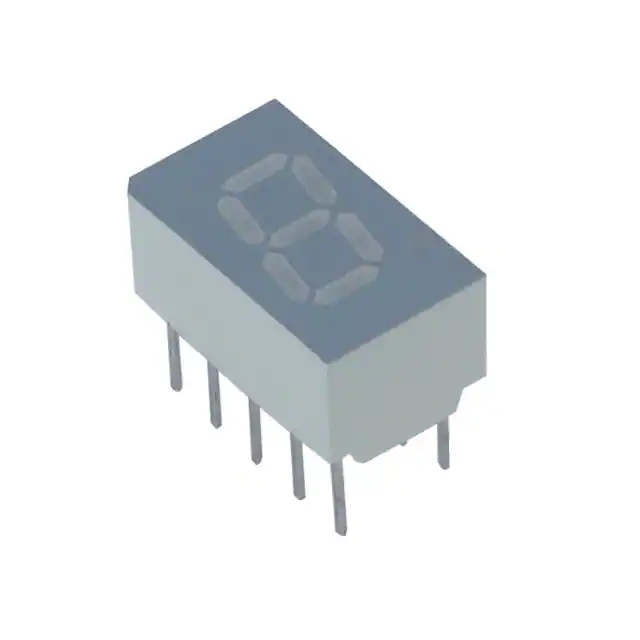

- LSHD-7503 Lite-On Inc. 10-DIP (0.200", 5.08mm) DISPLAY 7-SEG 0.3" SGL RED 10DIP

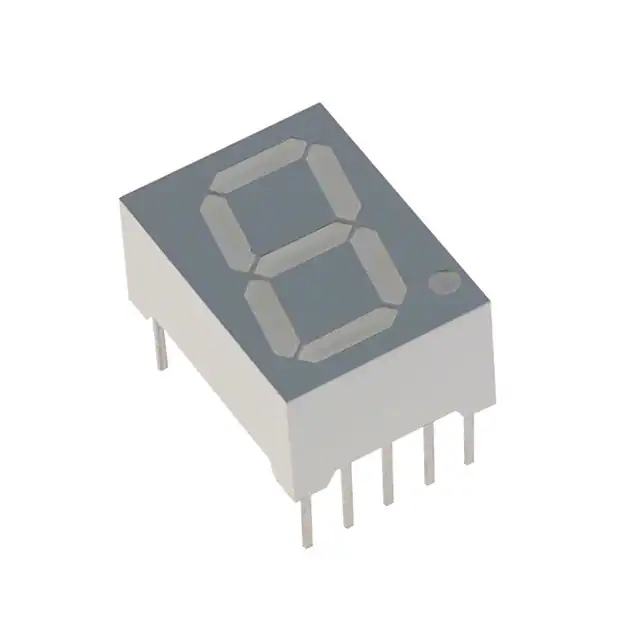

- LSHD-5503 Lite-On Inc. 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
- SA56-11EWA Kingbright 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
- LTD-6940HR Lite-On Inc. 18-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" DBL RED 18DIP
- SA36-11EWA Kingbright 10-DIP (0.200", 5.08mm) DISPLAY 7SEG 0.36" SGL RED 10DIP
- SC56-11EWA Kingbright 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
- LTD-4708JR Lite-On Inc. 10-DIP (0.400", 10.16mm) DISPLAY 7SEG 0.39" DBL RED 10DIP
- SC56-11SURKWA Kingbright 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
