Kingbright SC56-11SURKWA
- Part No.:
- SC56-11SURKWA
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 10-DIP (0.600", 15.24mm)
- Datasheet:
-
SC56-11SURKWA.pdf
- Description:
- DISPLAY 7SEG 0.56" SGL RED 10DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SC56-11SURKWA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 10-DIP (0.600", 15.24mm)
- Packaging:
- Tube
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm)
- Digit/Alpha Size:
- 0.56" (14.22mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Cathode
- Color:
- Red
- Voltage - Forward (Vf) (Typ):
- 1.95V
- Current - Test:
- 20mA
- Millicandela Rating:
- 97mcd
- Wavelength - Peak:
- 645nm
- Power Dissipation (Max):
- 75mW
| Image |  |
 |
 |
 |
|

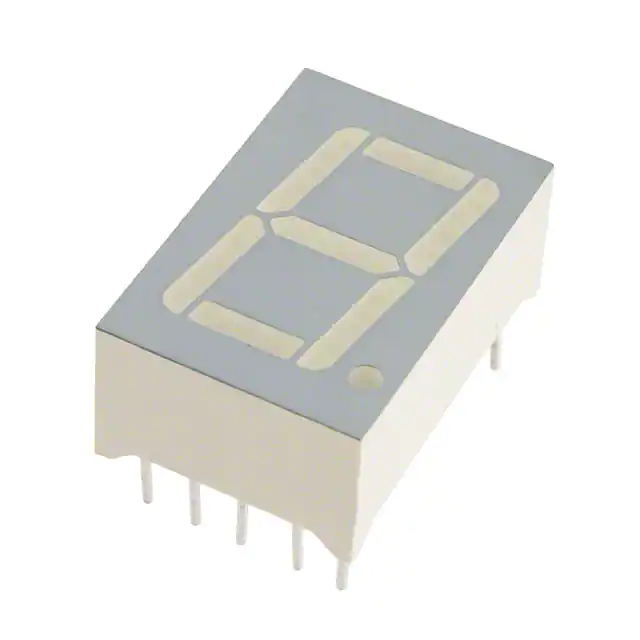

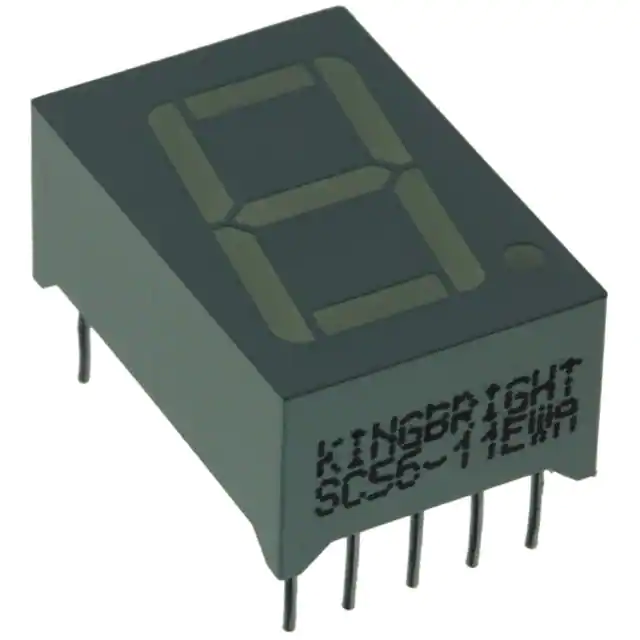

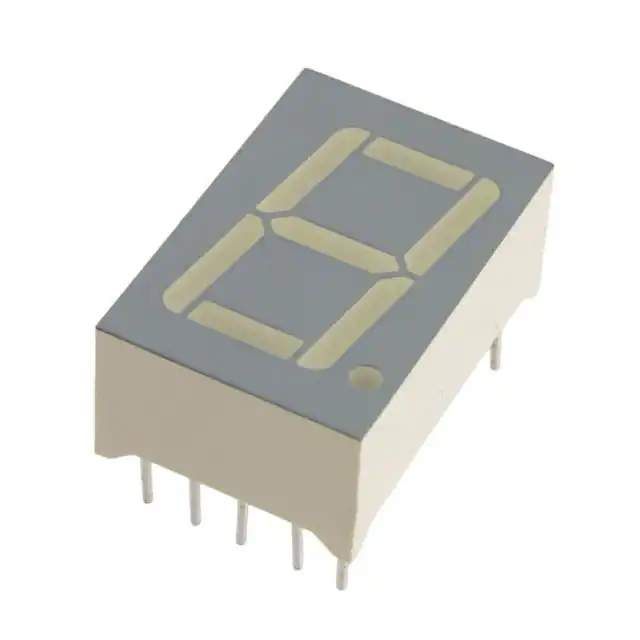

| Part Number | SC56-11EWA | SC56-11SURKWA | SC56-11GWA | SC56-21GWA | SC56-21SURKWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright | Kingbright |
| Series | - | - | - | - | - |
| Package/Case | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Cathode | Common Cathode | Common Cathode |
| Color | Red | Red | Green | Green | Red |
| Voltage - Forward (Vf) (Typ) | 2V | 1.95V | 2.2V | 2.2V | 1.95V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 6.4mcd | 97mcd | 11mcd | 11mcd | 97mcd |
| Wavelength - Peak | 627nm | 645nm | 565nm | 565nm | 645nm |
| Power Dissipation (Max) | 75mW | 75mW | 62.5mW | 62.5mW | 75mW |
- Include Parts
- Popular Search
The following parts include "SC56-11SURKWA" in Silicon Labs SC56-11SURKWA.
- Part Number
- Manufacturer
- Package
- Description
- LSHD-5601 Lite-On Inc. 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL GRN 10DIP
- LTS-4802BJR-H1 Lite-On Inc. 10-DIP (0.300", 7.62mm) DISPLAY 7SEG 0.39" SGL RED 10DIP
- LSHD-7503 Lite-On Inc. 10-DIP (0.200", 5.08mm) DISPLAY 7-SEG 0.3" SGL RED 10DIP
- LSHD-5503 Lite-On Inc. 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
- SA56-11EWA Kingbright 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
- LTD-6940HR Lite-On Inc. 18-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" DBL RED 18DIP
- SA36-11EWA Kingbright 10-DIP (0.200", 5.08mm) DISPLAY 7SEG 0.36" SGL RED 10DIP
- SC56-11EWA Kingbright 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
- LTD-4708JR Lite-On Inc. 10-DIP (0.400", 10.16mm) DISPLAY 7SEG 0.39" DBL RED 10DIP
- SC56-11SURKWA Kingbright 10-DIP (0.600", 15.24mm) DISPLAY 7SEG 0.56" SGL RED 10DIP
