TTM Technologies, Inc. XC2100A-03S
- Part No.:
- XC2100A-03S
- Manufacturer:
- TTM Technologies, Inc.
- Category:
- RF Directional Coupler
- Package:
- 4-SMD, No Lead
- Datasheet:
-
XC2100A-03S.pdf
- Description:
- RF DIR COUPLER 2GHZ-2.3GHZ SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
XC2100A-03S Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TTM Technologies, Inc.
- Series:
- Xinger® II
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Coupler Type:
- Standard
- Frequency:
- 2GHz ~ 2.3GHz
- Coupling Factor:
- -
- Applications:
- General Purpose
- Insertion Loss:
- 0.15dB
- Power - Max:
- 145W
- Isolation:
- 25dB
- Return Loss:
- -
- Supplier Device Package:
- -

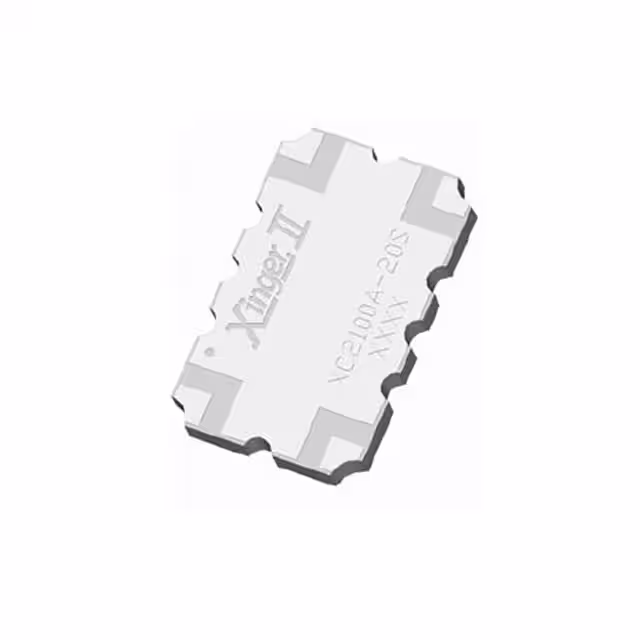

| Image |  |
|
|
 |
|
| Part Number | XC2100A-03S | XC2100A-10S | XC2100A-30S | XC2100A-20S | XC2100A-05S |
| Manufacturer | TTM Technologies, Inc. | TTM Technologies, Inc. | TTM Technologies, Inc. | TTM Technologies, Inc. | TTM Technologies, Inc. |
| Series | Xinger® II | Xinger® II | Xinger® II | Xinger® II | Xinger® II |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Coupler Type | Standard | Standard | Standard | Standard | Standard |
| Frequency | 2GHz ~ 2.3GHz | 2GHz ~ 2.3GHz | 2GHz ~ 2.3GHz | 2GHz ~ 2.3GHz | 2GHz ~ 2.3GHz |
| Coupling Factor | - | 10dB | 30dB | 20dB | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Insertion Loss | 0.15dB | 0.16dB | 0.15dB | 0.15dB | 0.15dB |
| Power - Max | 145W | 175W | 120W | 150W | 175W |
| Isolation | 25dB | - | - | - | - |
| Return Loss | - | - | - | - | - |
| Supplier Device Package | - | - | - | - | - |
