Taoglas Limited WCM.01.0151W
- Part No.:
- WCM.01.0151W
- Manufacturer:
- Taoglas Limited
- Category:
- RF Antennas
- Package:
- Datasheet:
-
WCM.01.0151W.pdf
- Description:
- RF ANT 2.4GHZ MODULE RP-SMA MALE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
WCM.01.0151W Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taoglas Limited
- Series:
- -
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- Bluetooth, WiFi
- Frequency Group:
- UHF (2GHz ~ 3GHz)
- Frequency (Center/Band):
- 2.4GHz
- Frequency Range:
- 2.4GHz ~ 2.5GHz
- Antenna Type:
- Module
- Number of Bands:
- 1
- VSWR:
- -
- Return Loss:
- -
- Gain:
- 5.4dBi
- Power - Max:
- 10 W
- Features:
- -
- Termination:
- RP-SMA Male
- Ingress Protection:
- IP67
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Connector Mount
- Height (Max):
- 0.646" (16.40mm)
- Applications:
- Bluetooth, Wi-Fi
| Image |  |
 |
 |
 |
 |

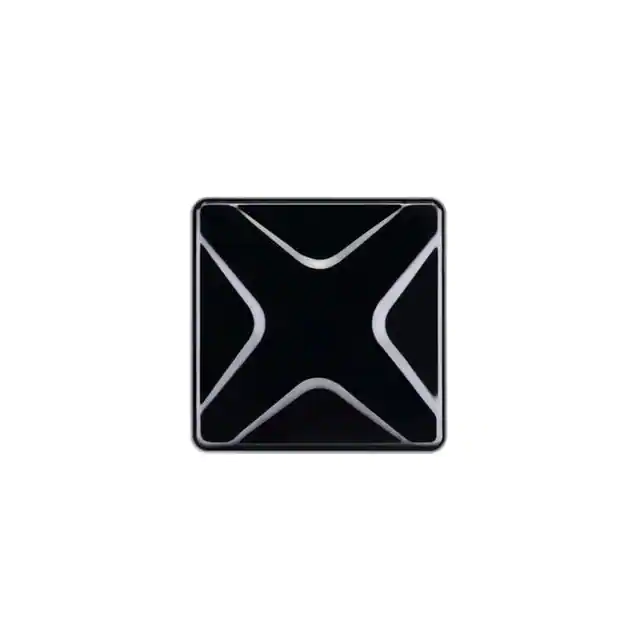

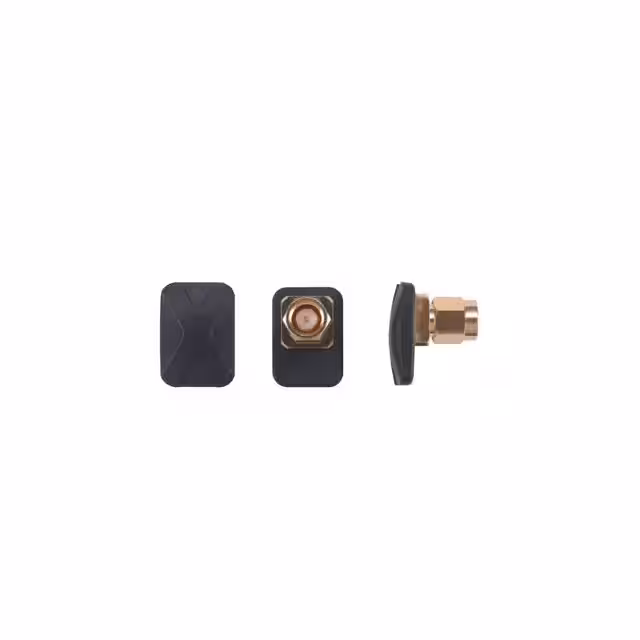

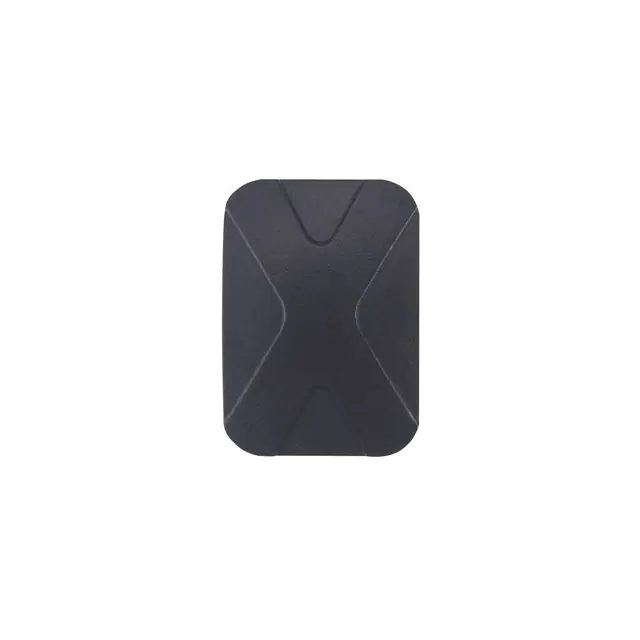

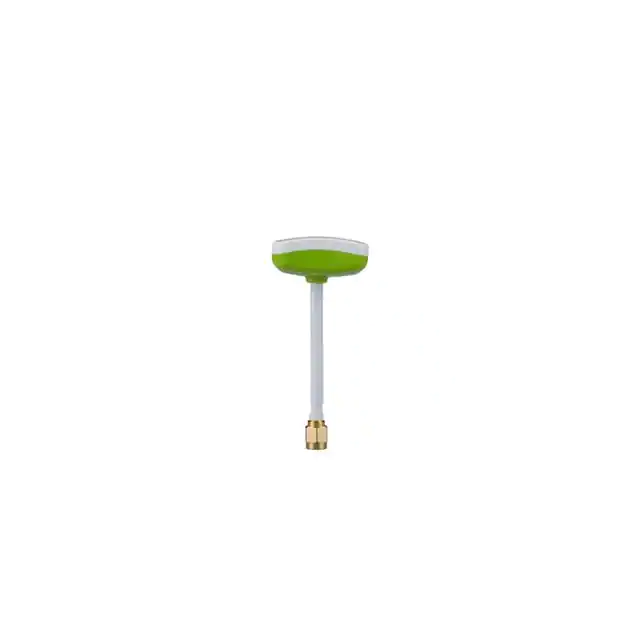

| Part Number | WCM.01.0151W | WCM.02.0121 | WCM.01.0151 | WCM.01.0111 | WCM.10.005QQ111 |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| Series | - | - | - | - | - |
| Packaging | Bag | Box | Bag | Bag | Box |
| Product Status | Active | Active | Active | Active | Obsolete |
| RF Family/Standard | Bluetooth, WiFi | - | Bluetooth, WiFi | Bluetooth, WiFi | - |
| Frequency Group | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) | SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4GHz | 2.45GHz | 2.4GHz | 2.45GHz | 5.5GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz | 2.4GHz ~ 2.5GHz | 2.4GHz ~ 2.5GHz | 2.4GHz ~ 2.5GHz | 5.15GHz ~ 5.85GHz |
| Antenna Type | Module | Module | Module | Whip, Straight | Module |
| Number of Bands | 1 | 1 | 1 | 1 | 1 |
| VSWR | - | - | - | - | - |
| Return Loss | - | -10dB | - | -6dB | -10dB, -15dB |
| Gain | 5.4dBi | 1.68dBi | 5.4dBi | 0.89dBi, 0.4dBi, 0.12dBi | 3.8dBi, 3.2dBi |
| Power - Max | 10 W | - | 10 W | 10 W | - |
| Features | - | - | - | - | Cable - 50mm |
| Termination | RP-SMA Male | SMA Female | RP-SMA Male | SMA Male | RP-SMA Male |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Connector Mount | Surface Mount | Connector Mount | Connector Mount | Connector Mount |
| Height (Max) | 0.646" (16.40mm) | 0.264" (6.70mm) | 0.646" (16.40mm) | 0.646" (16.40mm) | 0.669" (17.00mm) |
| Applications | Bluetooth, Wi-Fi | General Purpose | Bluetooth, Wi-Fi | Bluetooth, Wi-Fi | General Purpose |
