Abracon LLC AMCA31-2R450G-S1F-T3
- Part No.:
- AMCA31-2R450G-S1F-T3
- Manufacturer:
- Abracon LLC
- Category:
- RF Antennas
- Package:
- Datasheet:
-
AMCA31-2R450G-S1F-T3.pdf
- Description:
- RF ANT 2.4GHZ CHIP SOLDER SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AMCA31-2R450G-S1F-T3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- AMCA
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- RF Family/Standard:
- Bluetooth, General ISM, WiFi
- Frequency Group:
- UHF (2GHz ~ 3GHz)
- Frequency (Center/Band):
- 2.45GHz
- Frequency Range:
- 2.4GHz ~ 2.5GHz
- Antenna Type:
- Chip
- Number of Bands:
- 1
- VSWR:
- -
- Return Loss:
- -
- Gain:
- 2.3dBi
- Power - Max:
- 3 W
- Features:
- -
- Termination:
- Solder
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Height (Max):
- 0.047" (1.20mm)
- Applications:
- Bluetooth, IoT, ISM, M2M, Wi-Fi, ZigBee™
| Image |  |
 |
|
|
 |

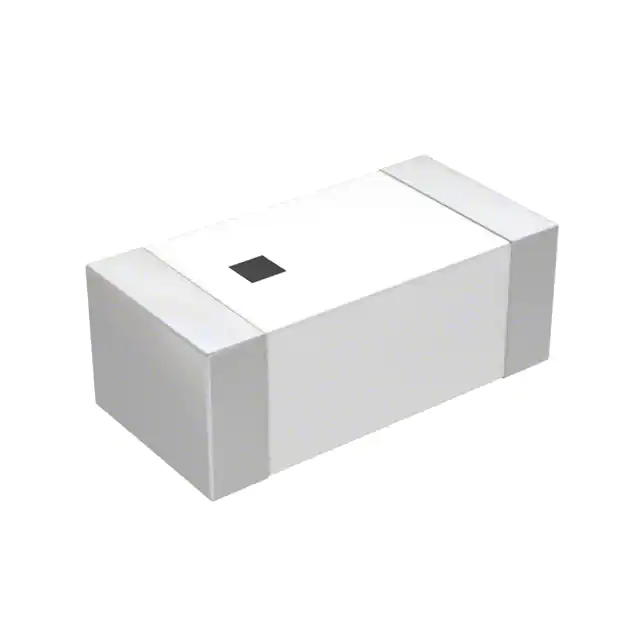

| Part Number | AMCA31-2R450G-S1F-T3 | AMCA31-101-2R450G-S1F-T3 | AMCA31-2R800G-S1F-T3 | AMCA31-2R800G-S1F-T | AMCA31-2R450G-S1F-T3-Q |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | AMCA | AMCA | AMCA | AMCA | AMCA |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Obsolete | Active |
| RF Family/Standard | Bluetooth, General ISM, WiFi | Bluetooth, WiFi | WiFi | WiFi | Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.45GHz | 2.45GHz | 2.8GHz | 2.8GHz | 2.45GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz | - | 2.725GHz ~ 2.875GHz | 2.725GHz ~ 2.875GHz | 2.4GHz ~ 2.5GHz |
| Antenna Type | Chip | Chip | Chip | Chip | - |
| Number of Bands | 1 | 1 | 1 | 1 | 1 |
| VSWR | - | 2 | 2 | 2 | - |
| Return Loss | - | - | - | - | -12.5dB |
| Gain | 2.3dBi | 0.5dBi | 0.5dBi | 0.5dBi | - |
| Power - Max | 3 W | 3 W | 3 W | 3 W | 3 W |
| Features | - | - | - | - | - |
| Termination | Solder | Solder | Solder | Solder | - |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | Automotive |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
| Height (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) | - |
| Applications | Bluetooth, IoT, ISM, M2M, Wi-Fi, ZigBee™ | Bluetooth, Wi-Fi | WiMax™, WLAN | WiMax™, WLAN | - |
