TE Connectivity Linx ANT-433-HETH
- Part No.:
- ANT-433-HETH
- Manufacturer:
- TE Connectivity Linx
- Category:
- RF Antennas
- Package:
- Description:
- RF ANT 433MHZ HELICAL SLD TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ANT-433-HETH Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Linx
- Series:
- HE
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- General ISM
- Frequency Group:
- UHF (300MHz ~ 1GHz)
- Frequency (Center/Band):
- 433MHz
- Frequency Range:
- 418MHz ~ 458MHz
- Antenna Type:
- Helical
- Number of Bands:
- 1
- VSWR:
- 2
- Return Loss:
- -
- Gain:
- 1.9dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- Solder
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Height (Max):
- 0.350" (8.89mm)
- Applications:
- Alarms, ISM, Remote Control, Security Systems
| Image |  |
 |
 |
 |
 |

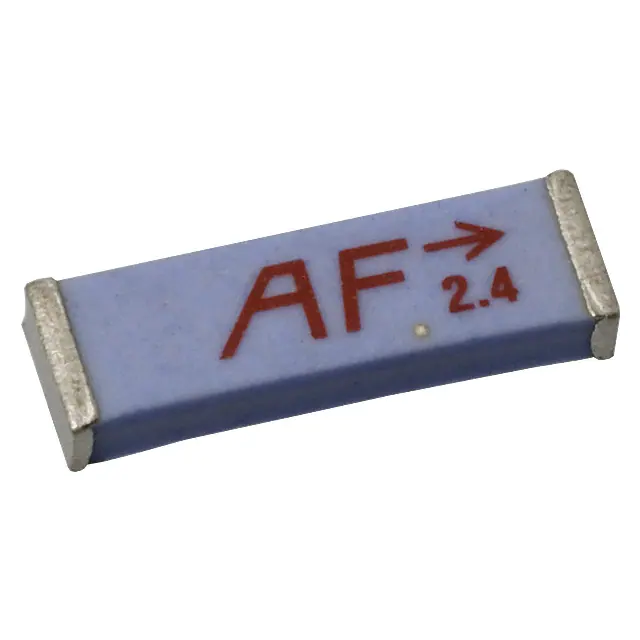

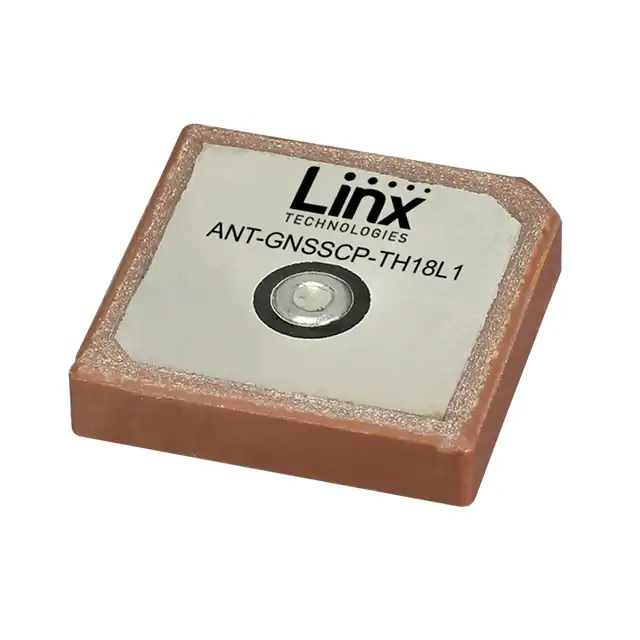

| Part Number | ANT-433-HETH | ANT-868-HETH | ANT-916-HETH | ANT-GNSSCP-TH18L1 | ANT-2.45-CHP-T |
| Manufacturer | TE Connectivity Linx | TE Connectivity Linx | TE Connectivity Linx | TE Connectivity Linx | TE Connectivity Linx |
| Series | HE | HE | HE | GNSSCP | CHP |
| Packaging | Bulk | Bulk | Bulk | Tray | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | General ISM | General ISM | General ISM | Navigation | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (300MHz ~ 1GHz) | UHF (300MHz ~ 1GHz) | UHF (300MHz ~ 1GHz) | UHF (1GHz ~ 2GHz) | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 433MHz | 868MHz | 915MHz | 1.575GHz, 1.602GHz | 2.4GHz |
| Frequency Range | 418MHz ~ 458MHz | 862MHz ~ 876MHz | 865MHz ~ 965MHz | 1.567GHz ~ 1.609GHz | 2.36GHz ~ 2.54GHz |
| Antenna Type | Helical | Helical | Helical | Ceramic Patch | Chip |
| Number of Bands | 1 | 1 | 1 | 3 | 1 |
| VSWR | 2 | 2.2 | 2 | 2.8, 3.2, 2.9 | 2 |
| Return Loss | - | -8.5dB | - | -6.5dB, -5.6dB, -6.2dB | - |
| Gain | 1.9dBi | 5.6dBi | 2.4dBi | 5.1dBi, 2.8dBi, 4dBi | 0.5dBi |
| Power - Max | - | 15 W | - | 8 W | 3 W |
| Features | - | - | - | - | - |
| Termination | Solder | Solder | Solder | Pin | Solder |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Adhesive | Surface Mount |
| Height (Max) | 0.350" (8.89mm) | 0.350" (8.90mm) | 0.350" (8.90mm) | 0.157" (4.00mm) | 0.039" (1.00mm) |
| Applications | Alarms, ISM, Remote Control, Security Systems | ISM, LPWA | ISM, LoRa, Sensor Networks, SigFox | Beidou, Galileo, GLONASS, GNSS, GPS | Bluetooth, Thread, Wi-Fi, Zigbee™ |
