BOE WB014ZNM-T00-6DP0
- Part No.:
- WB014ZNM-T00-6DP0
- Manufacturer:
- BOE
- Category:
- Graphic OLED Display
- Package:
- Description:
- BOE 1.39" Flat Circular 454×454 AM-OLED 16.7M COG RM69330 MIPI 24pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
WB014ZNM-T00-6DP0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 1.39"
- Panel Type:
- AM-OLED
- Resolution:
- 454×454
- Colors:
- 16.7M
- Viewing Area:
- 35.412×35.412
- Outline Size:
- 42(H)×42(V) ×0.75(D) mm
- Treatment:
- Glare (Haze 0%), Hard coating (3H)
- Brightness:
- 450 cd/m² (Typ.)
- Contrast Ratio:
- 100000:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 80/80/80/80 (Min.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 2/2 (Typ.)(Tr/Td)
- Best View on:
- Work Mode:
- -
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 100% NTSC
- Backlight:
- self
- Used for:
- Wearable; Round Display
- Touch Screen:
- Without
- Refresh Rate:
- 45Hz
- Driver IC list:
- COG Built-in RM69330
| Image |  |
 |

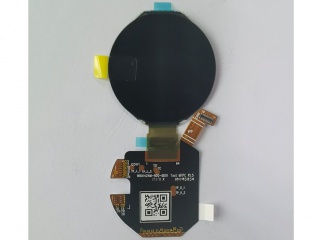

| Part Number | WB014ZNM-T00-6DP0 | WB014ZNM-N00 |
| Manufacturer | BOE | BOE |
| Panel Size | 1.39" | 1.39" |
| Panel Type | AM-OLED | AM-OLED |
| Resolution | 454×454 | 454×454 |
| Colors | 16.7M | 16.7M |
| Viewing Area | 35.412×35.412 | 35.412×35.412 |
| Outline Size | 42(H)×42(V) ×0.75(D) mm | 38.212(H)×39.372(V) ×1.04(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) | |
| Brightness | 450 cd/m² (Typ.) | 350 cd/m² (Typ.) |
| Contrast Ratio | 100000:1 (Typ.) (TM) | |
| View Direction | Symmetry | Symmetry |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 2/2 (Typ.)(Tr/Td) | |
| Best View on | ||
| Work Mode | - | |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 16.7M 100% NTSC | 16.7M 103% NTSC |
| Backlight | self | |
| Used for | Wearable; Round Display | |
| Touch Screen | Without | |
| Refresh Rate | 45Hz | 60Hz |
| Driver IC list | COG Built-in RM69330 | COG Built-in RM67162FI |
