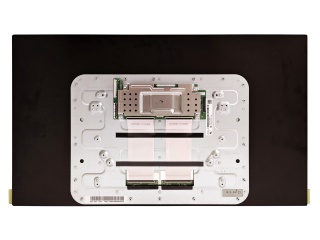

LG Display LW270AHQ-ERG2
- Part No.:
- LW270AHQ-ERG2
- Manufacturer:
- LG Display
- Category:
- Graphic OLED Display
- Package:
- Description:
- LG Display 27" 2560×1440 AM-OLED 1.07B V-by-One 112pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
LW270AHQ-ERG2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- LG Display
- Panel Size:
- 27"
- Panel Type:
- AM-OLED
- Resolution:
- 2560×1440
- Colors:
- 1.07B
- Viewing Area:
- 590.42×333.72
- Outline Size:
- 604.42(W)×350.62(H) mm
- Treatment:
- Antiglare (Haze 35%), Reflection 2.0% (Typ.)
- Brightness:
- 150 cd/m² (Typ.)
- Contrast Ratio:
- 1500000:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 60/60/60/60 (Min.) (Left / Right / Up / Down)
- Response Time:
- 0.1 (Typ.)(G to G)
- Best View on:
- Symmetry
- Work Mode:
- -
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 1.07B 98% DCI-P3
- Backlight:
- self , 30K hours
- Used for:
- Desktop Monitor; Gaming
- Touch Screen:
- Without
- Refresh Rate:
- 240Hz
- Driver IC list:
| Image |  |
 |
 |

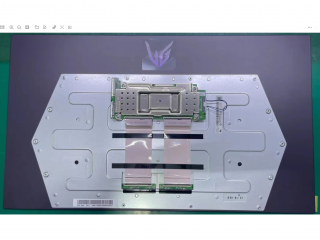

| Part Number | LW270AHQ-ERG2 | LW270AHQ-ERG1 | LW270AHQ-ESG3 |
| Manufacturer | LG Display | LG Display | LG Display |
| Panel Size | 27" | 27" | 27" |
| Panel Type | AM-OLED | AM-OLED | AM-OLED |
| Resolution | 2560×1440 | 2560×1440 | 2560×1440 |
| Colors | 1.07B | 1.07B | 1.07B |
| Viewing Area | 590.42×333.72 | 590.42×333.72 | 590.42×333.72 |
| Outline Size | 604.42(W)×350.62(H) mm | 605.22(W)×351.02(H) mm | |
| Treatment | Antiglare (Haze 35%), Reflection 2.0% (Typ.) | Antiglare (Haze 35%), Reflection 2.0% (Typ.) | |
| Brightness | 150 cd/m² (Typ.) | 200 cd/m² (Typ.) | 275 cd/m² (Typ.) |
| Contrast Ratio | 1500000:1 (Typ.) (TM) | 1500000:1 (Typ.) (TM) | |
| View Direction | Symmetry | ||
| Viewing Angle | 60/60/60/60 (Min.) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 60/60/60/60 (Left / Right / Up / Down) |
| Response Time | 0.1 (Typ.)(G to G) | 0.1 (Typ.)(G to G) | |
| Best View on | Symmetry | Symmetry | |
| Work Mode | - | - | |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 1.07B 98% DCI-P3 | 1.07B | 1.07B 97% DCI-P3 |
| Backlight | self , 30K hours | self , 30K hours | |
| Used for | Desktop Monitor; Gaming | Desktop Monitor; Gaming | |
| Touch Screen | Without | Without | |
| Refresh Rate | 240Hz | 240Hz | 240Hz |
| Driver IC list |
