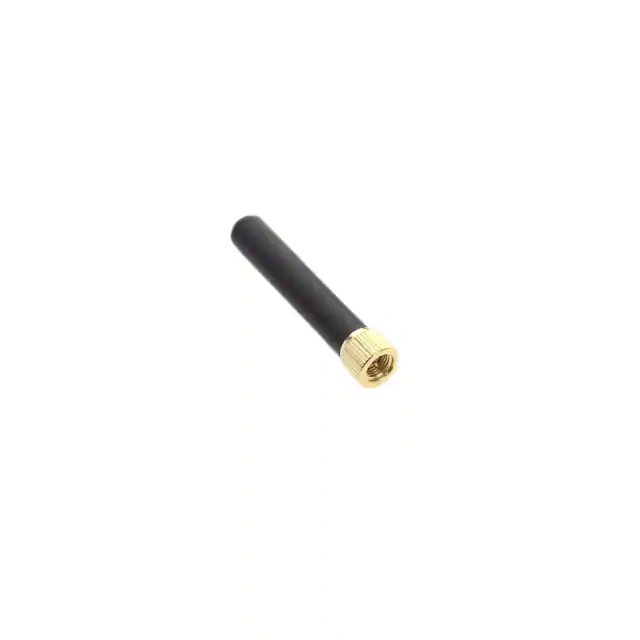

Pulse Electronics W1696-M
- Part No.:
- W1696-M
- Manufacturer:
- Pulse Electronics
- Category:
- RF Antennas
- Package:
- Description:
- ANT EXT 0.617-3.8GHZ SMA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
W1696-M Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pulse Electronics
- Series:
- Stubby Antenna
- Packaging:
- Tray
- Product Status:
- Active
- RF Family/Standard:
- Cellular
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 788.5MHz, 2.2GHz, 3.6GHz
- Frequency Range:
- 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz
- Antenna Type:
- Whip, Straight
- Number of Bands:
- 3
- VSWR:
- -
- Return Loss:
- -5dB, -4dB
- Gain:
- -0.5dBi, 1dBi, 0dBi
- Power - Max:
- 5 W
- Features:
- -
- Termination:
- SMA
- Ingress Protection:
- IP65
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Connector Mount
- Height (Max):
- 1.969" (50.00mm)
- Applications:
- LTE
| Image |  |
 |
 |
|
| Part Number | W1696-M | W1696 | W1696-MW | W1696/W1697 |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Series | Stubby Antenna | Stubby Antenna | - | * |
| Packaging | Tray | Tray | Tray | Bag |
| Product Status | Active | Active | Active | Active |
| RF Family/Standard | Cellular | Cellular | Cellular | - |
| Frequency Group | Wide Band | Wide Band | Wide Band | - |
| Frequency (Center/Band) | 788.5MHz, 2.2GHz, 3.6GHz | 788.5MHz, 2.2GHz, 3.6GHz | 788.5MHz, 2.2GHz, 3.6GHz | - |
| Frequency Range | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | - |
| Antenna Type | Whip, Straight | Whip, Straight | Whip, Straight | - |
| Number of Bands | 3 | 3 | 3 | - |
| VSWR | - | - | - | - |
| Return Loss | -5dB, -4dB | -5dB, -4dB | -5dB, -4dB | - |
| Gain | -0.5dBi, 1dBi, 0dBi | -0.5dBi, 1dBi, 0dBi | -0.5dBi, 1dBi, 0dBi | - |
| Power - Max | 5 W | 5 W | 5 W | - |
| Features | - | - | - | - |
| Termination | SMA | SMA | SMA Male | - |
| Ingress Protection | IP65 | IP42 | IP68 | - |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Connector Mount | Connector Mount | Connector Mount | - |
| Height (Max) | 1.969" (50.00mm) | 1.953" (49.60mm) | 1.960" (49.78mm) | - |
| Applications | LTE | LTE | 4G, 5G, LTE | - |
