STMicroelectronics VN7004CH
- Part No.:
- VN7004CH
- Manufacturer:
- STMicroelectronics
- Package:
- OctaPAK (7 Leads + Tab)
- Datasheet:
-
VN7004CH.pdf
- Description:
- IC PWR SWITCH N-CHAN 1:1 OCTAPAK
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
VN7004CH Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Package/Case:
- OctaPAK (7 Leads + Tab)
- Series:
- VIPOWER™
- Packaging:
- Tube
- Product Status:
- Obsolete
- Switch Type:
- General Purpose
- Number of Outputs:
- 1
- Ratio - Input:Output:
- 1:1
- Output Configuration:
- High Side
- Output Type:
- N-Channel
- Interface:
- On/Off
- Voltage - Load:
- 4V ~ 28V
- Voltage - Supply (Vcc/Vdd):
- Not Required
- Current - Output (Max):
- 38A
- Rds On (Typ):
- 4mOhm
- Input Type:
- Non-Inverting
- Features:
- -
- Fault Protection:
- Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- Automotive
- Qualification:
- AEC-Q100
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- OctaPAK 7+1

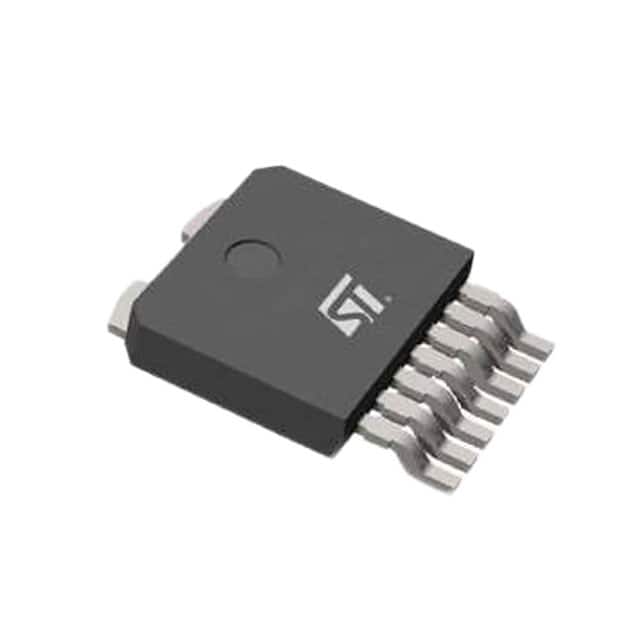

| Image |  |
 |
| Part Number | VN7004CHTR | VN7004CH |
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Package/Case | OctaPAK (7 leads + Tab) | OctaPAK (7 Leads + Tab) |
| Series | - | VIPOWER™ |
| Packaging | Tape & Reel (TR) | Tube |
| Product Status | Active | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 4V ~ 28V | 4V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 80A | 38A |
| Rds On (Typ) | 4mOhm | 4mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | - | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Grade | Automotive | Automotive |
| Qualification | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | OctaPAK 7+1 | OctaPAK 7+1 |
