TE Connectivity Potter & Brumfield Relays VF7-41F11
- Part No.:
- VF7-41F11
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Category:
- Automotive Relays
- Package:
- Datasheet:
-
VF7-41F11.pdf
- Description:
- RELAY AUTOMOTIVE SPST 70A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
VF7-41F11 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Series:
- VF7
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Coil Type:
- Non Latching
- Coil Current:
- 167 mA
- Coil Voltage:
- 12VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 70 A
- Switching Voltage:
- 14VDC - Nom
- Must Operate Voltage:
- 7.2 VDC
- Must Release Voltage:
- 1.2 VDC
- Operate Time:
- 7 ms
- Release Time:
- 2 ms
- Features:
- -
- Mounting Type:
- Socketable
- Termination Style:
- Plug In, Quick Connect - 0.250" (6.3mm)
- Operating Temperature:
- -40°C ~ 125°C
| Image |  |
|
 |
 |
 |

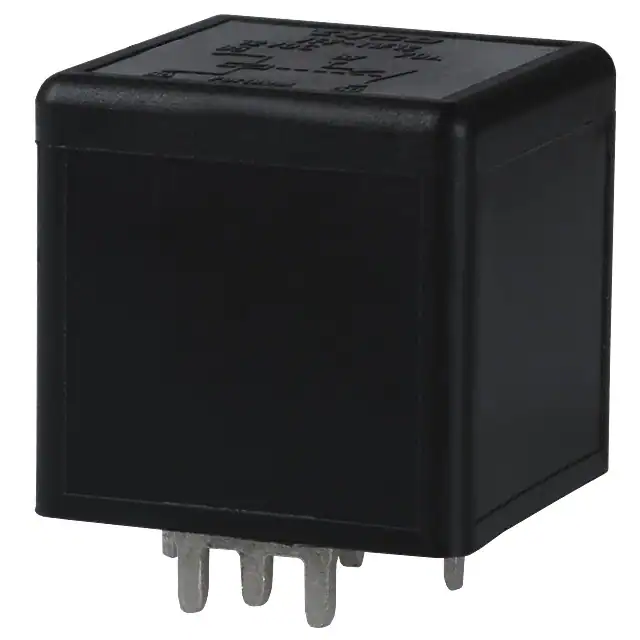

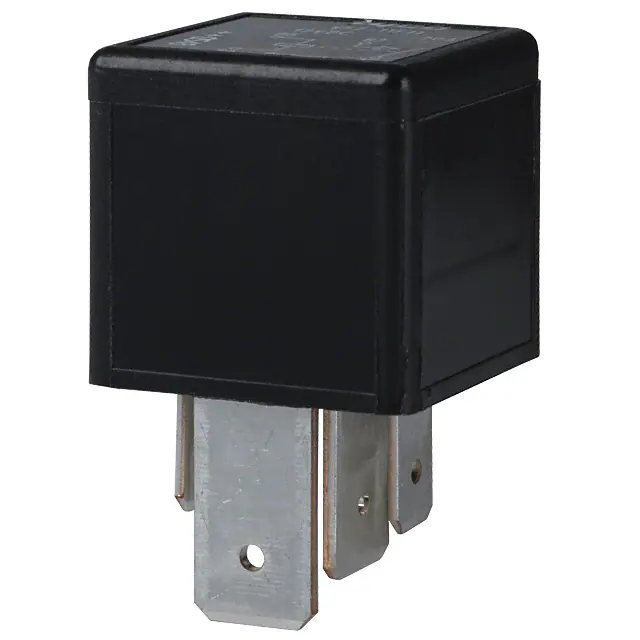

| Part Number | VF7-11H11 | VF7-11F11 | VF7-11F12 | VF7-11H12 | VF7-41F11 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Series | VF7 | VF7 | VF7 | VF7 | VF7 |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Obsolete | Active | Obsolete | Obsolete |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 83.3 mA | 167 mA | 167 mA | 83.3 mA | 167 mA |
| Coil Voltage | 24VDC | 12VDC | 12VDC | 24VDC | 12VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 70 A | 70 A | 70 A | 70 A | 70 A |
| Switching Voltage | 14VDC - Nom | 14VDC - Nom | 14VDC - Nom | 14VDC - Nom | 14VDC - Nom |
| Must Operate Voltage | 14.4 VDC | 7.2 VDC | 7.2 VDC | 14.4 VDC | 7.2 VDC |
| Must Release Voltage | 2.4 VDC | 1.2 VDC | 1.2 VDC | 2.4 VDC | 1.2 VDC |
| Operate Time | 7 ms | 7 ms | 7 ms | 7 ms | 7 ms |
| Release Time | 2 ms | 2 ms | 2 ms | 2 ms | 2 ms |
| Features | - | - | - | - | - |
| Mounting Type | Socketable | Socketable | Through Hole | Through Hole | Socketable |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) | Plug In, Quick Connect - 0.250" (6.3mm) | PC Pin | PC Pin | Plug In, Quick Connect - 0.250" (6.3mm) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
