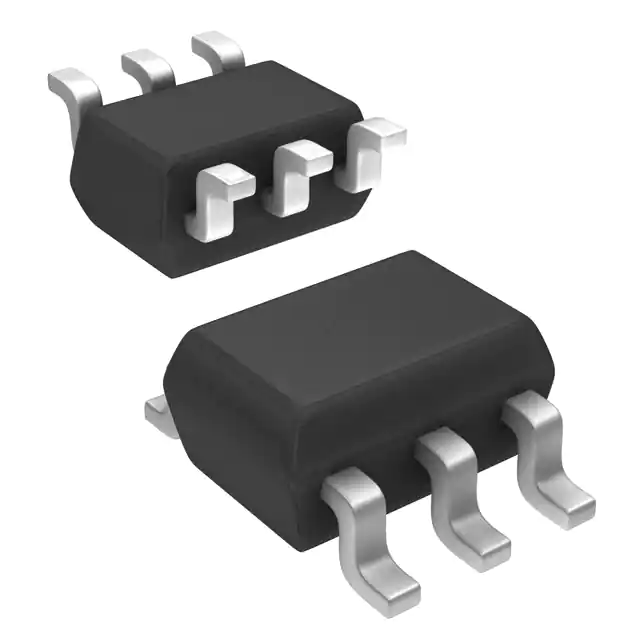

STMicroelectronics USBUF02W6
- Part No.:
- USBUF02W6
- Manufacturer:
- STMicroelectronics
- Category:
- EMI/RFI Filters (LC, RC Networks)
- Package:
- 6-TSSOP, SC-88, SOT-363
- Description:
- FILTER RC(PI) 22 OHM/47PF SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
USBUF02W6 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Series:
- USBUF
- Package/Case:
- 6-TSSOP, SC-88, SOT-363
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Low Pass
- Filter Order:
- 2nd
- Technology:
- RC (Pi)
- Number of Channels:
- 2
- Center / Cutoff Frequency:
- -
- Attenuation Value:
- -28dB @ 900MHz
- Resistance - Channel (Ohms):
- 22
- Current:
- -
- Values:
- R = 22Ohms, C = 47pF
- ESD Protection:
- Yes
- Operating Temperature:
- -40°C ~ 125°C
- Applications:
- USB
- Voltage - Rated:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height:
- 0.043" (1.09mm)
| Image |  |
| Part Number | USBUF02W6 |
| Manufacturer | STMicroelectronics |
| Series | USBUF |
| Package/Case | 6-TSSOP, SC-88, SOT-363 |
| Packaging | Tape & Reel (TR) |
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 2 |
| Center / Cutoff Frequency | - |
| Attenuation Value | -28dB @ 900MHz |
| Resistance - Channel (Ohms) | 22 |
| Current | - |
| Values | R = 22Ohms, C = 47pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Applications | USB |
| Voltage - Rated | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height | 0.043" (1.09mm) |
