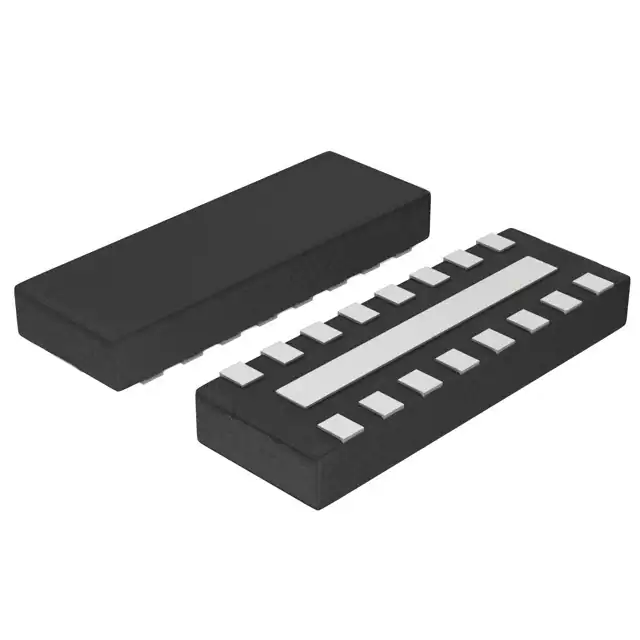

Nexperia USA Inc. IP4252CZ16-8-TTL,1
- Part No.:
- IP4252CZ16-8-TTL,1
- Manufacturer:
- Nexperia USA Inc.
- Category:
- EMI/RFI Filters (LC, RC Networks)
- Package:
- 16-UFDFN Exposed Pad
- Datasheet:
-
IP4252CZ16-8-TTL,1.pdf
- Description:
- FILTER RC(PI) 40 OHM/12PF SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
IP4252CZ16-8-TTL,1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Nexperia USA Inc.
- Series:
- -
- Package/Case:
- 16-UFDFN Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Last Time Buy
- Type:
- Low Pass
- Filter Order:
- 2nd
- Technology:
- RC (Pi)
- Number of Channels:
- 8
- Center / Cutoff Frequency:
- -
- Attenuation Value:
- 12dB @ 800MHz ~ 3GHz
- Resistance - Channel (Ohms):
- 40
- Current:
- -
- Values:
- R = 40Ohms, C = 12pF (Total)
- ESD Protection:
- Yes
- Operating Temperature:
- -40°C ~ 85°C
- Applications:
- LAN, WAN
- Voltage - Rated:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.130" L x 0.053" W (3.30mm x 1.35mm)
- Height:
- 0.022" (0.55mm)
| Image |  |
| Part Number | IP4252CZ16-8-TTL,1 |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Package/Case | 16-UFDFN Exposed Pad |
| Packaging | Tape & Reel (TR) |
| Product Status | Last Time Buy |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 8 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 12dB @ 800MHz ~ 3GHz |
| Resistance - Channel (Ohms) | 40 |
| Current | - |
| Values | R = 40Ohms, C = 12pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | LAN, WAN |
| Voltage - Rated | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.130" L x 0.053" W (3.30mm x 1.35mm) |
| Height | 0.022" (0.55mm) |
