TDK Corporation TPX255850MT-7013A3
- Part No.:
- TPX255850MT-7013A3
- Manufacturer:
- TDK Corporation
- Category:
- RF Multiplexers
- Package:
- 1008 (2520 Metric), 9 PC Pad
- Datasheet:
-
TPX255850MT-7013A3.pdf
- Description:
- RF TRIPLEXER 1008 9 PC PAD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TPX255850MT-7013A3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- TPX
- Package/Case:
- 1008 (2520 Metric), 9 PC Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Triplexer
- Frequency Bands (Low / High):
- -
- Low Band Attenuation (min / max dB):
- 13.00dB / 17.00dB
- High Band Attenuation (min / max dB):
- -
- Return Loss (Low Band / High Band):
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount

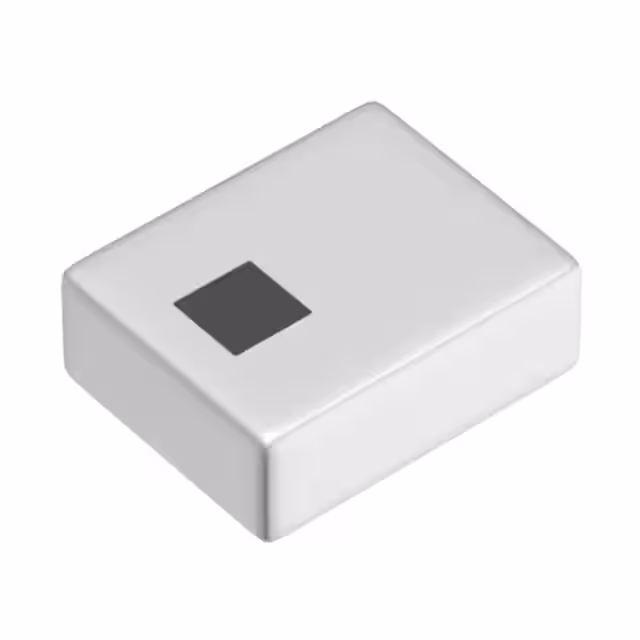

| Image |  |
 |
| Part Number | TPX255850MT-7013A3 | TPX255850MT-7025A1 |
| Manufacturer | TDK Corporation | TDK Corporation |
| Series | TPX | TPX |
| Package/Case | 1008 (2520 Metric), 9 PC Pad | 1008 (2520 Metric), 9 PC Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Type | Triplexer | Triplexer |
| Frequency Bands (Low / High) | - | 1.447GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz |
| Low Band Attenuation (min / max dB) | 13.00dB / 17.00dB | 30.00dB / 33.60dB |
| High Band Attenuation (min / max dB) | - | 20.00dB / 23.80dB |
| Return Loss (Low Band / High Band) | - | 10.03dB / 8.01dB |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Surface Mount | Surface Mount |
