TDK Corporation DPX202700DT-4062A1
- Part No.:
- DPX202700DT-4062A1
- Manufacturer:
- TDK Corporation
- Category:
- RF Multiplexers
- Package:
- 0805 (2012 Metric), 6 PC Pad
- Datasheet:
-
DPX202700DT-4062A1.pdf
- Description:
- RF DIPLEXER 829MHZ/2.3GHZ 0805
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DPX202700DT-4062A1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- DPX
- Package/Case:
- 0805 (2012 Metric), 6 PC Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Diplexer
- Frequency Bands (Low / High):
- 698MHz ~ 960MHz / 1.9GHz ~ 2.7GHz
- Low Band Attenuation (min / max dB):
- 25.00dB / 30.00dB
- High Band Attenuation (min / max dB):
- 30.00dB / 39.00dB
- Return Loss (Low Band / High Band):
- 26.0dB / 15.0dB
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
| Image |  |
 |
|

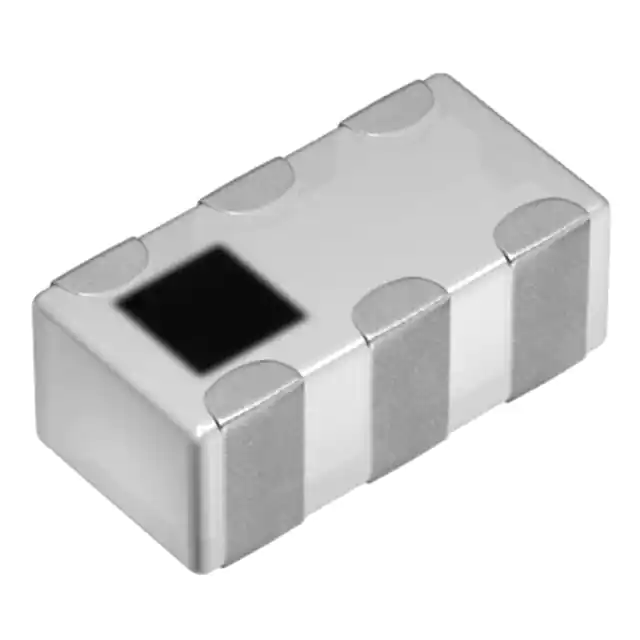

| Part Number | DPX202700DT-4062A1 | DPX202700DT-4162A1 | DPX202700DT-4035B5 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation |
| Series | DPX | DPX | DPX |
| Package/Case | 0805 (2012 Metric), 6 PC Pad | 0805 (2012 Metric), 6 PC Pad | 0805 (2012 Metric), 6 PC Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active |
| Type | Diplexer | Diplexer | Diplexer |
| Frequency Bands (Low / High) | 698MHz ~ 960MHz / 1.9GHz ~ 2.7GHz | 698MHz ~ 960MHz / 1.71GHz ~ 2.7GHz | 698MHz ~ 1.62GHz / 1.92GHz ~ 2.7GHz |
| Low Band Attenuation (min / max dB) | 25.00dB / 30.00dB | 30.00dB / 39.10dB | 10.00dB / 22.00dB |
| High Band Attenuation (min / max dB) | 30.00dB / 39.00dB | 25.00dB / 29.70dB | 10.00dB / 30.00dB |
| Return Loss (Low Band / High Band) | 26.0dB / 15.0dB | 10.03dB / 10.03dB | 10.0dB / 18.0dB |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
