Taoglas Limited TL.10.1HH11
- Part No.:
- TL.10.1HH11
- Manufacturer:
- Taoglas Limited
- Category:
- RF Antennas
- Package:
- Datasheet:
-
TL.10.1HH11.pdf
- Description:
- RF ANT 700MHZ/850MHZ DOME NMO ML
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TL.10.1HH11 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Taoglas Limited
- Series:
- Shockwave
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- Cellular, Navigation, WiFi
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz
- Frequency Range:
- 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz
- Antenna Type:
- Dome
- Number of Bands:
- 8
- VSWR:
- -
- Return Loss:
- -
- Gain:
- -1.7dBi, -0.9dBi, 0.8dBi, 1.3dBi, 1.3dBi, 1.7dBi, 3.5dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- NMO Male
- Ingress Protection:
- IP67, IP69K
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Base Mount
- Height (Max):
- 3.343" (84.90mm)
- Applications:
- CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi
| Image |  |
 |
 |
 |
 |

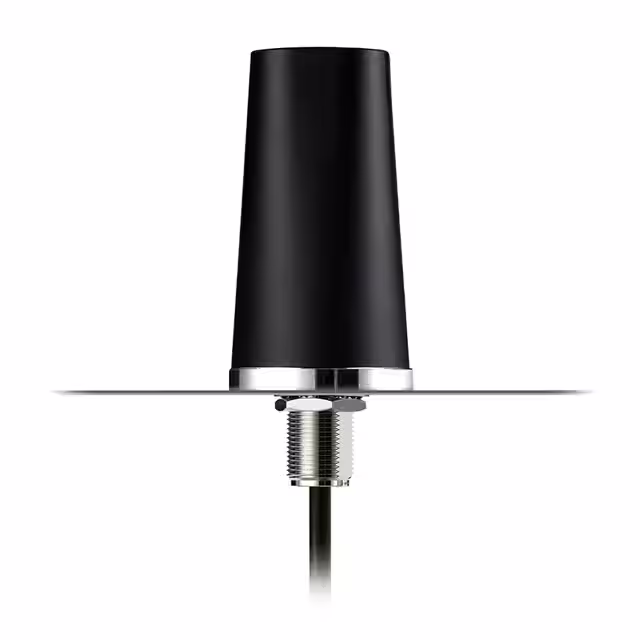

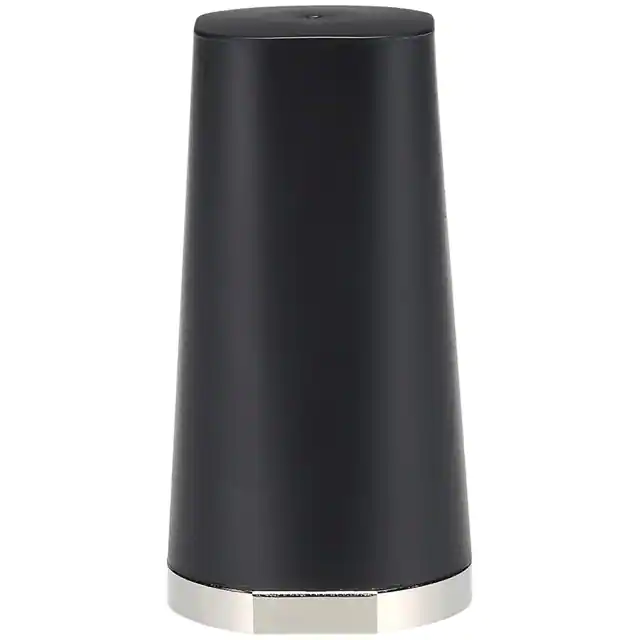

| Part Number | TL.10.1HH11 | TLS.01.1F21 | TLS.01.305111 | TLS.01.1F11 | TLS.90.205111 |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| Series | Shockwave | Shockwave | Shockwave | Shockwave | - |
| Packaging | Bag | Bag | Bag | Bag | Box |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Cellular, Navigation, WiFi | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | General ISM |
| Frequency Group | Wide Band | Wide Band | Wide Band | Wide Band | UHF (300MHz ~ 1GHz) |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz | 829MHz, 1.575GHz, 2.2GHz | 829MHz, 1.575GHz, 2.2GHz | 829MHz, 1.575GHz, 2.2GHz | 868MHz, 915MHz |
| Frequency Range | 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | 850MHz ~ 880MHz, 902MHz ~ 928MHz |
| Antenna Type | Dome | Whip, Straight | Whip, Straight | Whip, Straight | Dome |
| Number of Bands | 8 | 3 | 3 | 3 | 2 |
| VSWR | - | - | - | - | - |
| Return Loss | - | -10dB | -10dB | - | -20dB |
| Gain | -1.7dBi, -0.9dBi, 0.8dBi, 1.3dBi, 1.3dBi, 1.7dBi, 3.5dBi | 4.7dB | 4.6dB | 4dBi | 1.67dBi, 1.58dBi, 1.57dBi, 1.61dBi, 1.9dBi, 2.46dBi |
| Power - Max | - | 100 W | 100 W | 100 W | 100 W |
| Features | - | - | - | - | Cable - 2m |
| Termination | NMO Male | N Type Female | SMA Male | N Type Male | SMA Male |
| Ingress Protection | IP67, IP69K | IP69K | IP69K | IP67 | IP67, IP69K |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Base Mount | Base Mount | Panel Mount | Base Mount | Panel Mount |
| Height (Max) | 3.343" (84.90mm) | 3.134" (79.60mm) | 3.150" (80.00mm) | 3.134" (79.60mm) | 3.128" (79.45mm) |
| Applications | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi | GPS, LTE | GPS, LTE | GPS, LTE | ISM |
