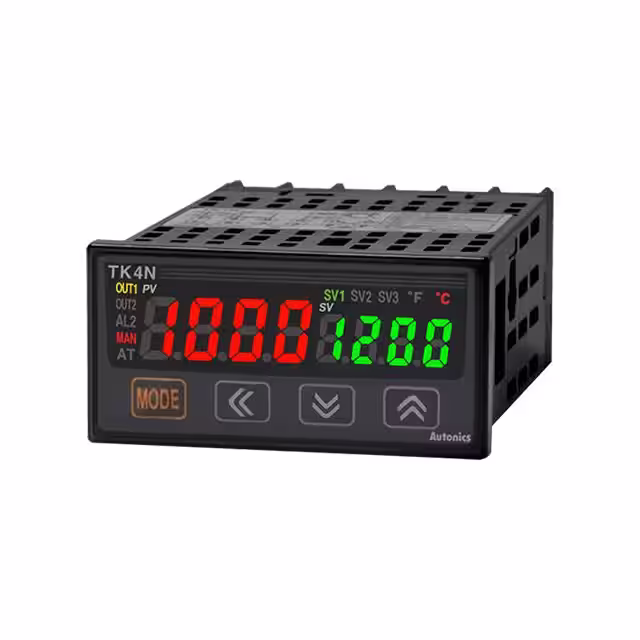

Autonics TK4N-14RN

Name: TK4N-14RN
Brand: Autonics
SKU: TK4N-14RN
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: TK4N-14RN

Manufacturer:: Autonics

Category:: Process, Temperature

Package:

Datasheet:: TK4N-14RN.pdf

Description:: TEMP CONTROL RELAY 100-240VAC

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

TK4N-14RN Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Autonics

Series:: TK

Packaging:: Box

Product Status:: Active

Type:: Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U)

Input Range:: -1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV

Output Type:: Relay

Control Method:: On/Off, Proportional (PID)

Communications:: Option Cards Available

Number of Characters Per Row:: 4, 4

Display Type:: LED - Dual Color Characters

Display Characters - Height:: 0.283" (7.20mm), 0.228" (5.80mm)

Voltage - Supply:: 100 ~ 240VAC

Panel Cutout Dimensions:: Rectangular - 45.00mm x 22.20mm

Mounting Type:: Panel Mount

Termination Style:: Screw Terminal

Ingress Protection:: IP50/IP65 - Dust Tight, Water Resistant

Features:: Limit Function

Part Number	TK4N-14RN	TK4N-14SN	TK4N-14CC	TK4N-14RR	TK4N-14SR
Manufacturer	Autonics	Autonics	Autonics	Autonics	Autonics
Series	TK	TK	TK	TK	TK
Packaging	Box	Box	Box	Box	Box
Product Status	Active	Active	Active	Active	Active
Type	Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U)	Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U)	Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U)	Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U)	Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U)
Input Range	-1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV	-1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV	-1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV	-1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV	-1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV
Output Type	Relay	Voltage (External SSR)	Voltage (External SSR) (2)	Relay (2)	Relay, Voltage (External SSR)
Control Method	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)	On/Off, Proportional (PID)
Communications	Option Cards Available	Option Cards Available	Option Cards Available	Option Cards Available	Option Cards Available
Number of Characters Per Row	4, 4	4, 4	4, 4	4, 4	4, 4
Display Type	LED - Dual Color Characters	LED - Dual Color Characters	LED - Dual Color Characters	LED - Dual Color Characters	LED - Dual Color Characters
Display Characters - Height	0.283" (7.20mm), 0.228" (5.80mm)	0.283" (7.20mm), 0.228" (5.80mm)	0.283" (7.20mm), 0.228" (5.80mm)	0.283" (7.20mm), 0.228" (5.80mm)	0.283" (7.20mm), 0.228" (5.80mm)
Voltage - Supply	100 ~ 240VAC	100 ~ 240VAC	100 ~ 240VAC	100 ~ 240VAC	100 ~ 240VAC
Panel Cutout Dimensions	Rectangular - 45.00mm x 22.20mm	Rectangular - 45.00mm x 22.20mm	Rectangular - 45.00mm x 22.20mm	Rectangular - 45.00mm x 22.20mm	Rectangular - 45.00mm x 22.20mm
Mounting Type	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount
Termination Style	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal
Ingress Protection	IP50/IP65 - Dust Tight, Water Resistant	IP50/IP65 - Dust Tight, Water Resistant	IP50/IP65 - Dust Tight, Water Resistant	IP50/IP65 - Dust Tight, Water Resistant	IP50/IP65 - Dust Tight, Water Resistant
Features	Limit Function	Limit Function	Limit Function	Limit Function	Limit Function
